Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 183

Communicate with Devices on a DeviceNet Network Appendix A

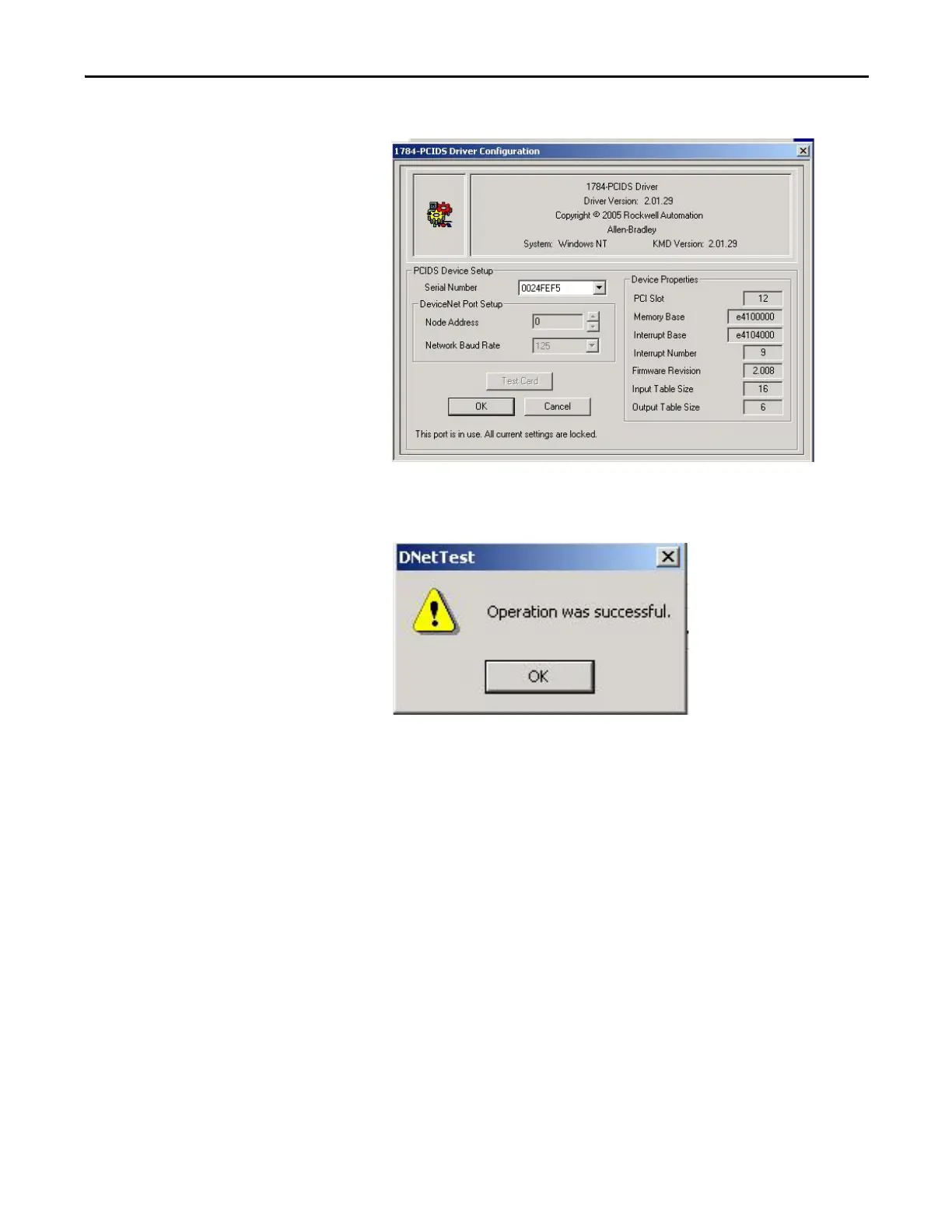

The 1784-PCIDS Drive Configuration dialog box appears.

3. Click OK.

The DNetTest dialog box appears indicating the operation was successful.

4. Click OK.
