170 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix A Communicate with Devices on a DeviceNet Network

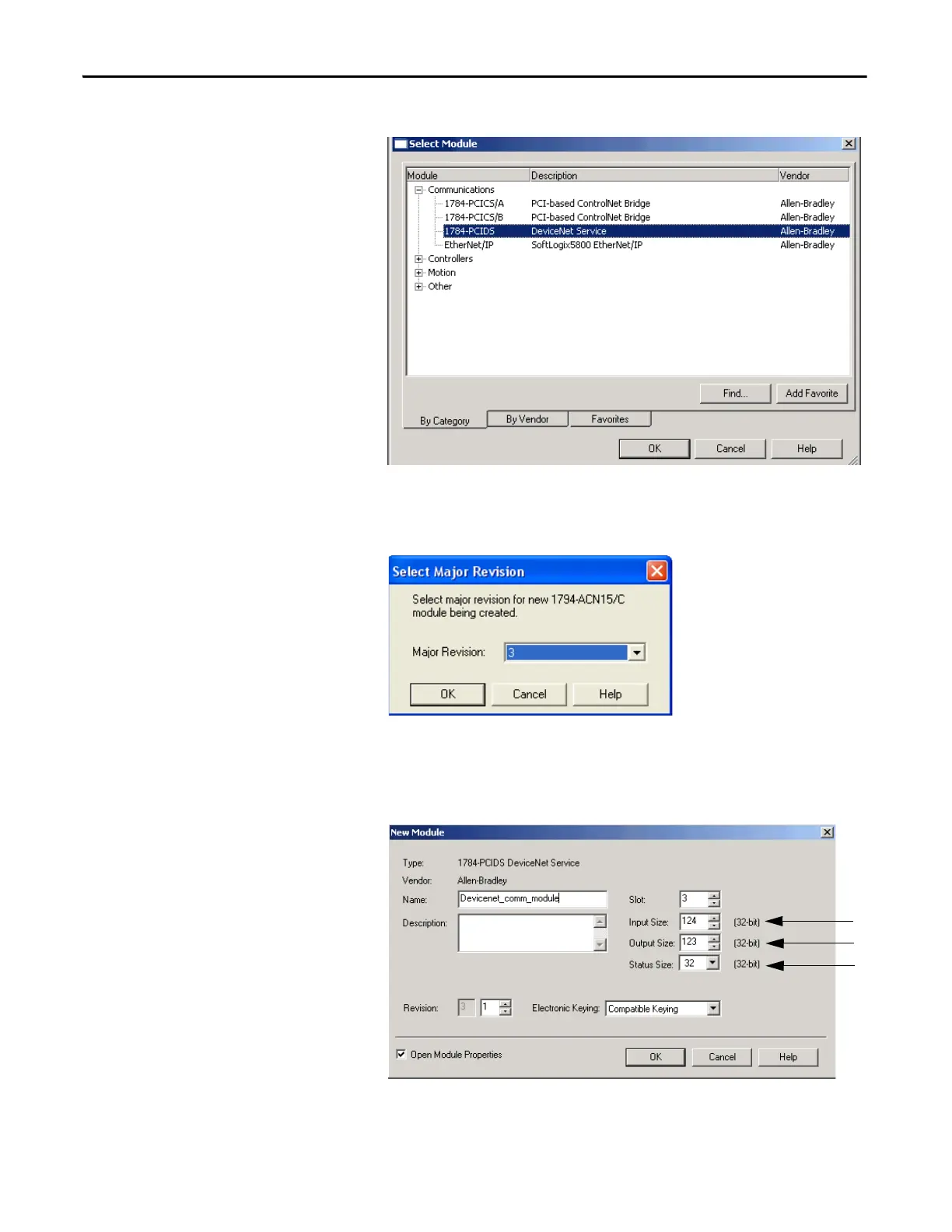

The Select Module dialog box appears.

3. Click OK.

The Select Major Revision dialog box appears.

4. Choose the Major Revision number for this module.

5. Click OK.

The New Module dialog box appears.

Default Chapter5
