20 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015
Chapter 1 SoftLogix 5800 System
5. Click Configure.

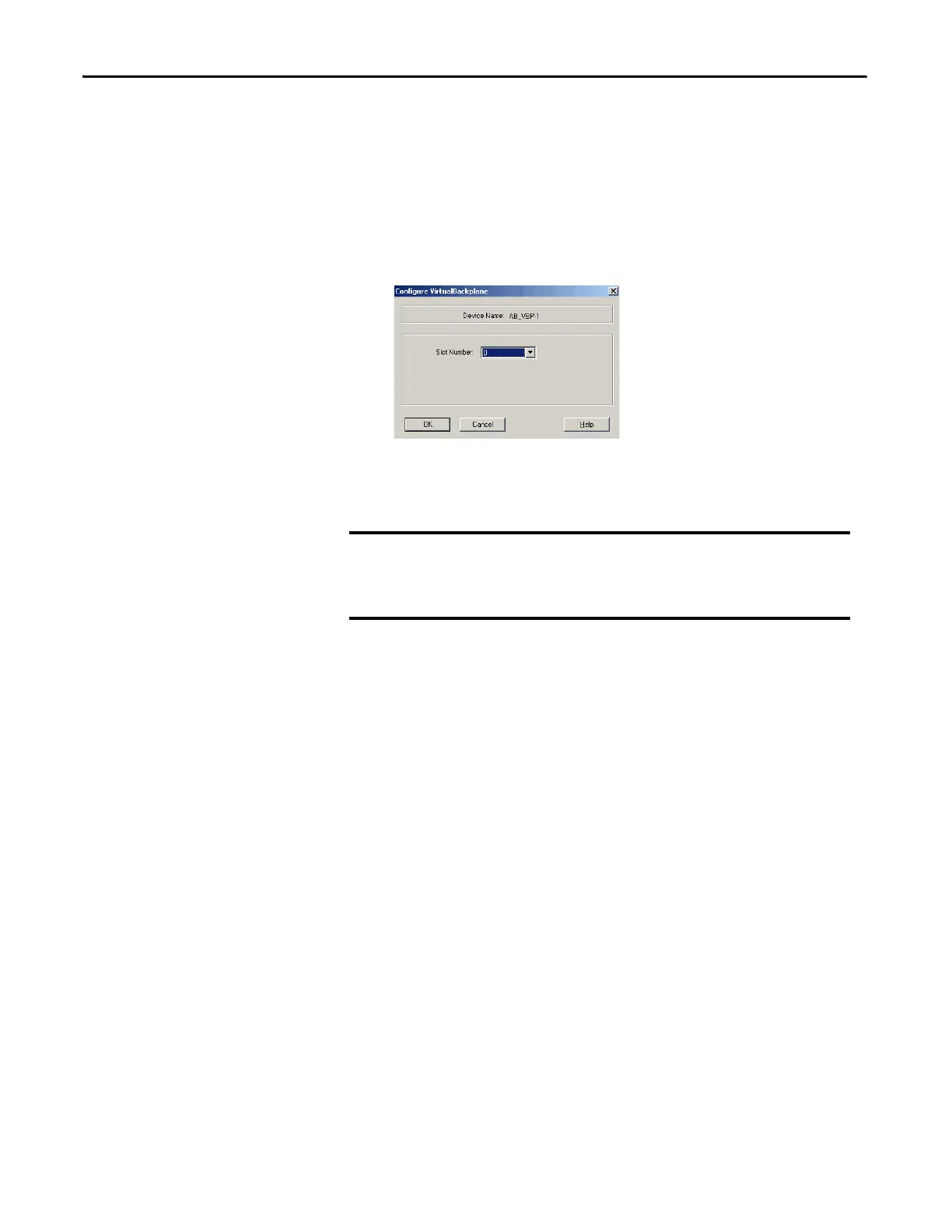

The Configure VirtualBackplane dialog box appears. The Logix Designer
application, version 23.00.00, lets you insert a valid SoftLogix module into
slot 0.
The RSLinx software module defaults in Slot 0 if not set up for another
slot position.
6. From the Slot Number pull-down menu, choose a slot number.
7. Click OK and then click Close.
Even if you remotely program the controller over a ControlNet or Ethernet
link, you must add the virtual-backplane driver via RSLinx software. If you
do not, the SoftLogix application will not be restored when you restart the
computer.
