Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 33

What is the SoftLogix System? Chapter 2

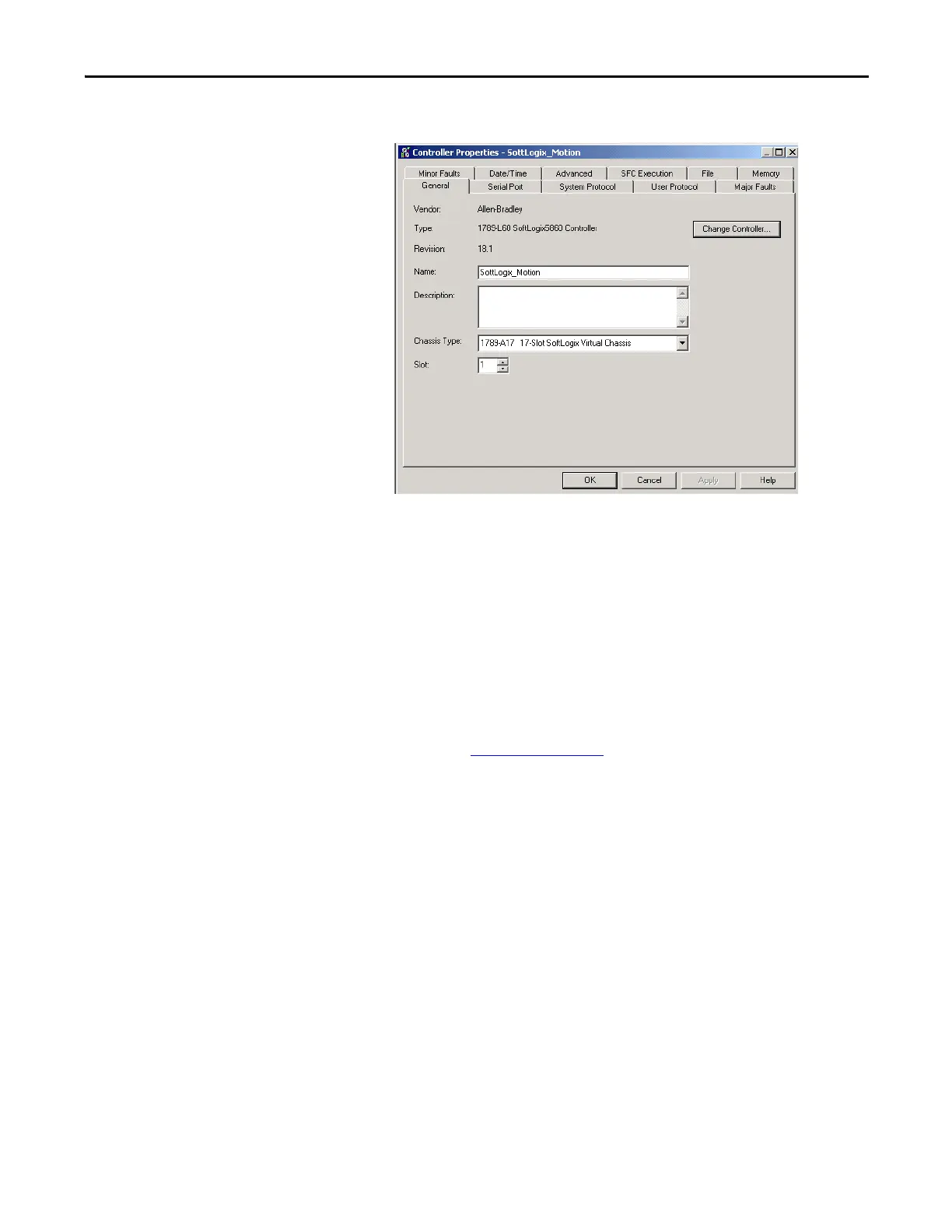

The Controller Properties dialog box appears.

2. In the Controller Properties dialog box, set controller configuration

information for the open project, and when online—for the attached

controller.

The tabs that appear are particular to the type of controller you have

selected.

3. Click OK when you are done configuring each tab for your controller.

For a complete description of each tab and the appropriate configuration

settings for your SoftLogix controller, see the SERCOS and Analog

Motion Configuration and Startup User Manual,

publication MOTION-UM001.
