96 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 5 Configure and Use Simulated I/O

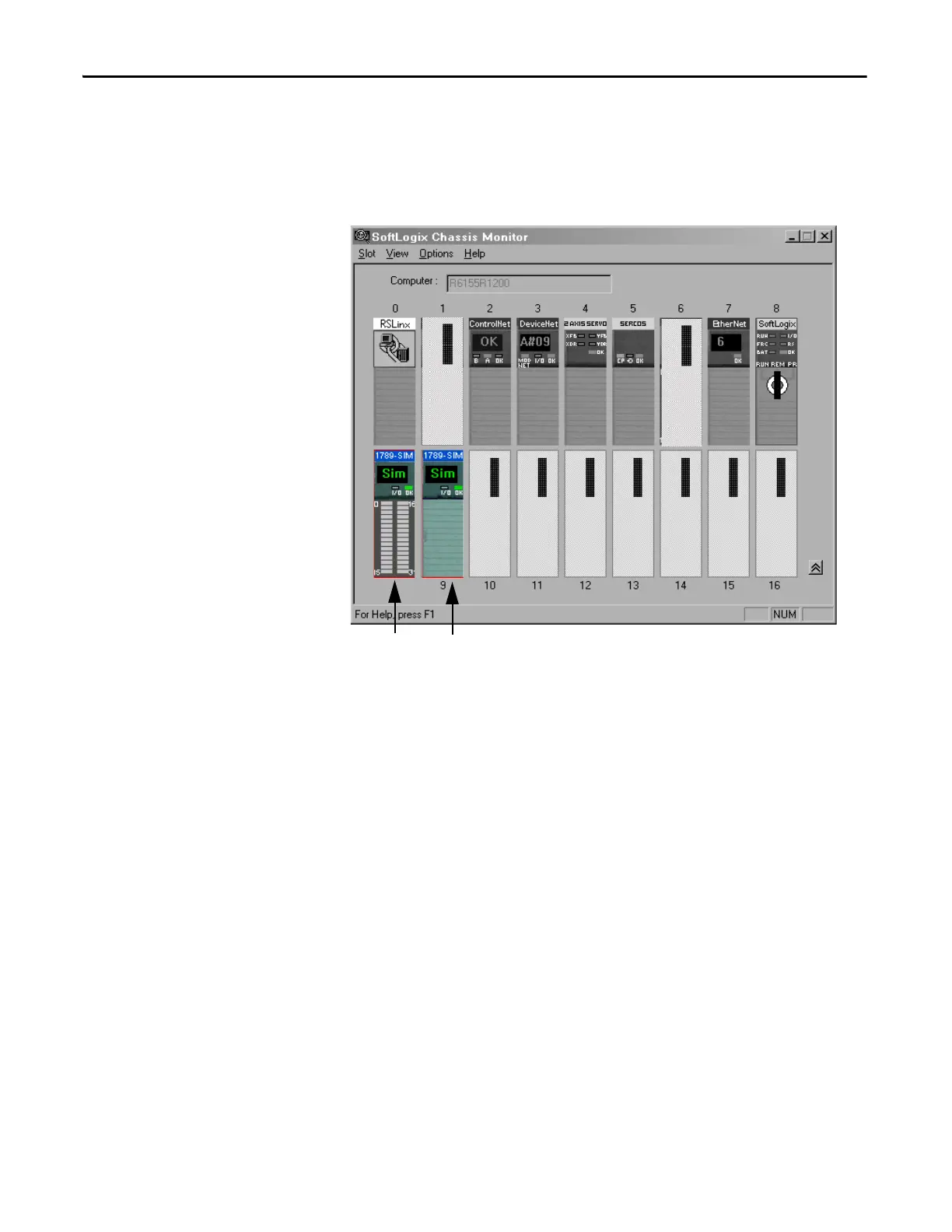

The chassis monitor shows the 1789-SIM module as a virtual module in the

SoftLogix Chassis Monitor. Note that the door of the 1789-SIM module opens

to display the output bits.

Left-click to open or close the module door.

The module door is open. The module door is closed.
