Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 109

Execute External Routines Chapter 6

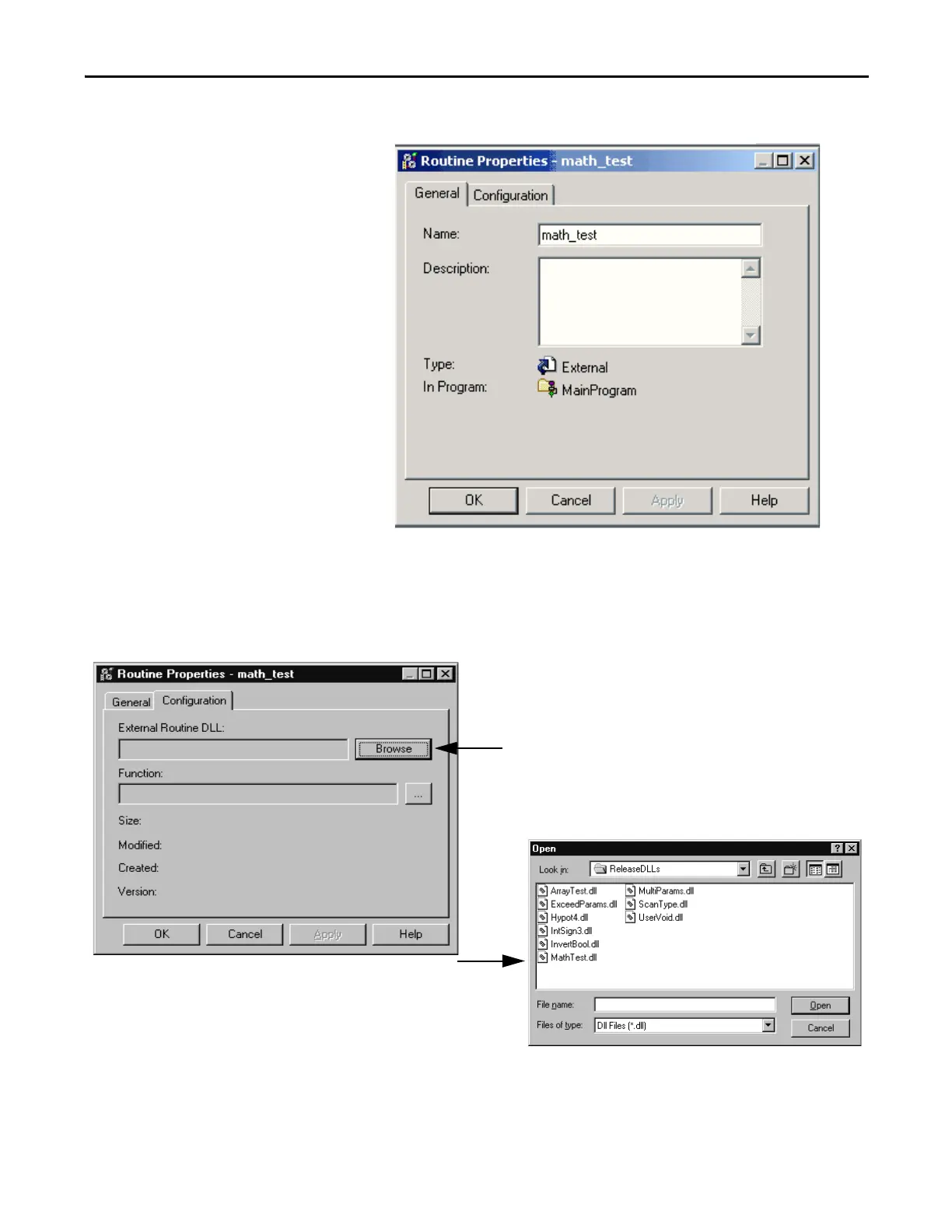

The Routine Properties dialog box appears.

6. On the General tab, verify that the information for the external routine is

correct and that it appears this way in the Controller Organizer.

7. On the Configuration tab, click Browse to select the DLL file that

contains the function you want to execute.

8. On the Configuration tab, click Function and choose the DLL you want

to execute.
