Appendix A Communicate with Devices on a DeviceNet Network

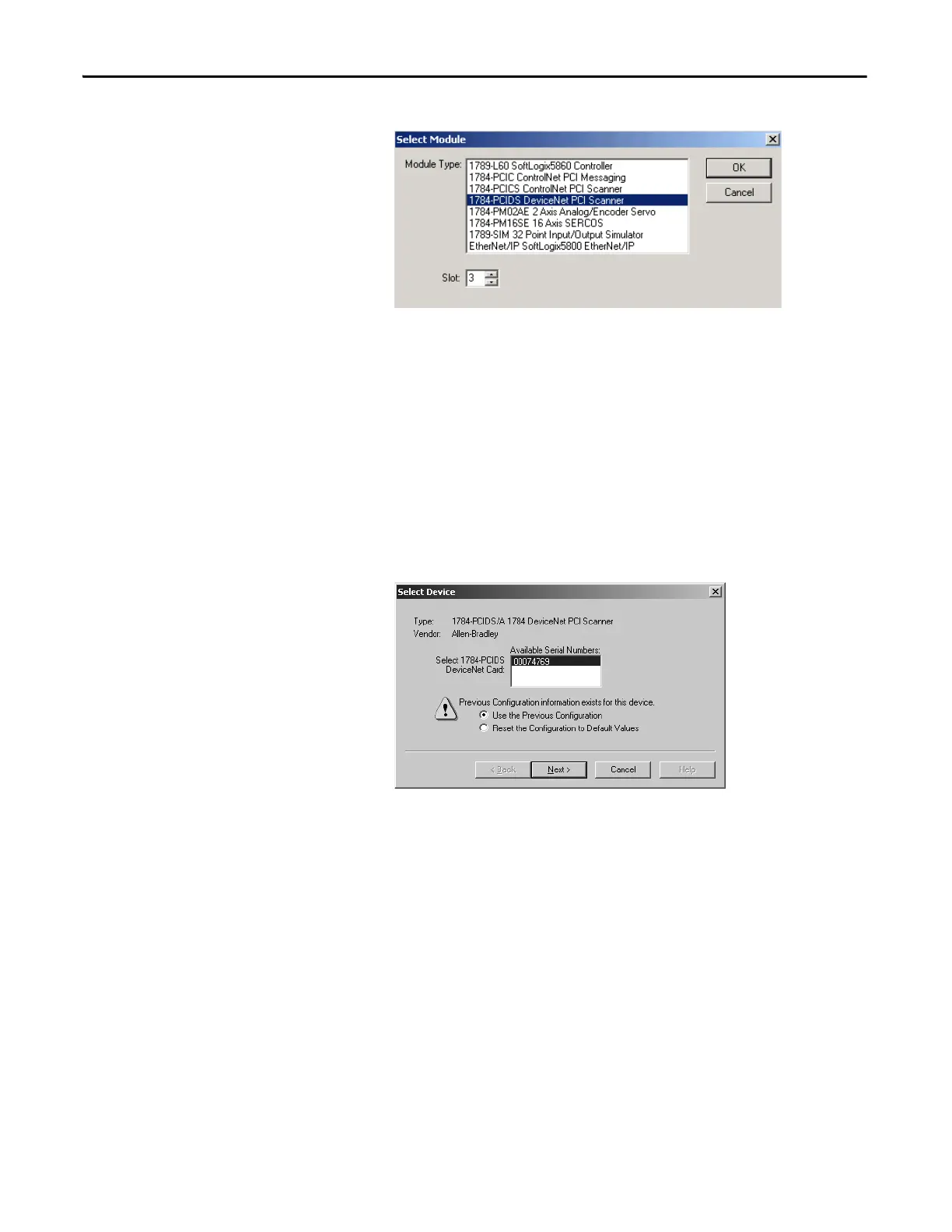

3. In the Select Module dialog box, select the 1784-PCIDS card.
4. Enter the backplane slot number.
For this example, we chose 3 as the slot number.
5. Click OK.
6. When the Select Device dialog box opens, choose the serial number of the
1784-PCIDS card that you want.
If you previously configured the 1784-PCIDS card that you selected by
serial number, the Chassis Monitor remembers the configuration from the
last time you used the card (whether in the same or different slot.)
7. Click Next.
8. Specify configuration settings for the 1784-PCIDS card:
• Specify the node address (MAC ID) on the DeviceNet network.
• Specify the Baud Rate.
To Next Page
