178 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix A Communicate with Devices on a DeviceNet Network

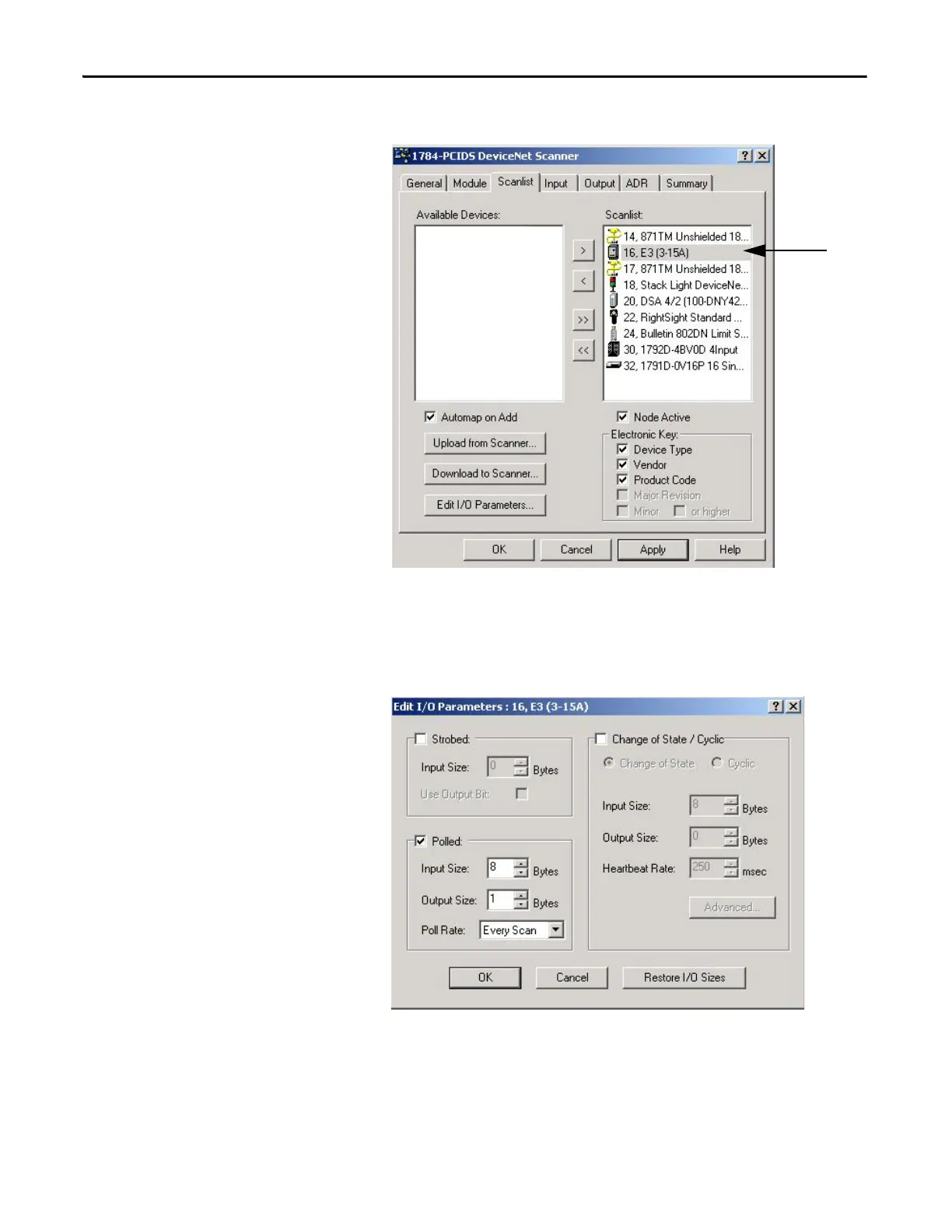

The Full Scanlist dialog box appear.

The I/O data is automatically loaded into the scanlist from the device’s

EDS file with default parameters set. If you want to change I/O Parameters

for a device, perform the following steps.

a. Click each device to enable the Edit I/O Parameters dialog box.

b. Set the parameters for each device and click OK.

Click each device

to enable Edit I/O

parameters.
