Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 199

Communicate with Devices on a ControlNet Network Appendix B

After you add the card to the chassis monitor, you can browse the network by

expanding the Virtual Backplane driver and then expanding the port on the

desired 1784-PCICS or 1784-PCIC communication card. Browsing ControlNet

through the Virtual Backplane driver provides the same functionality as the

RSLinx driver.

This example shows the 1784-PCICS card as a virtual module in the SoftLogix

Chassis Monitor in slot 2. The status indicators on the virtual monitor emulate a

1756-CNBR communication module.

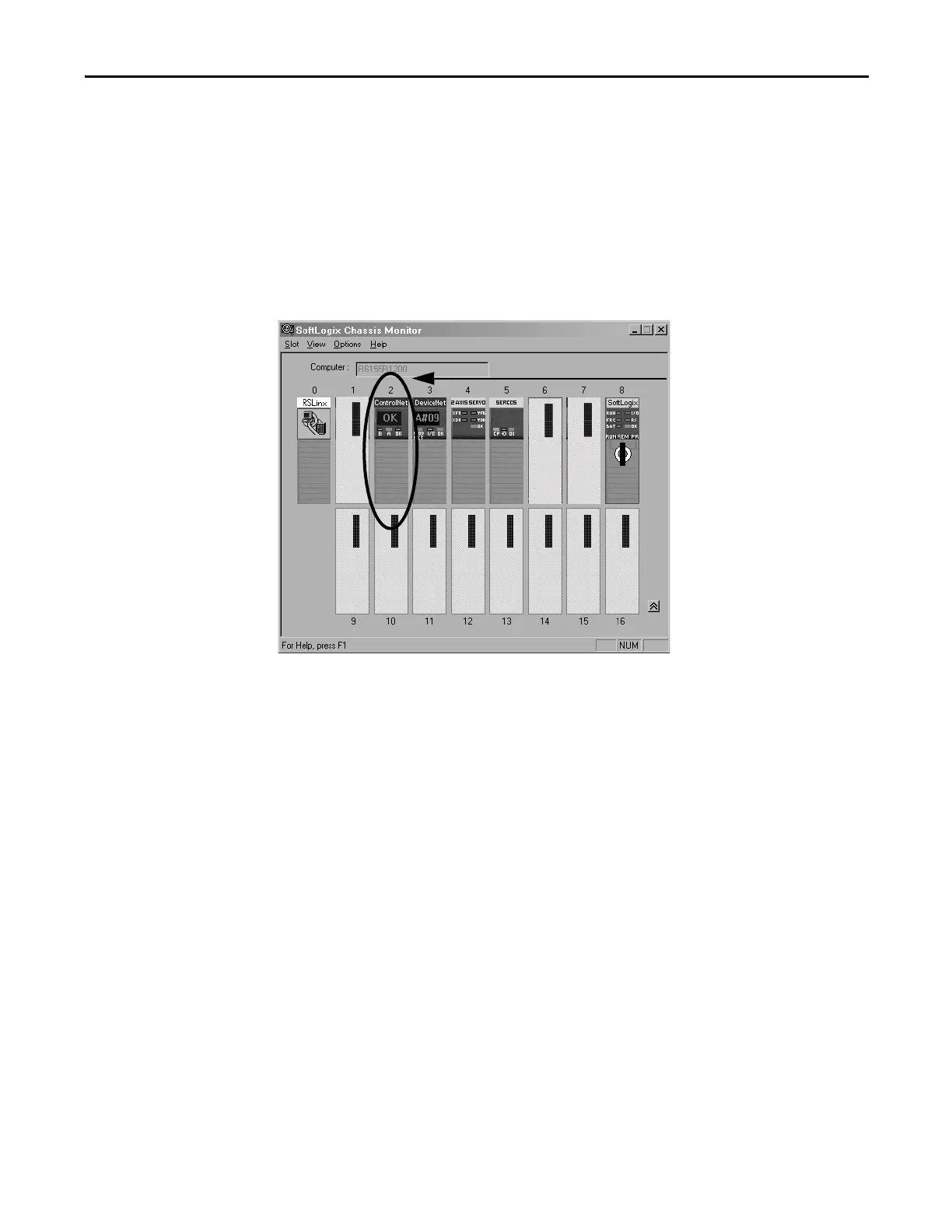

This chassis monitor has a 1784-PCICS card

installed in slot 2.
