218 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix B Communicate with Devices on a ControlNet Network

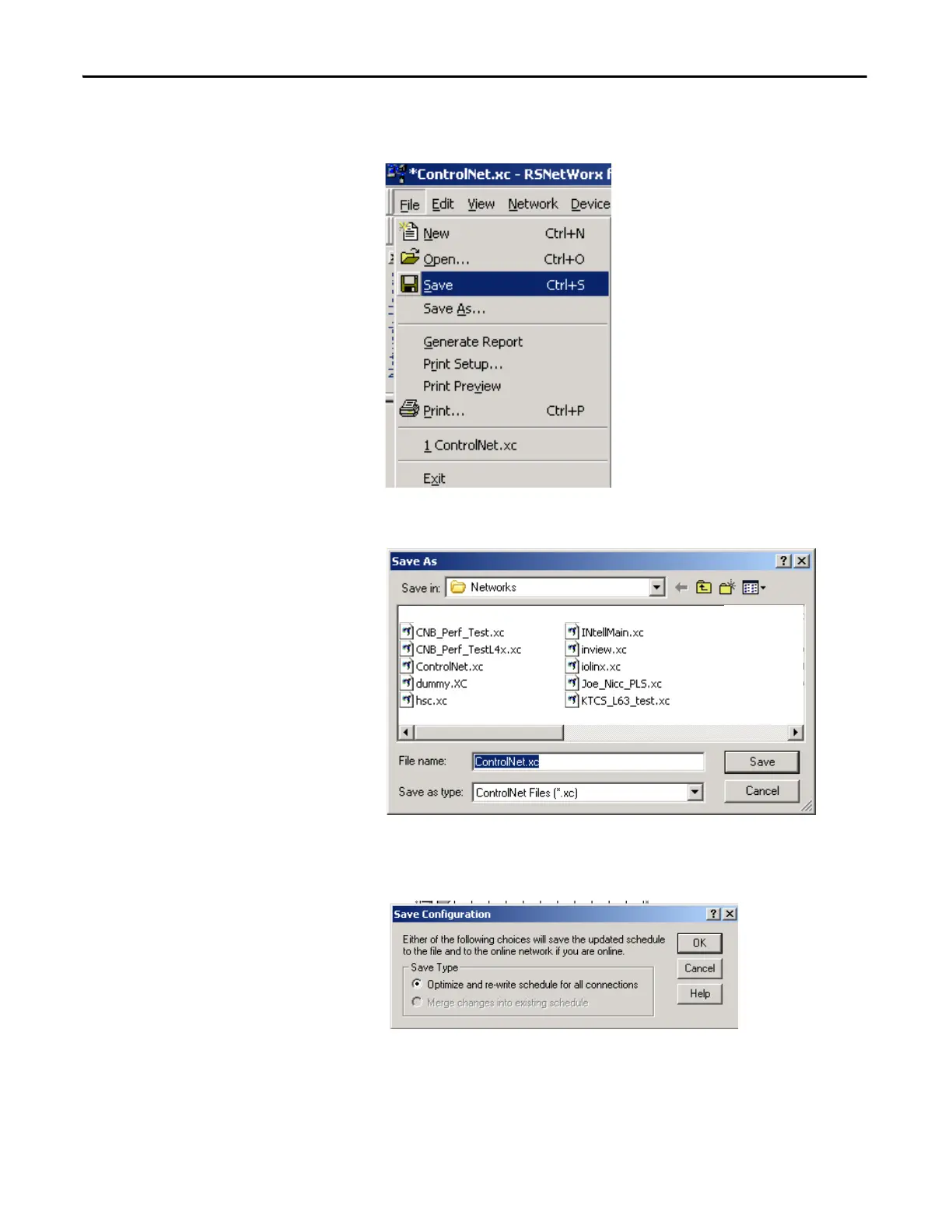

13. In RSNetWorx software, from the File menu, choose Save to save

the network.

The Save As dialog box appears.

14. Name the file and click Save.

The Save Configuration dialog box appears.

15. Click Optimize and re-write schedule for all connections.
