52 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 3 Communicate with Devices on an Ethernet Network

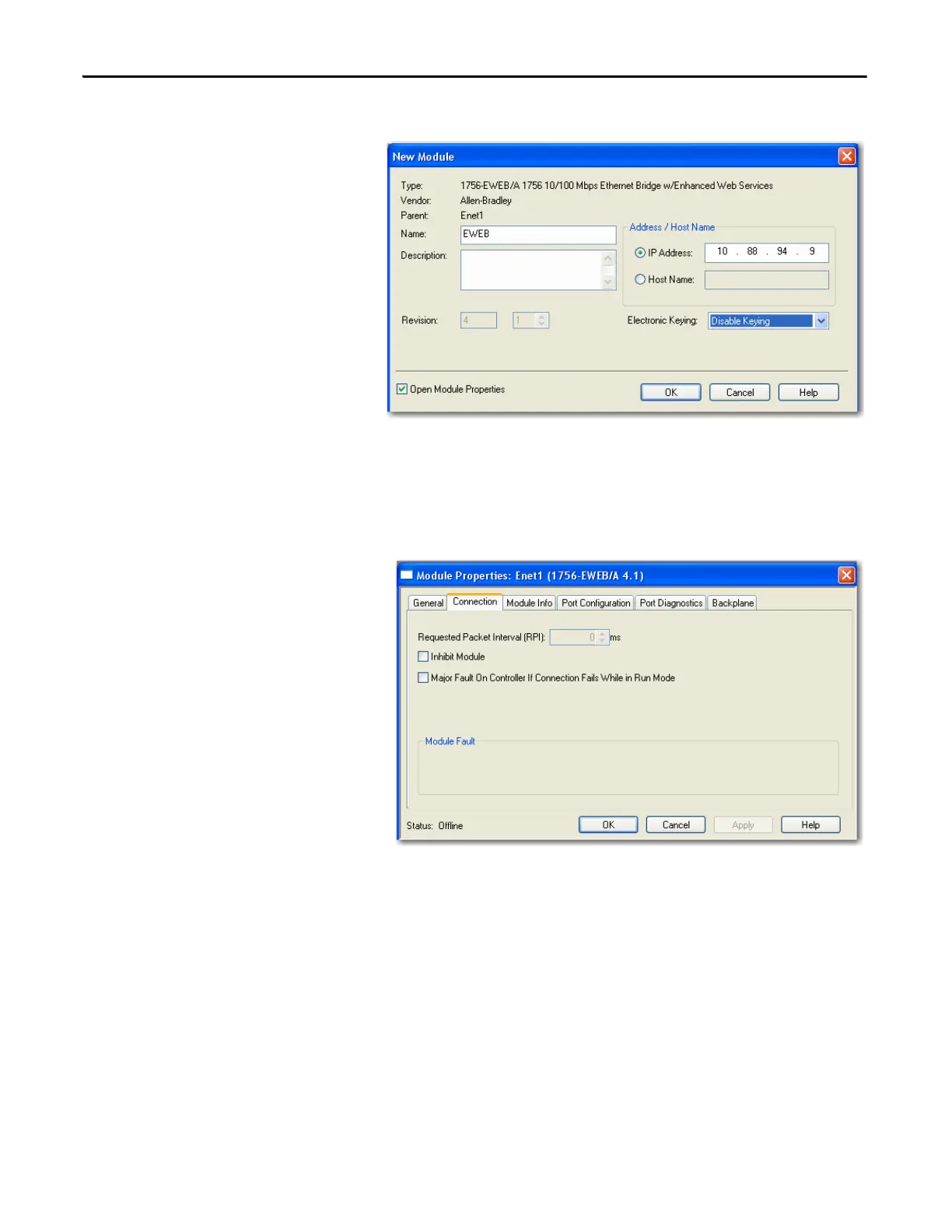

The Module Properties dialog box appears.

5. Name the module, enter the IP address, and select the

Disable Keying option.

6. Click OK.

The Module Properties dialog box appears.
