8. Operation Screens
8-30
13) Similarly, select 2 for ENVELOPE# for WAVEFORM 2 and perform settings of
SEGMENT#1 to 3. Be sure to perform from REFERENCE to SAVE for each
setting of SEGMENT.
14) The envelope setting is complete.

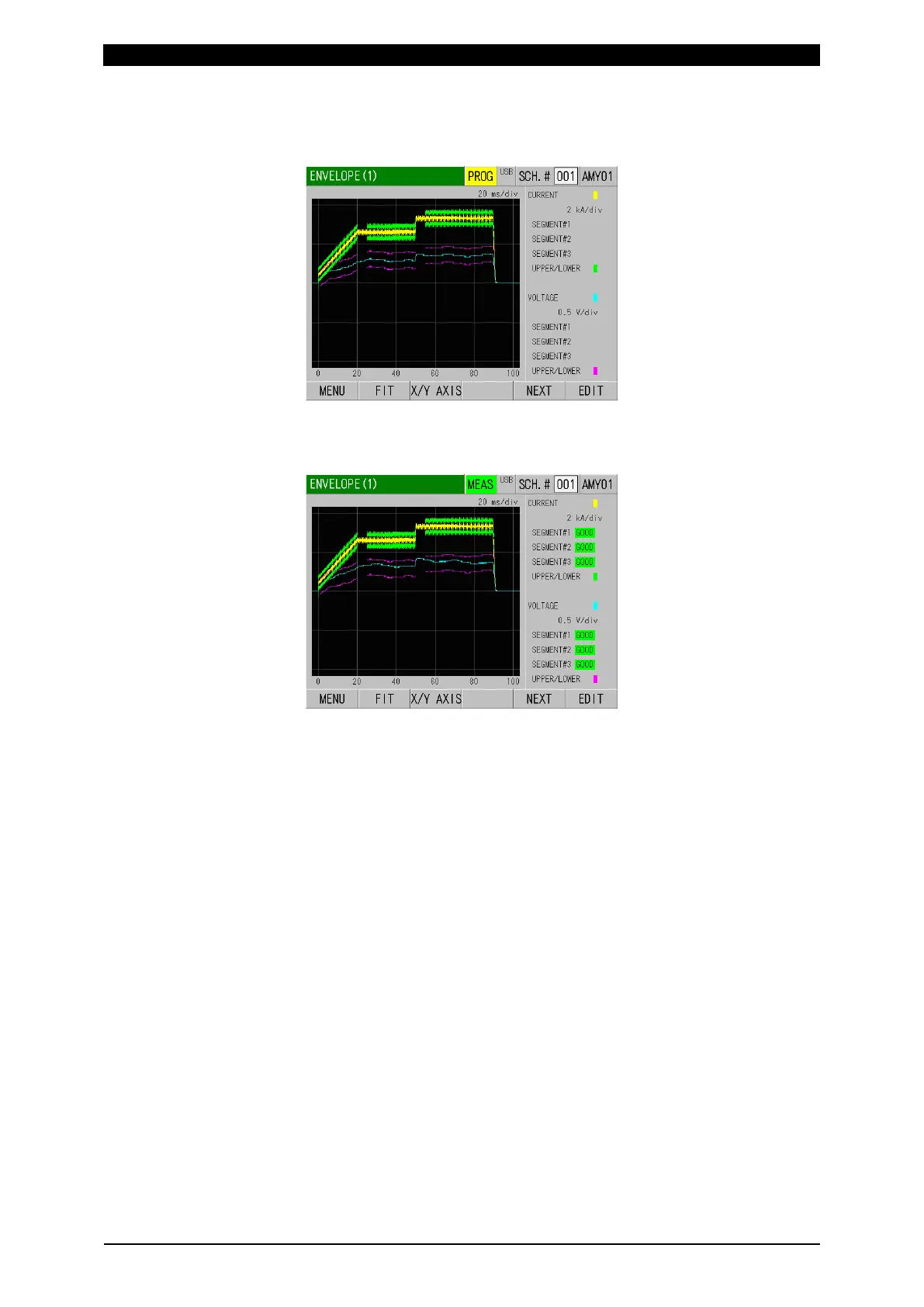

Make measurements on the ENVELOPE (1) screen and check the setting
contents by waveforms.
