(*) About interval
The interval corresponds to the number of weldings. Since it depends on the
number from the last print, the number of prints changes depending on the
OUT OF LIMIT OPERATION setting.
INTERVAL setting 1 1 3 3
OUT OF LIMIT OPERATION setting ON OFF ON OFF
1st welding OK - Print - -
2nd welding OK - Print - -
3rd welding OK - Print Print Print
4th welding OK - Print - -
5th welding NG Print Print Print -
6th welding OK - Print - Print
7th welding OK - Print - -
8th welding OK - Print Print -
(3) OUT OF LIMIT OPERATION
Select ON/OFF to specify whether to print only in the event of Upper limit error,
Lower limit error (excluding Upper/lower limit error at envelope), Overrange
error, Impulse error, or Parity error.
ON: Prints in the event of an error.
OFF: Prints irrespective of errors.
Prints at intervals set for INTERVAL when normal. Prints at the time of an error
occurrence when abnormal. The setting of error print is valid only when
MEASUREMENT, WAVEFORM, CURR ALL CYCLE, or FORCE ALL CYCLE
is selected for ITEM.

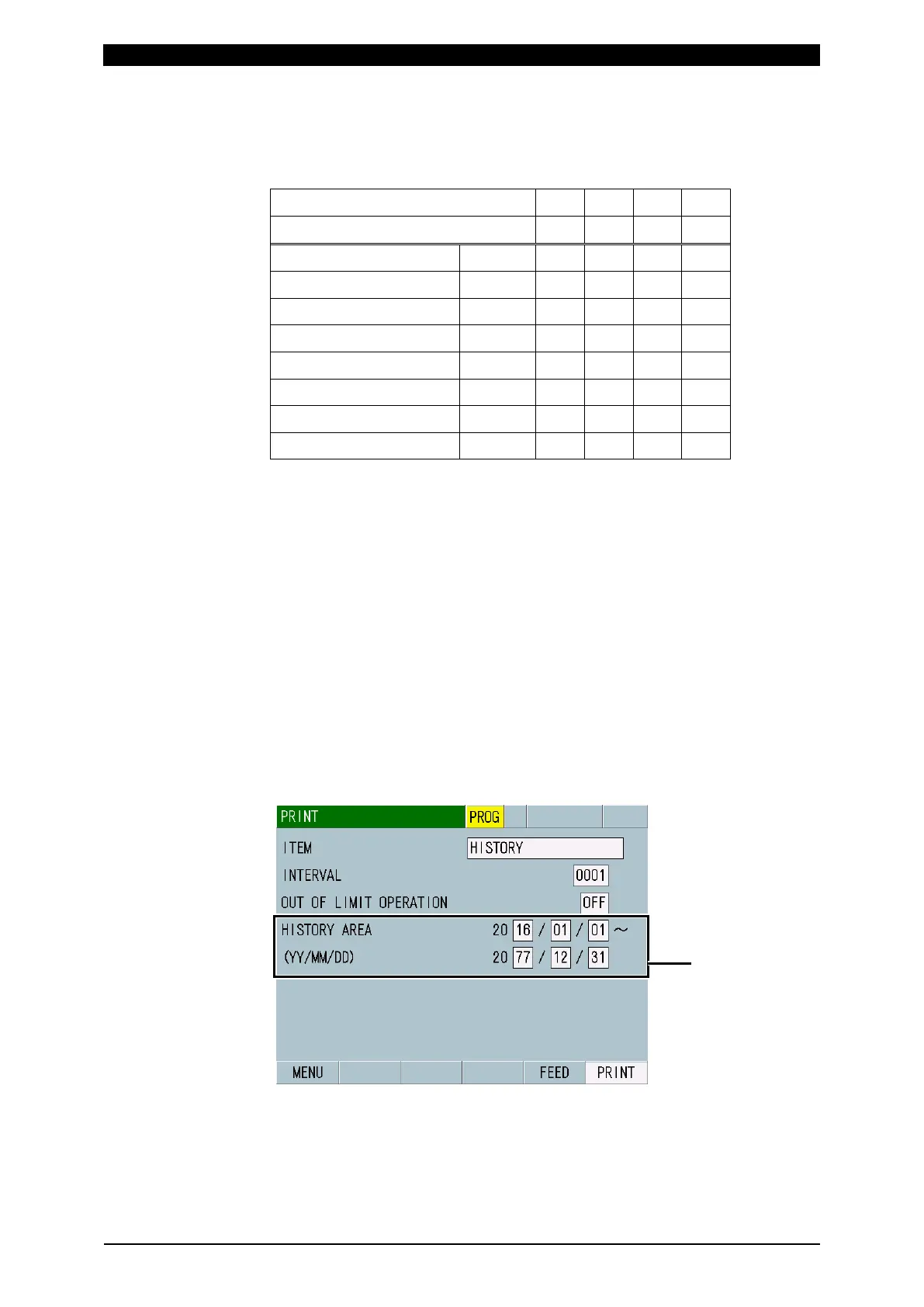

(4) HISTORY AREA
Shown when you have selected HISTORY or HISTORY OUT OF LIM for ITEM.
Set a print range with year, month and day.
(Note) The start date should be before the end date.
