User Manual AMETEK Programmable Power
RS Series 218
9.11.3 REGENERATE Control Screen

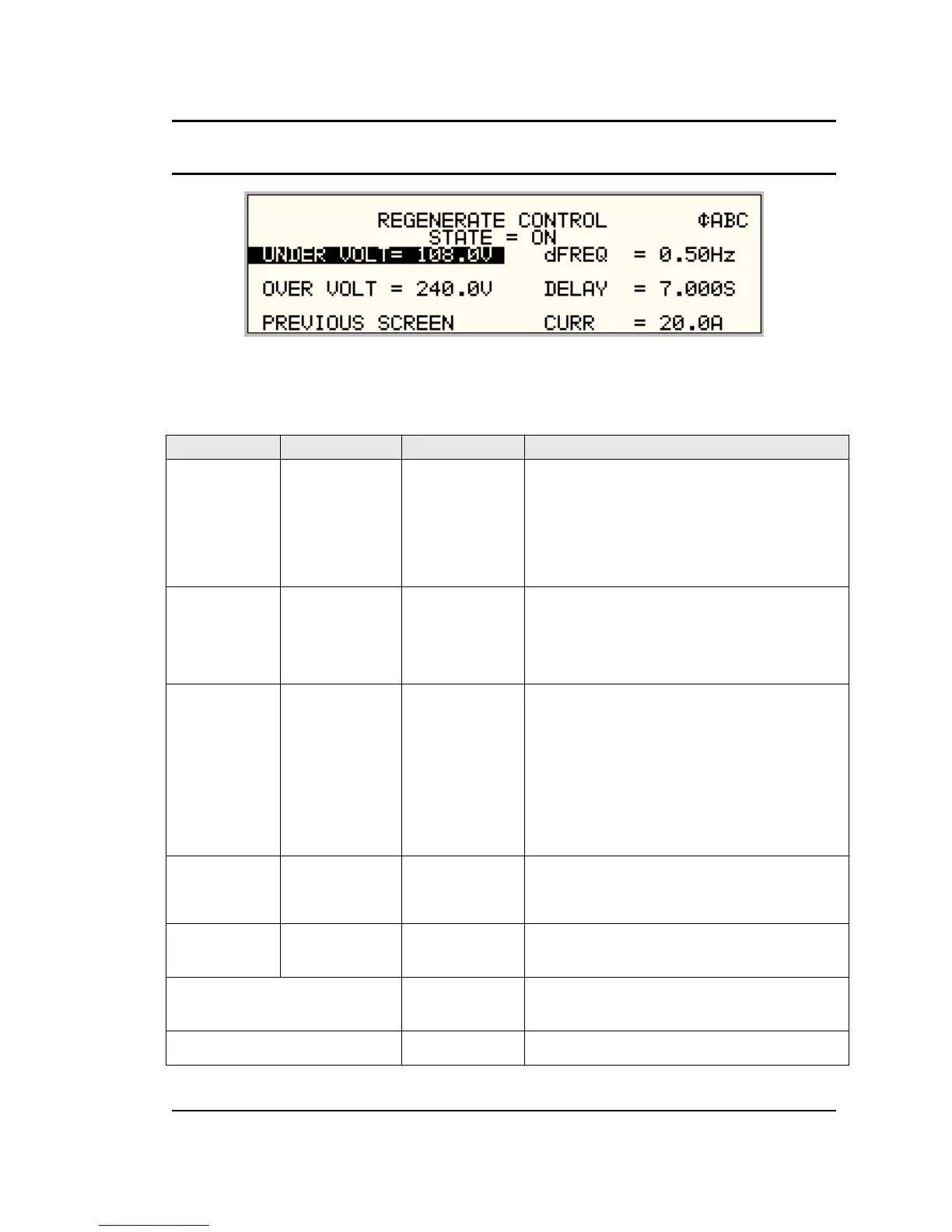

Figure 9-46: REGENERATE CONTROL screen
The –SNK option mode of operation is controlled by parameters set in the REGENERATE
CONTROL SCREEN. Access to this screen is from the APPLICATIONS SETUP 2 screen by
selecting the SNK entry and pressing the ENTER key.
The following parameters are available to be programmed by the user.
Field Description Setting Range Purpose
STATE Enable the
Regenerate
Function
ON / OFF This field allows the regenerative mode of operation to
be enabled. The regenerative state can only be
enabled if the output relay is open and the frequency
is set between 40Hz and 80Hz. If the state is OFF, the
RS operates like a normal RS without the SNK option
installed. In normal mode, only 20% of available
current can be sunk and the RS will generate an error
31 and 32. fault.
UNDER VOLT EUT under
voltage limit
0.0 to max V
range value
Sets the EUT shut off voltage, Active only if the
dFREQ listed below is set to zero. This is the voltage
(AC or DC) at which the EUT will shut off. If set to a
value that will allow the EUT to continue operating, the
RS may be unable to limit the current being fed back
by the EUT.
OVER VOLT EUT over voltage
limit
0.0 to max V
range value
Sets the EUT over voltage limit. This is the maximum
allowable voltage (AC or DC) at which the EUT can
operate. The output voltage may be increased up to
this level if the current limit is exceeded in an effort to
keep the current below the set current limit value.
This over-voltage threshold also triggers the power
source to either change the programming frequency or
reduce the output voltage depending on the delta
frequency setting (0.0Hz to reduce the output voltage
and any delta frequency to change the programming
frequency) after the DELAY F delay is reached.
dFREQ Delta Frequency 0.0 to 6.0 Hz This setting determines the size of the frequency shift
that will be applied to the EUT after the current limit
has been exceeded. If set to 0.0 Hz, no frequency
shift will be applied.
DELAY Delay 0.25 to 5.00 sec This delay setting field is used to set the delay time for
both the Frequency shift event (Delay F) and the
Output relay open event (Delay R).
Frequency Shift
application delay
time. (Delay F)
This delay determines how long the RS waits to apply
the programmed frequency shift to the EUT after the
set current limit level has been exceeded.
Output Relay
Open delay time.
This delay determines how long the RS waits to open
the output relay after the frequency shift has been
