User Manual
AMETEK
Programmable
Power
RS Series
15
Output Parameter
RS90
RS180
RS270
RS360
RS450
RS540
Ext. Sync Mode
(not available
w
ith FC option)
Input:
Isolated TTL input for external frequency control. Requires
5V at 5 mA for logic high.
Accuracy:
Ext. Sync to phase A with fixed Ext. Sync Frequency input:
16 Hz - 100 Hz:
< 2°
100 Hz - 500 Hz:
<
3°
> 500 Hz:
<
4°
Note:
Output speci
fications app
ly below
the Current /
Voltage rating lines
shown in t
he
V/I rating chart
below.

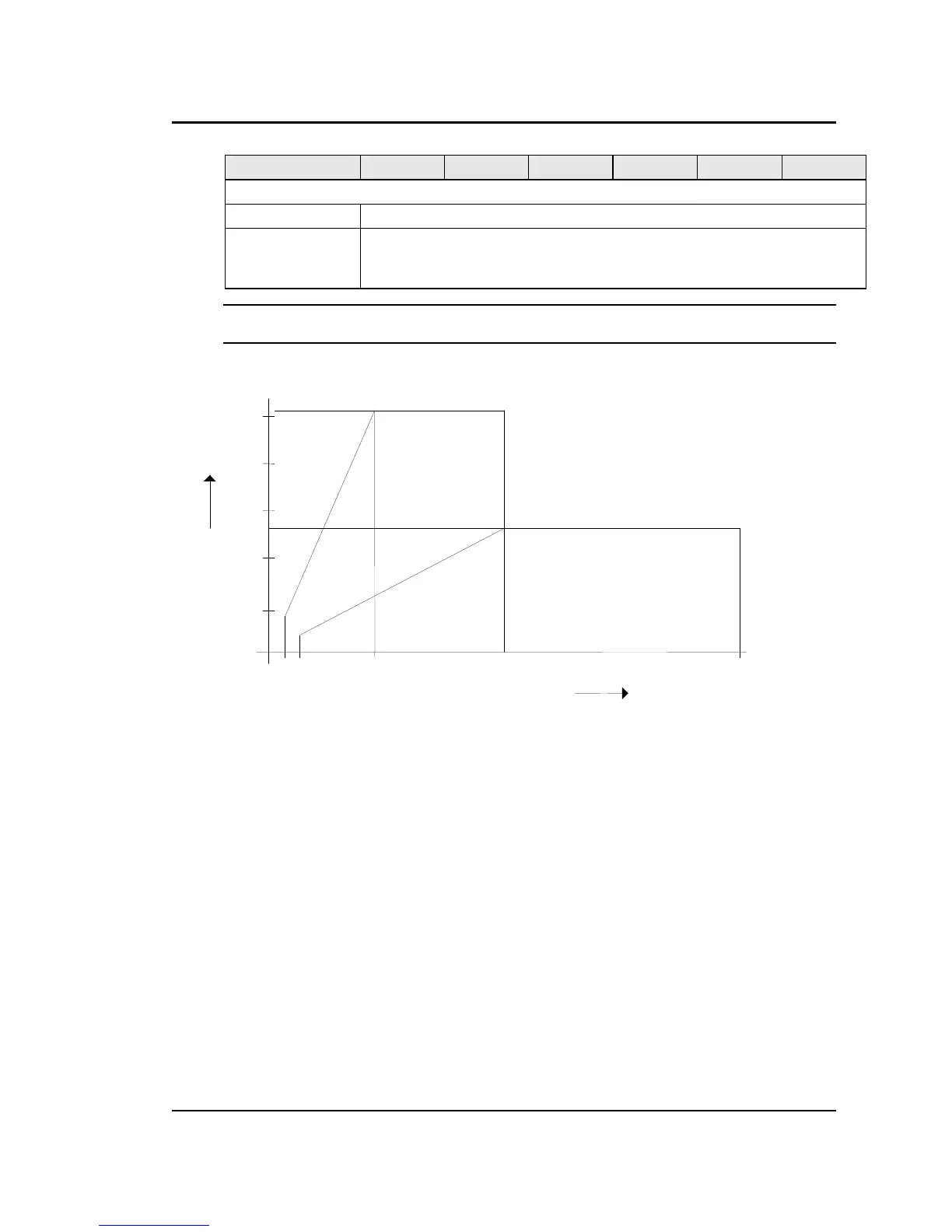

Figure 2-1: RS90 Voltage / Current
Rating Chart for 150/300 V AC Ranges – Max Rating.
Current
(RMS)
Voltage (RMS)
75
300
200
120
160
80
40
100 A
150
Low V Range
High V Rang
e
200 A
7.5
15
14
16
