User Manual AMETEK Programmable Power
RS Series 31
3. Unpacking and Installation
3.1 Unpacking
Inspect the unit for any possible shipping damage immediately upon receipt. If damage is
evident, notify the carrier. DO NOT return an instrument to the factory without prior approval.
Do not destroy the packing container until the unit has been inspected for damage in shipment.
If possible, retain the container (wooden crate) in the event the system ever has to be returned
to the factory for either repair or upgrades
WARNING: This power source weighs approximately 2150 lbs / 975
Kg approximately
2475 lbs / 1123 Kg
. Obtain adequate help when moving the unit. Make sure the
location (floor) in which the RS Series unit(s) will be installed can support the weight
of the unit(s).
3.2 Power Requirements
The RS Series power Source has been designed to operate from a three-phase, three wire (Wye
or Delta) AC input line. A protective earth connection is required as well. (PE).
Available three-phase input settings are 208 V
LL
(option -208), 230 V
LL
(option -230), 400 V
LL
(option -400), or 480 V
LL
(option -480).

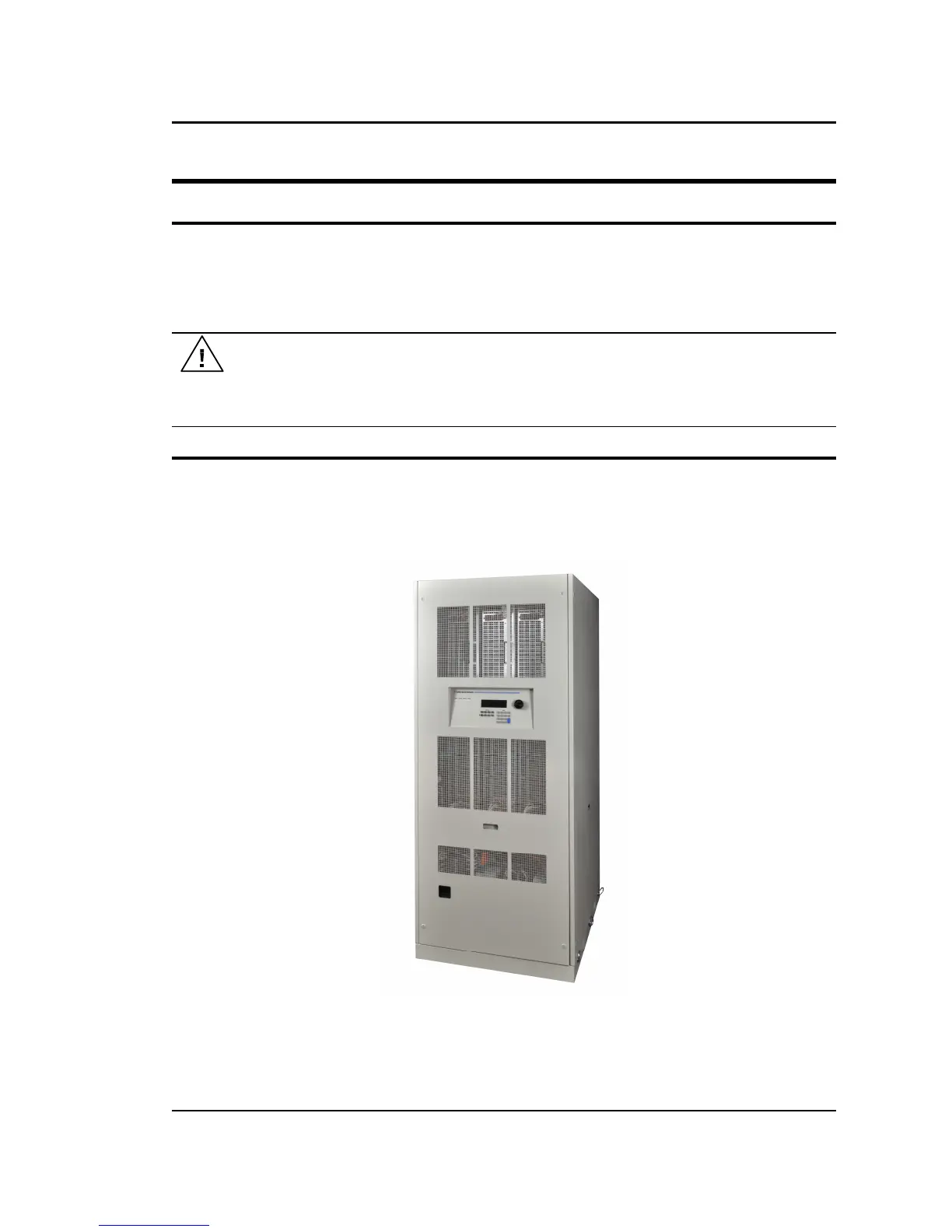

Figure 3-1: RS90 Power Source Photo
