User Manual AMETEK Programmable Power
RS Series 97
4.2.11.3 INITIAL SETUP menu

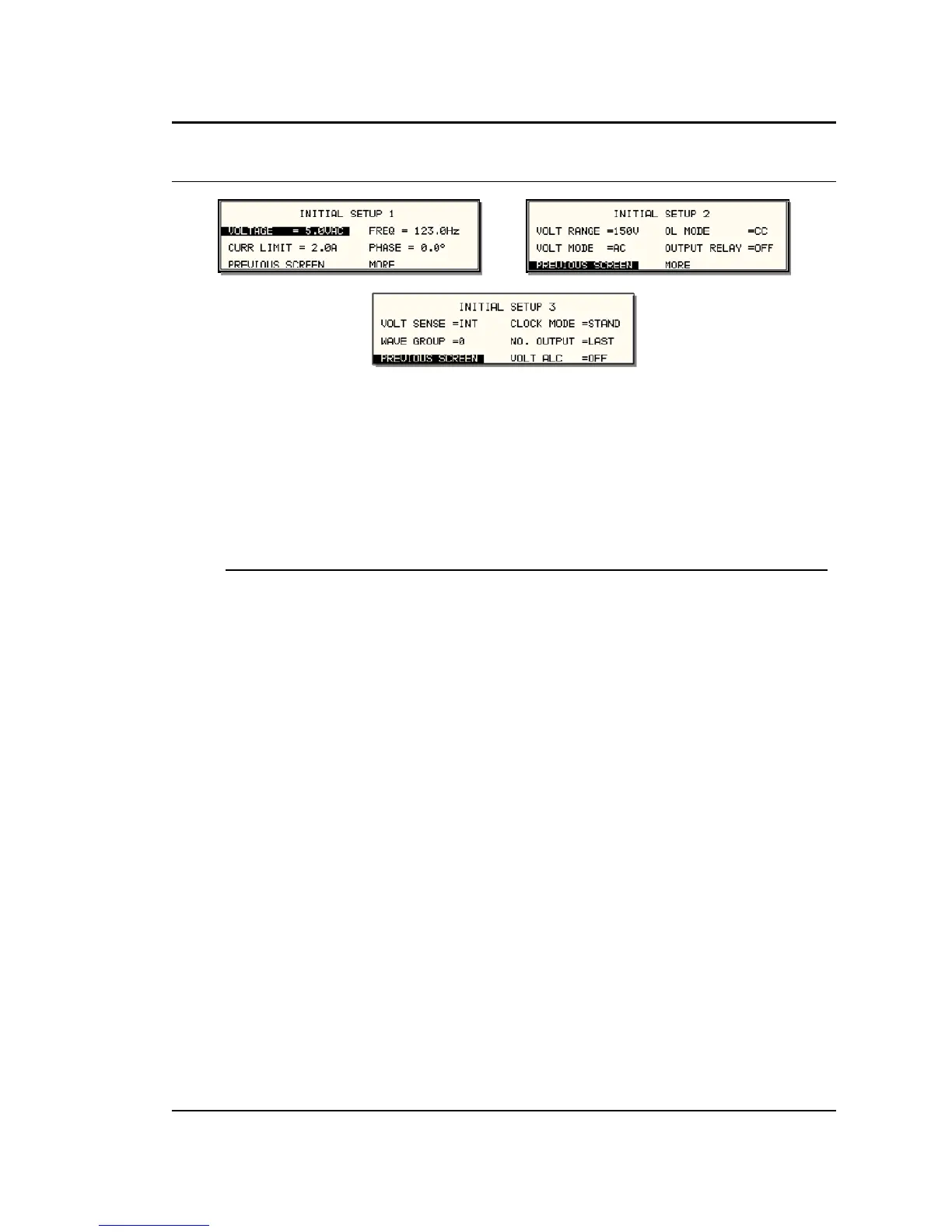

Figure 4-23: INITIAL SETUP Menus
Any time the power source is powered up, the output will reflect the values stored as the INITIAL
setup values. This allows the unit to be powered up in a known state at all times. The INITIAL
values can be set in the INITIAL SETUP menus.
The initial setup can be used to power up the power source with the output on and a high
voltage present at the output. For normal situations, this is not recommended due to the
potential danger to the operator. It is recommended that the initial voltage be set low and/or the
output relay be programmed to OFF for most situations.
The following fields are provided in the INITIAL SETUP menus:
Entry Description
INITIAL SETUP 1
VOLTAGE Sets the power-on AC voltage for AC and AC+DC modes or the
DC voltage for DC mode.
CURR LIMIT Sets the power-on current limit value.
FREQ Sets the power-on frequency value.
PHASE Sets the power-on frequency for phase A with respect to an
external sync signal. If the internal oscillator is used (default)
this setting has no effect.
INITIAL SETUP 2
VOLT RANGE Sets the power-on voltage range value.
VOLT MODE Sets the power-on voltage mode. Available settings are AC
mode, DC mode or AC+DC mode.
OL MODE Sets the power-on overload mode. Available settings are
Constant Current (CC) or Constant Voltage (CV) mode.
OUTPUT RELAY Sets the power-on state of the output relay. Available settings
are ON or OFF.
INITIAL SETUP 3
VOLT SENSE Sets the power-on state of the voltage sense mode. Available
settings are Internal (INT) or External (EXT).
