9.6.1.6 Revision Selection
The default Revision is E. Revisions supported are D and E. The Revision can be changed from
the front panel. Scroll to the REVISION entry using the up and down cursor keys (see Figure
9-33). Use the shuttle to change the selection.
9.6.1.7 AC MODE TESTS
9.6.1.7.1 Steady State Test
Scroll to the STEADY STATE AC entry using the up and down cursor keys. Press the ENTER

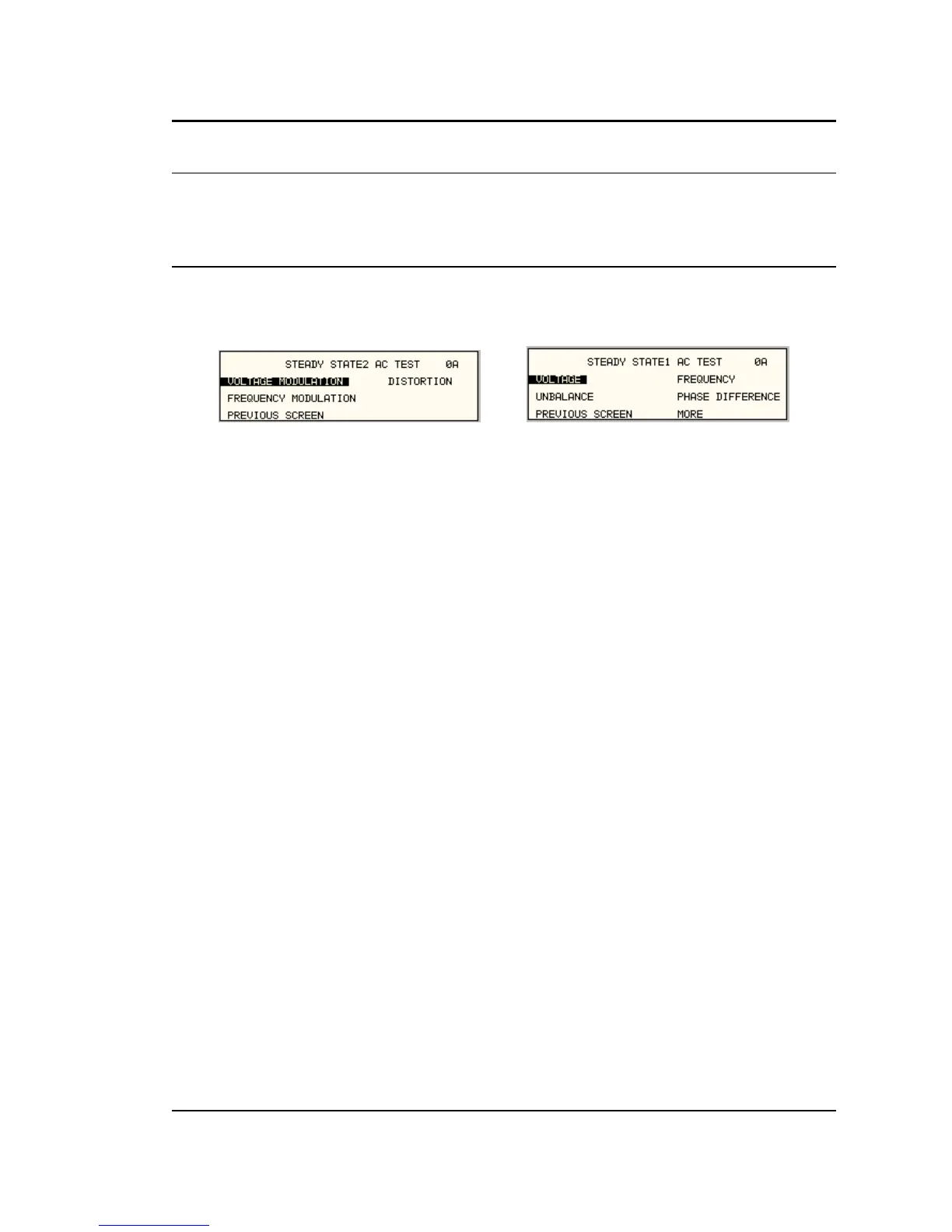

key to select the STEADY STATE screens. The screen will appear as shown in Figure 9-34.
Figure 9-34: Steady State Menu
The MIL704 Steady state 1 and Steady state 2 screens have the following tests:
1 VOLTAGE
2 FREQUENCY
3 VOLT UNBALANCE
4 PHASE DIFFERENCE
5 VOLT MODULATION
6 FREQ MODULATION
7 DISTORTION
The above tests can be selected by scrolling to the highlighted selection using the up and down
cursor keys and the ENTER key to start the selected test.
VOLTAGE
This test will change the output voltage in the following sequence:
• 108V for 1 minute.
• 118V for 1 minute.
• 115V for 1 minute.
The ← key (backspace) will terminate the test at any time.
