9.4.7 Using the RSGui Windows Program for IEC 61000-4-11 Testing

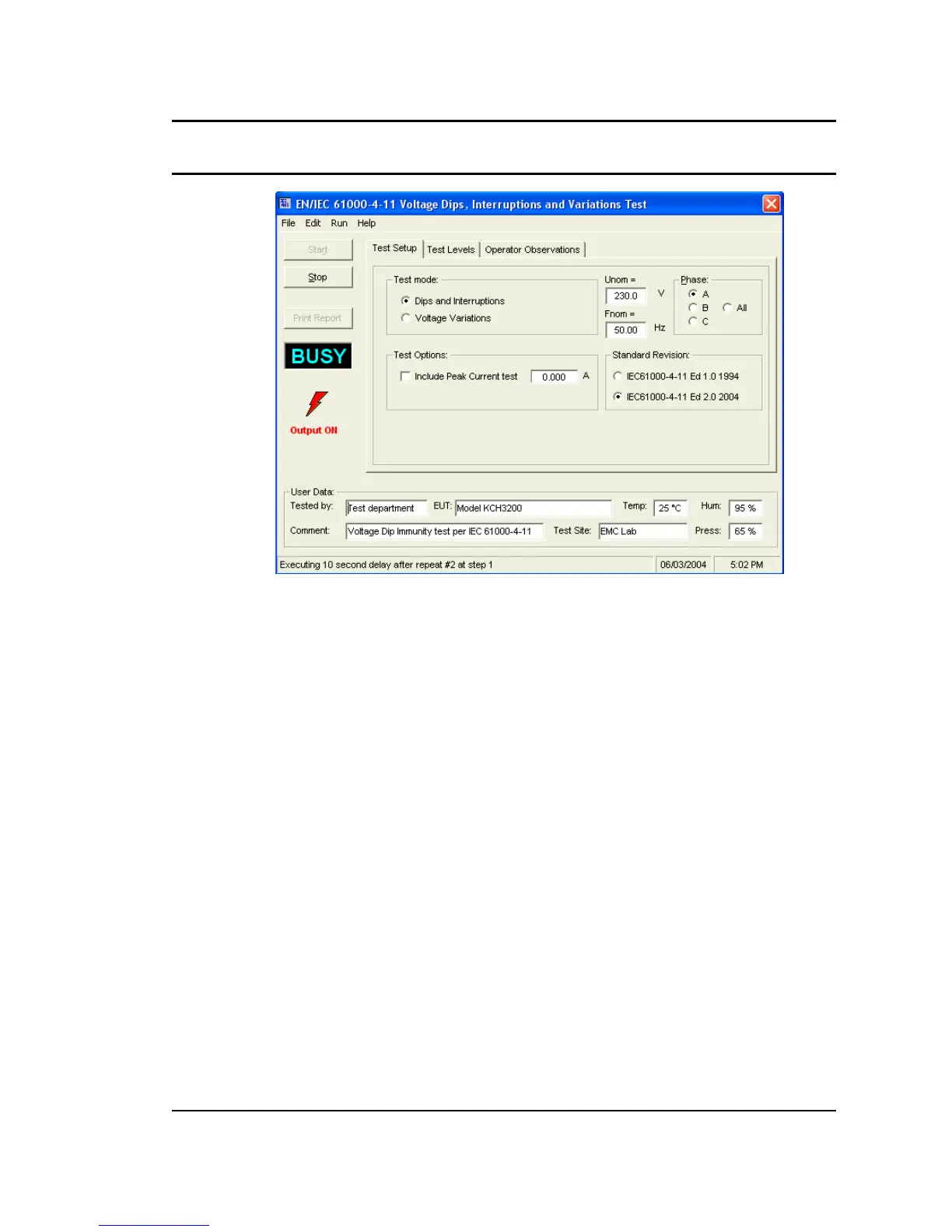

Figure 9-19: IEC 61000-4-11 GUI screen.
The RSGui Windows control program will detect the presence of the –411 option on the RS AC
power source. Test reports can be generated at the end of a test for documentation purposes.
To support Edition 2.0 of the IEC 61000-4-11 test standard, version 1.20 or higher of the RSGui
is required. Older versions of the RSGui will only support Edition 1.0 tests. The desired Edition
can be selected by the user and provides the relevant data entry mode for the Edition selected.
Generic tests files are distributed with the RSGui program for both editions of the test standard.
Files applicable to Edition 2.0 have ED20 in their file name. Do not mix these files, as the data
setup will not be correct if you do. To load a test file, select the Mode (Dips or Vars) and test
standard revision first, then use the File, Open menu to load the test parameters. Test
parameters can be a function of the EUT class. The different files provided with the program
cover the various EUT classes. The relevant EUT class 1, 2, 3 or X is listed in the file names.
The user must select the desired test type before executing the test. Since both test types
require a number of test parameters, the test sequence parameters must be entered in the data
entry grid or loaded from disk using the File, Open menu entry.
For complete details on how to use the RSGui –411 option test screen, refer to the on-line help
of the RSGui program available from the Help menu.
