User Manual AMETEK Programmable Power
RS Series 51
3.6.8 ES Option - Emergency Switch Interconnect for –MB systems – BNC
An optional BNC connector is located on the rear panel for connecting multiple chassis, each
having a controller and an emergency shut off switch (-ES option). This connection is required
to create an OR-ed operation of more than one –ES switch.
This connector is only present on RS-MB systems with the –ES option. If present, a suitable
BNC cable should be used to connect the emergency shut off signal between chassis. This
connector is labeled as follows:
"Caution: BNC cable must be connected for system Emergency Shut-Down"

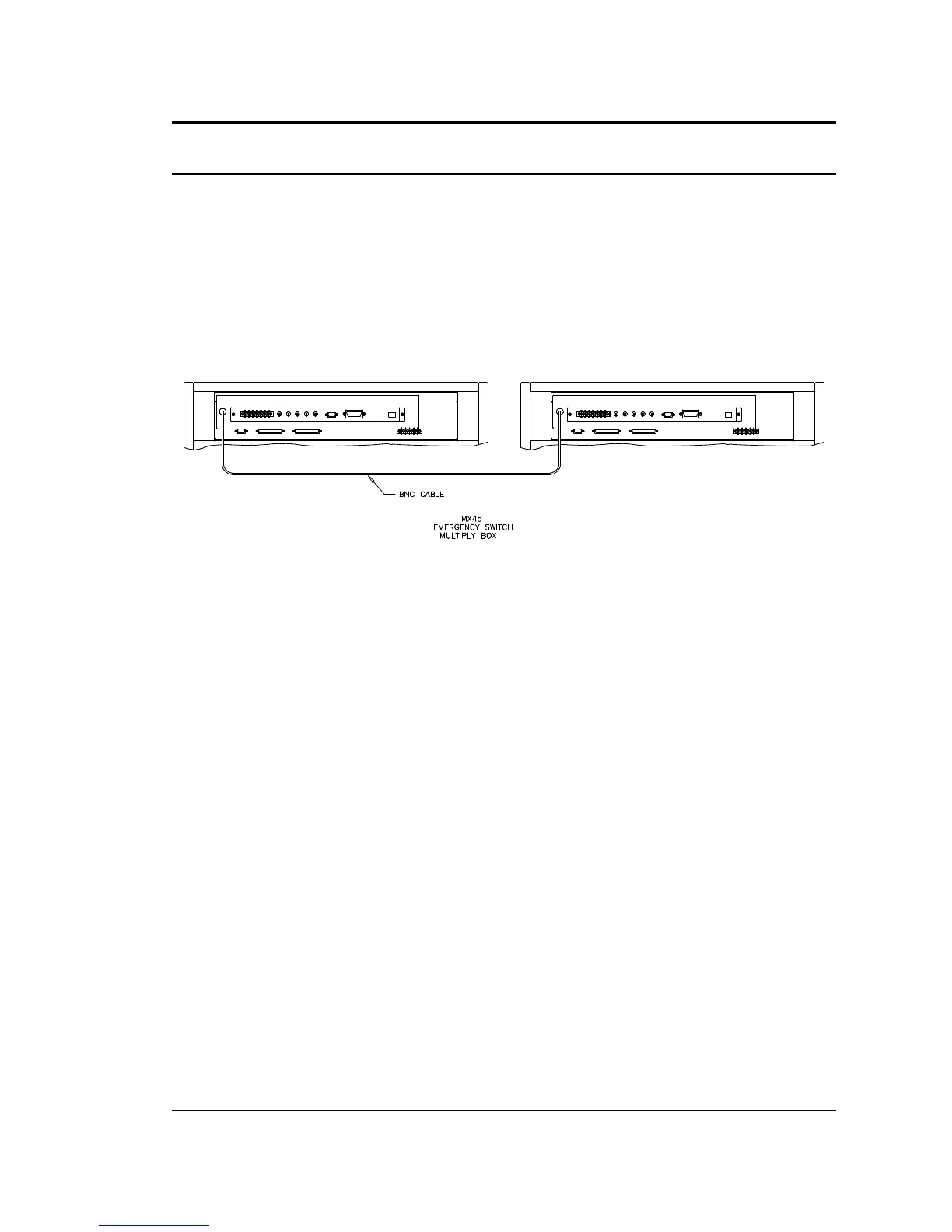

See figure below for an illustration of a RS180-MB-ES interconnect.
Figure 3-12: Emergency Switch (ES Option) shut off inter connect on -MB systems.
