129
5.
Principle of Opera
tion
5.1
General
An explanation
of the
circuits in th
e RS Series is
given in this
section. Refer t
o Figure 5-1
for a basic
functional block
diagram of
the s
ystem.
Figure 5-2 s
hows a
more detailed syst
em inter c
onnect for a
RS-45-1 single-phas
e output
unit.
Other
models have s
lightly different
output conf
igurations.

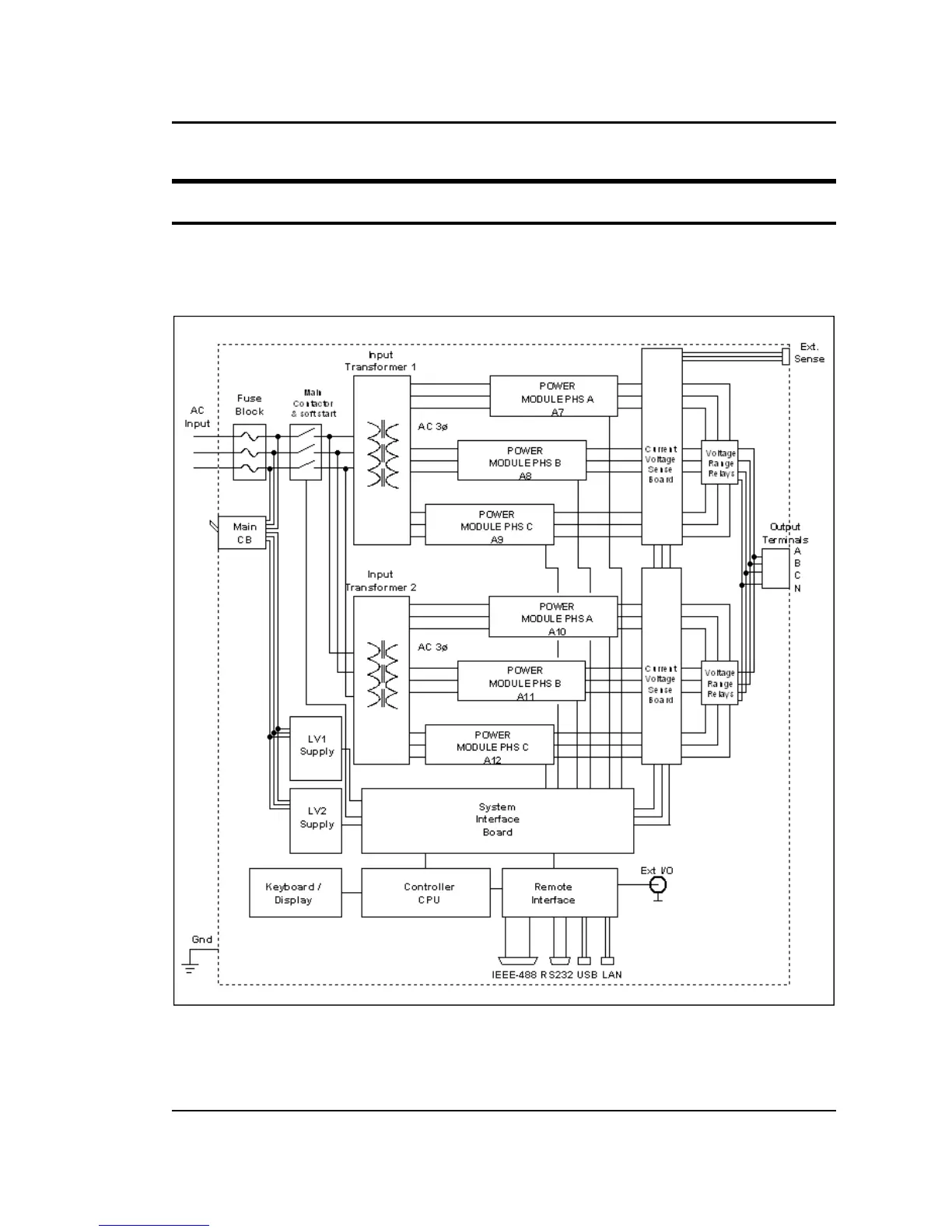

Figure 5-1: RS Series Functional Block Diagram
