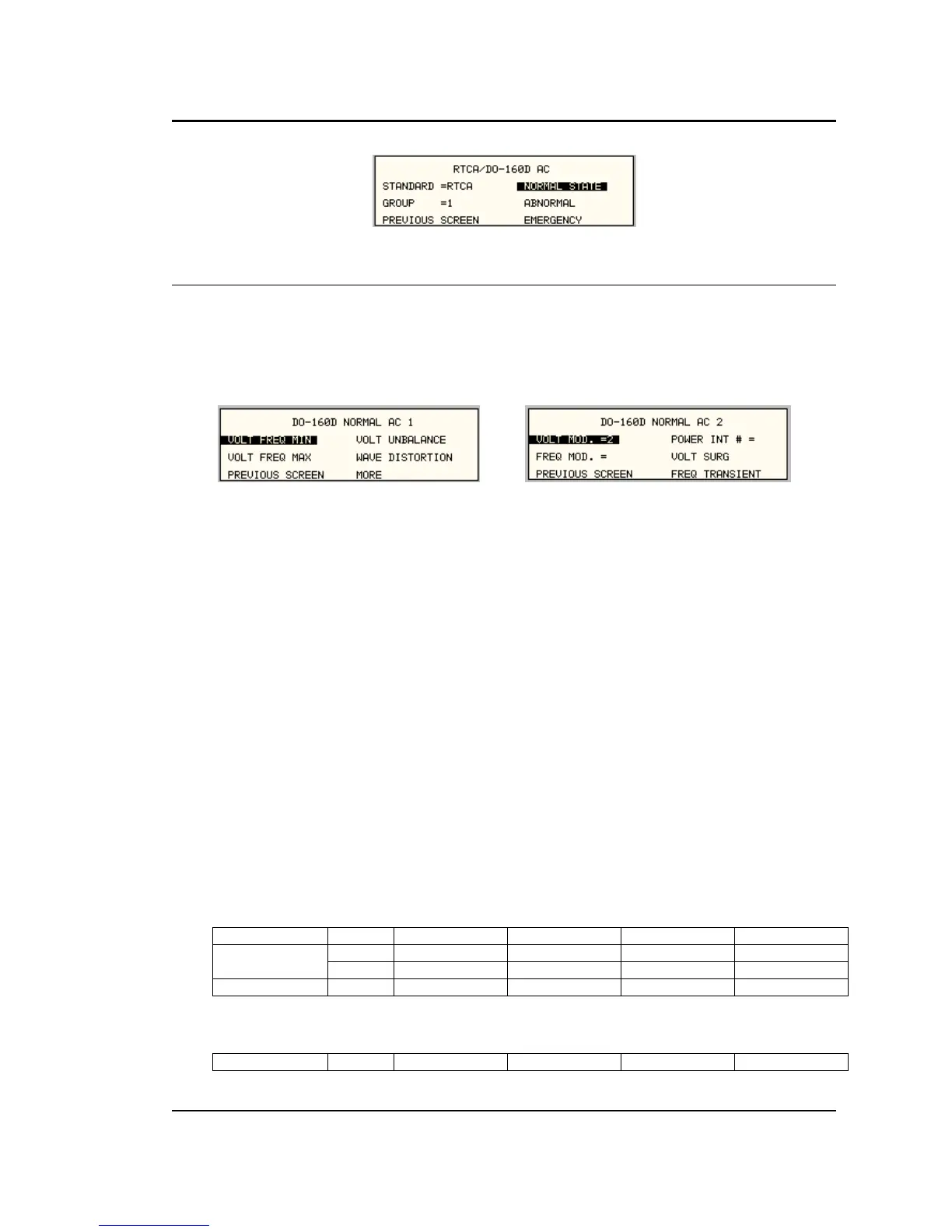

Figure 9-2: DO160 Main Menu
9.3.1.5 AC TESTS
Note: Prior to test selection the standard and the group selection are required. Use the shuttle to
select the standard and the group if applicable.
9.3.1.5.1 Normal state test
Scroll to the NORMAL STATE AC entry using the up and down cursor keys. Press the ENTER
key to select the NORMAL STATE screens. The screen will appear as shown in Figure 9-3.
Figure 9-3: Normal State
The DO160 NORMAL 1 and NORMAL 2 screens have the following tests:
1 VOLT FREQ MIN
2 VOLT FREQ MAX
3 VOLT UNBALANCE
4 WAVEFORM DISTORTION
5 VOLT MODULATION
6 FREQ MODULATION
7 POWER INTERRUPT
8 VOLTAGE SURGE
9 FREQ TRANSIENT (group 1)
FREQ VARIATION (group 2 & 3)
The above tests can be selected by scrolling to the highlighted selection using the up and down
key and the ENTER key to start the selected test. For some of these tests, numeric data entry
may be required to define the test number or the modulation rate.
VOLT FREQ MIN
Standard/Group RTCA Group1 Group2 Group3
Voltage 1 100 104 104 104
3 101.5 105.5 105.5 105.5
Frequency 380 390 360 360
Table 9-1: Normal Voltage and Frequency Minimum
Standard/Group RTCA Group1 Group2 Group3
To Next Page
