A VPU can support both capacities at the same time
One Screen cannot support mixing and split layers at the same time. However, VPUs and Screens can support
layers of capacity 1 and 2 at the same time, in any order.

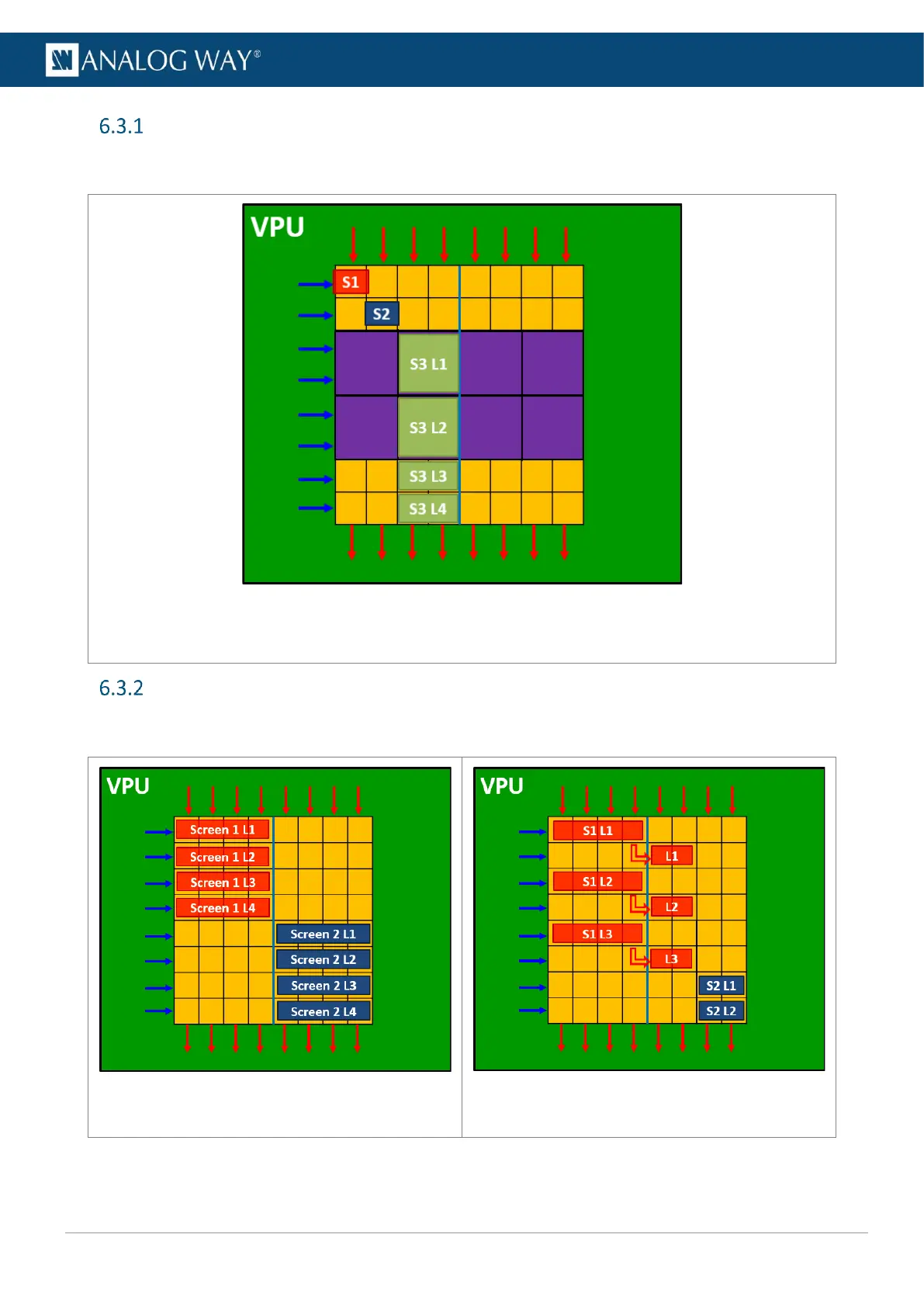

Screen 1 (1 output and 1 mixing layer capacity 1)
Screen 2 (1 output and 1 mixing layer capacity 1)
Screen 3 (2 outputs and 2 mixing layers capacity 2 and 2 mixing layer capacity 1)
Scaling engine boundary
A VPU is optimized to spread layers over up to 4 output links. A layer spread over more than 4 output links
uses another layer link.
Two Screens of 4 outputs with 4 mixing layers each
Screen 1 (6 outputs and 3 mixing layers)
Screen 2 (2 outputs and 2 mixing layers)
