The Screen canvas are separated in two types:
Grid type
Recommended for standard shows (single output screen, same format displays aligned
horizontally or vertically, 2x2, etc.). Covering and gap are simplified in Grid with the X and Y
areas.
Free type
Recommended for more specific shows that require manual adjustments for each output.
Covering is set manually for each output.
Note: - Canvas settings are applied to the selected Screen.
- Grid and Free type have their own settings and switching between types does not keep the current configuration.
Patterns
Display patterns to test and control how outputs are displayed in Screens.
Setting name
Description / Setting selection
Patterns
Enable
On/Off toggle. Display the pattern in output
Patterns
Select the pattern to display
Area
Set the pattern to fit the format used or the AOI
Raw Colors
On/Off toggle. Using raw colors disables all Adjustments settings (ex: Colorimetry,
User Gain, etc.)

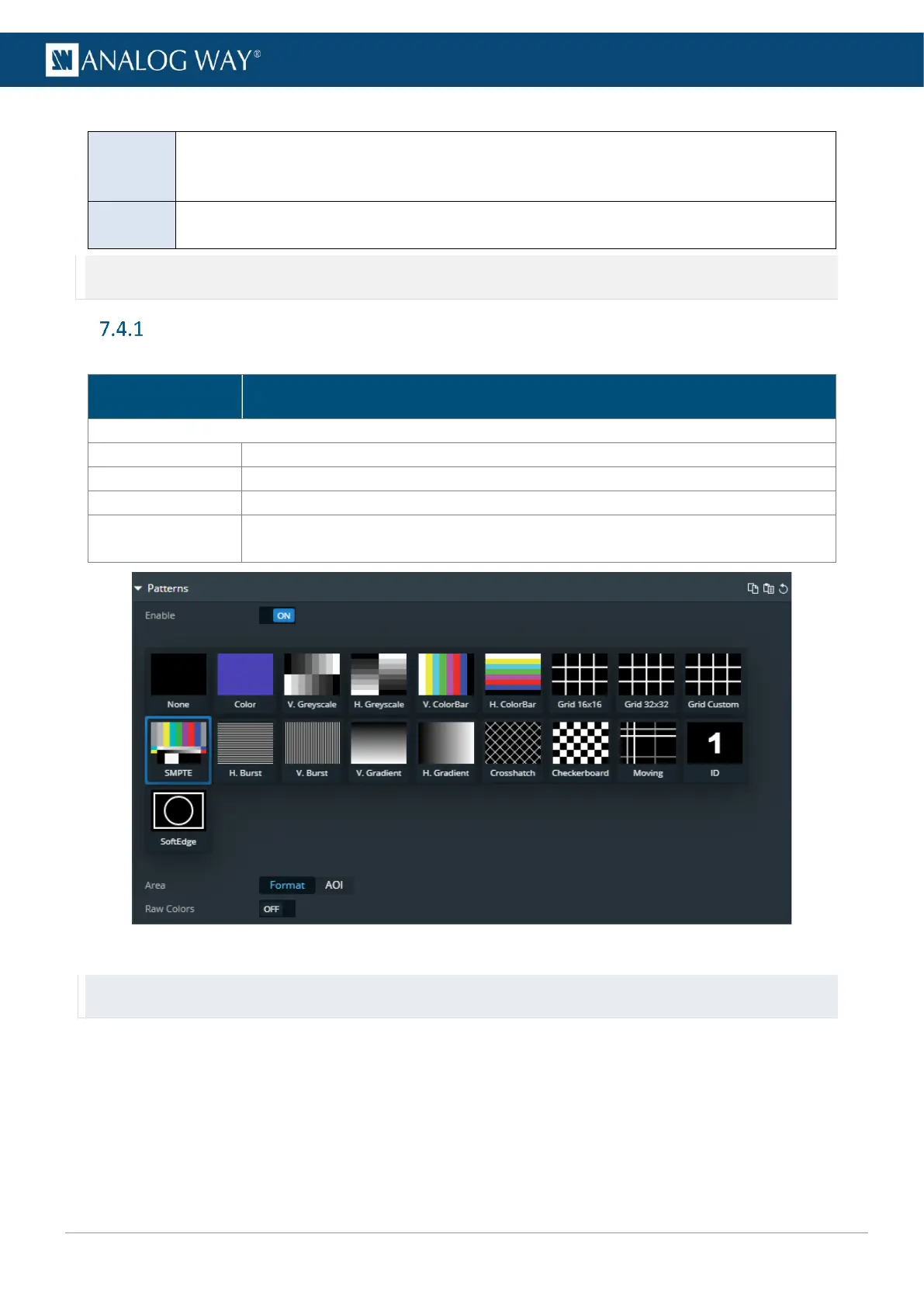

Fig. 11 - Patterns
Tip: - Remember to enable and disable patterns on all outputs.
- The patterns Grid Custom, Crosshatch and Checkerboard are customizable patterns with units in pixels.
