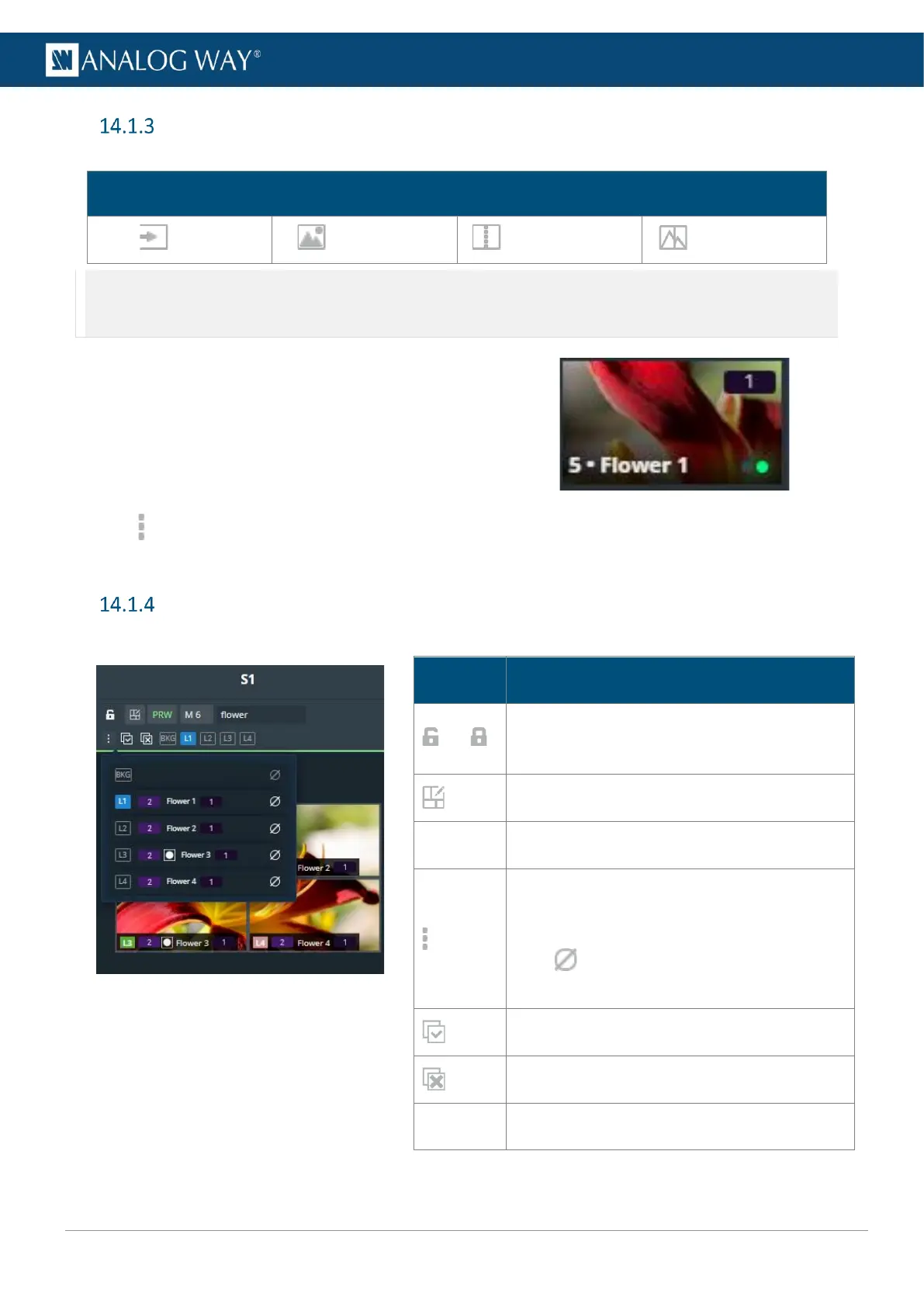

Sources - Left panel
The Sources are located in the left panel. Click the icons to show the corresponding sources:
Note:
- Program Screens can only be used as content for Aux Screens and Split layers.
- Background sets can only be used in Background layers.
The following information are displayed per source content:
- Resolution (for inputs)
- Source capacity
- Source number
- Source label
- The tallies turn red and green if the content is used in a
Program and/or Preview Screen ●●.
- Click on the bottom-right corner of a source thumbnail to open options (ex: Freeze an input or access
the setup menu for the selected source).
Layer selection
This bar shows tools and all available layers for the corresponding Screen.
Description / Setting selection
Toggle to lock the Screen.
Layers cannot be modified but Memories can be
loaded and transition can be triggered.
Open the layout editor, see
14.1.5 Layout editor page 71.
Open the Screen options, see 14.1.6 PGM and
PRW buttons page 71.
Open a detailed view of all layers in the selected
Screen (layer capacity, source number and
source capacity).
Click to empty the layer content and keep
other properties
Select all layers in this Screen
Deselect all layers in this Screen
Select a layer (hold Ctrl or Shift to select
multiple layers)
