10 Inputs
In Inputs, set the Label, Signal parameters, Patterns, Image correction, Aspect and Keying.
Note:
- Go to Preconfig > Inputs to set input resources.

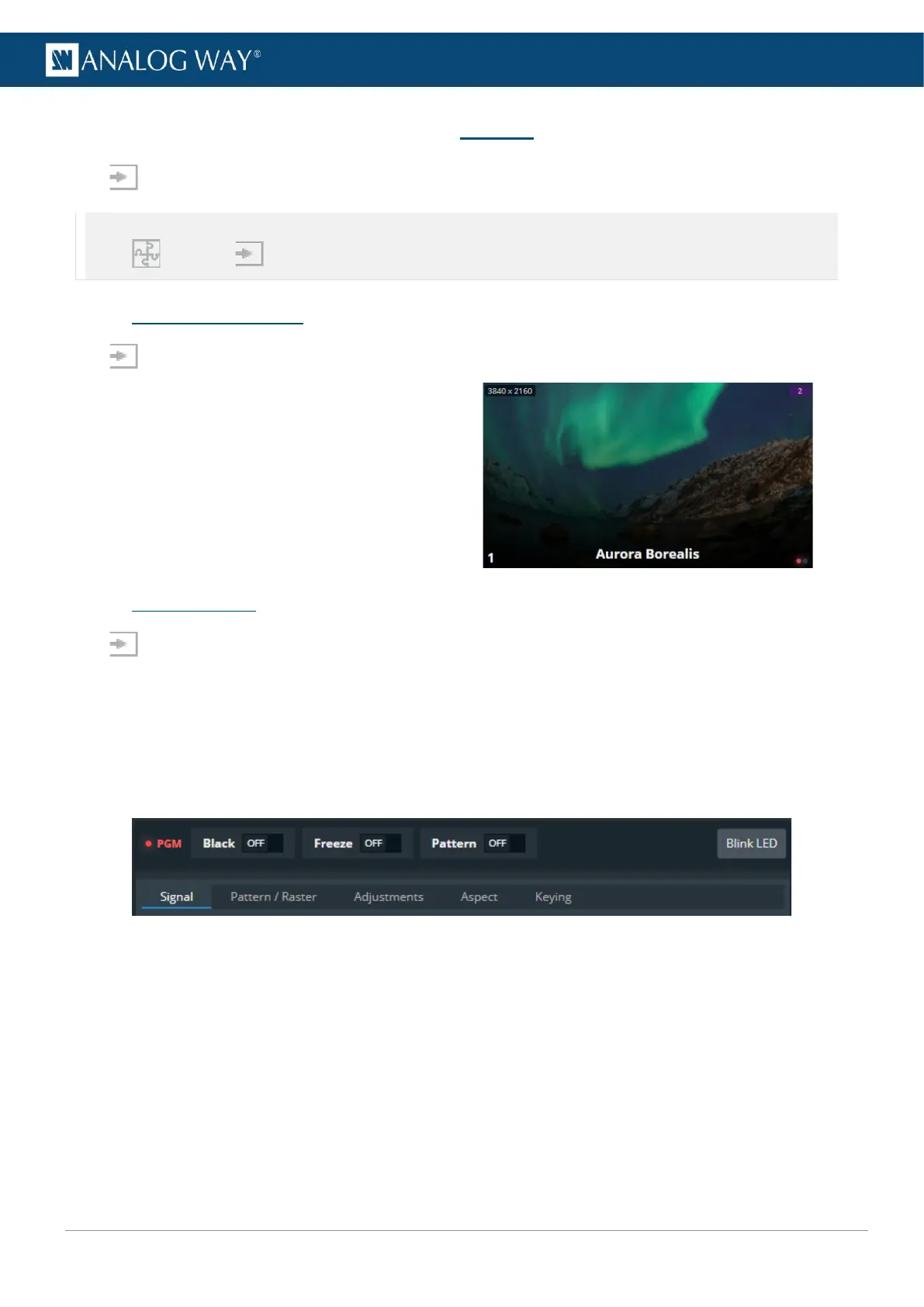

10.1 Inputs main screen
In Inputs, the inputs main screen displays all inputs in a Grid view.
The following information are displayed per input:
- Resolution
- Signal Type (on hover)
- Input capacity
- Input number
- Input label
- The tallies turn red and green if the input is used in
a Program and/or Preview Screen ●●.
10.2 Input settings
In Inputs, click an input to open its settings. The selected input is highlighted in the interactive rear
panel.
- Click Inputs to return to the inputs Grid.
- On the interactive rear panel, hover on an input connector to display information about this input.
- On the interactive rear panel, click an input to open its settings.
General buttons are available on top of input settings:
Fig. 12 - Input settings
- PGM turns red if the input is used in a Program screen.
- Toggle Black to display a black image in all layers using this input.
- Toggle Freeze to pause the content in all layers using this input (this does not pause the playback of a
media).
- Toggle Pattern to replace the content with a pattern (see 10.2.2 Input pattern page 55)
- Click Blink LED to identify the selected input connector on the physical rear panel of the unit.
