Combined VPUs
A Screen using more than 8 outputs uses another VPU.

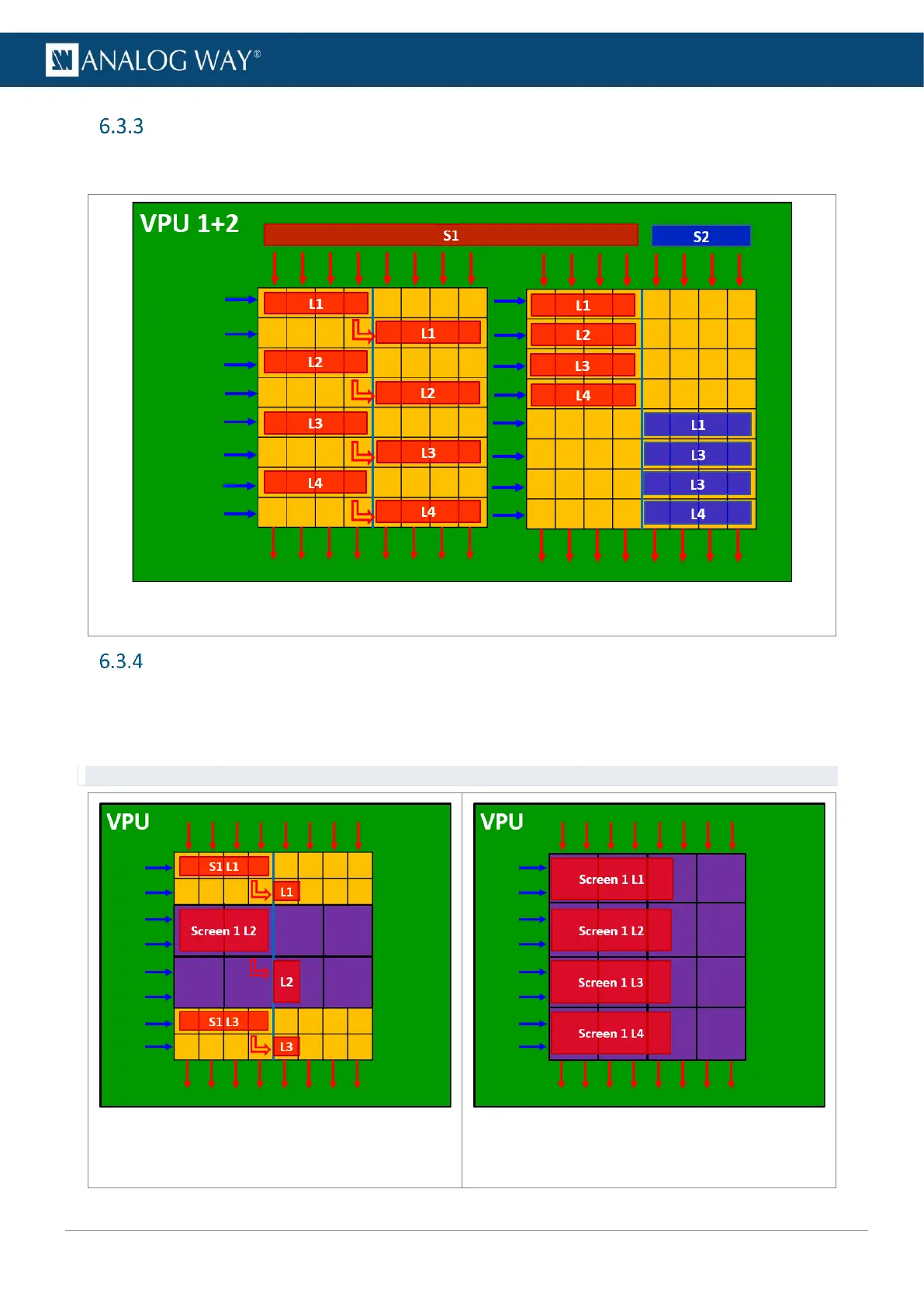

In the following example, each mixing layer of Screen 1 uses 3 layer links:
Screen 1 (12 outputs and 4 mixing layers)
Screen 2 (4 outputs and 4 mixing layers
Optimized mode
An Optimized mode is enabled for the whole VPU when one Screen uses at least 5 outputs links and at least
one layer of capacity 2. The Optimized mode removes the 4 links boundary and configures the links to bring
the best performance for layers of capacity 2.
Recommendation: When Optimized mode is enabled in one Screen, use only layers of capacity 2.
Without Optimized mode
Screen 1 (5 outputs and 2 mixing layers capacity 1
and 1 mixing layer capacity 2)
With Optimized mode
Screen 1 (5 outputs and 4 mixing layers capacity 2)
