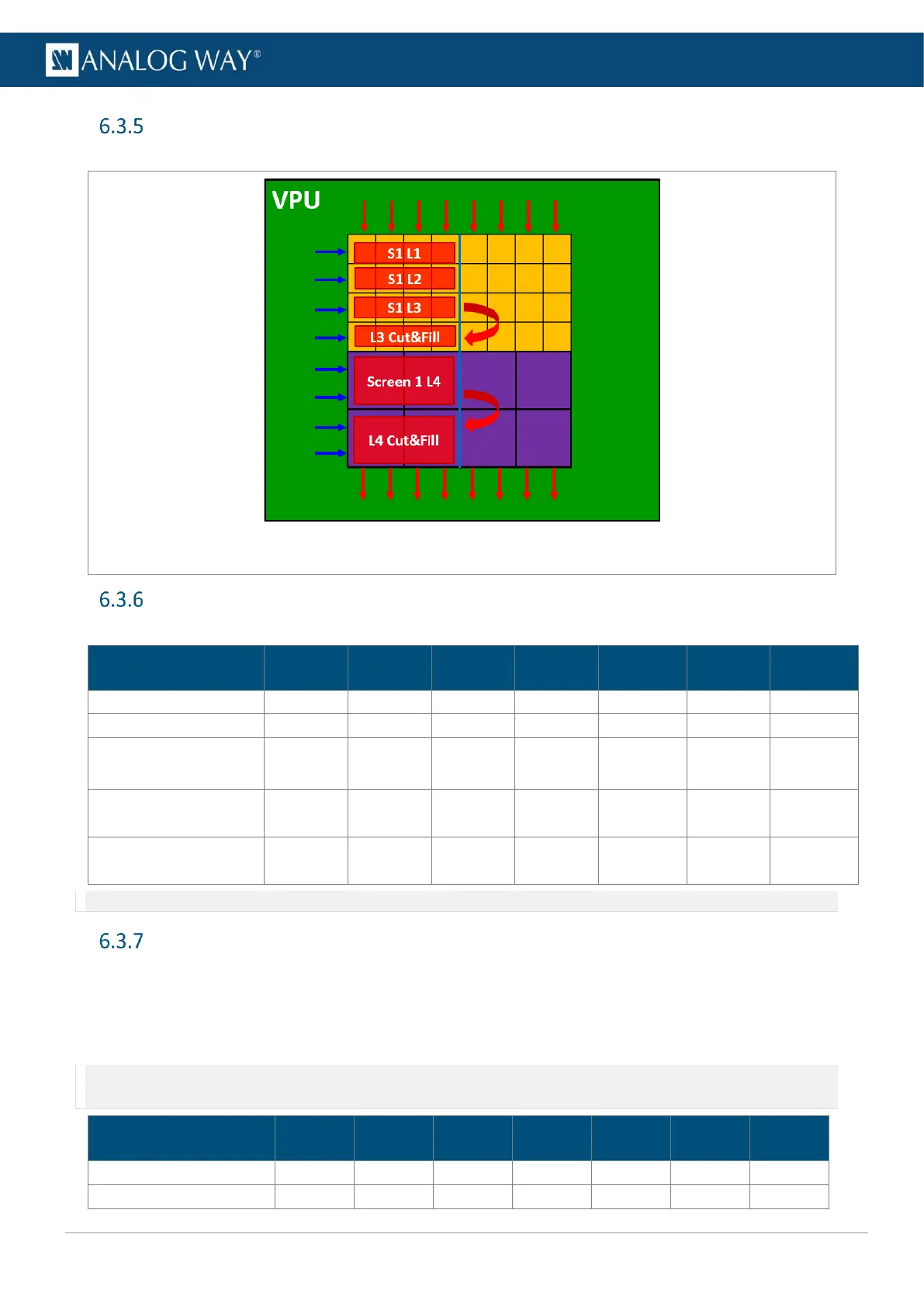

Cut & Fill resources
The Cut & Fill effect is enabled for a layer and doubles the resources needed for that layer.
Screen 1 (4 outputs and 2 mixing layer capacity 1;
1 mixing layer capacity 1 with Cut & Fill; 1 mixing layer capacity 2 with Cut & Fill)
How many VPUs per model?
LivePremier units are equipped with up to 3 VPUs.
Aquilon Models
RS alpha
RS1
RS2
RS3
RS4
C
C+
VPUs
1
1
2
2
3
up to 2
up to 3
Output connectors
4
8
12
12
16
up to 16
up to 20
Max 4K60 PGM outputs
(capacity 2)
4 Screens
+ 0 Aux
4 Screens
+ 4 Aux
8 Screens
+ 4 Aux
8 Screens
+ 4 Aux
12 Screens
+ 4 Aux
8 Screens
+ 8 Aux
12 Screens
+ 8 Aux
Max 4K60 mixing layers
(capacity 2)
4
4
8
8
12
up to 8
up to 12
Max DL split layers
(capacity 1)
16
16
32
32
48
up to 32
up to 48
Note: VPUs are automatically joined together just like scaling engines depending on the Screen configuration.
IPUs
VPUs create video content for layers while image content is created by Image Processing cards (IPUs).
One IPU supports:
- up to 24 simultaneous images of capacity 1 displayed on Program.
- up to 12 simultaneous images of capacity 2 displayed on Program.
Note: - Images of capacity 1 and 2 can be displayed at the same time.
- When an image preset is set to capacity 2, it uses the resources of the next preset and preempts it.
Aquilon Models
RS alpha
RS1
RS2
RS3
RS4
C
C+
IPUs
1
1
1
2
2
0 or 1
Up to 2
Simult. 4K image channels
12
12
12
24
24
0 or 12
Up to 24
