9 Outputs
In Outputs, set the Label, Signal parameters, Patterns and Image correction.
Note:
- Go to Preconfig > Screens / Aux Screens > Outputs to set output resources.

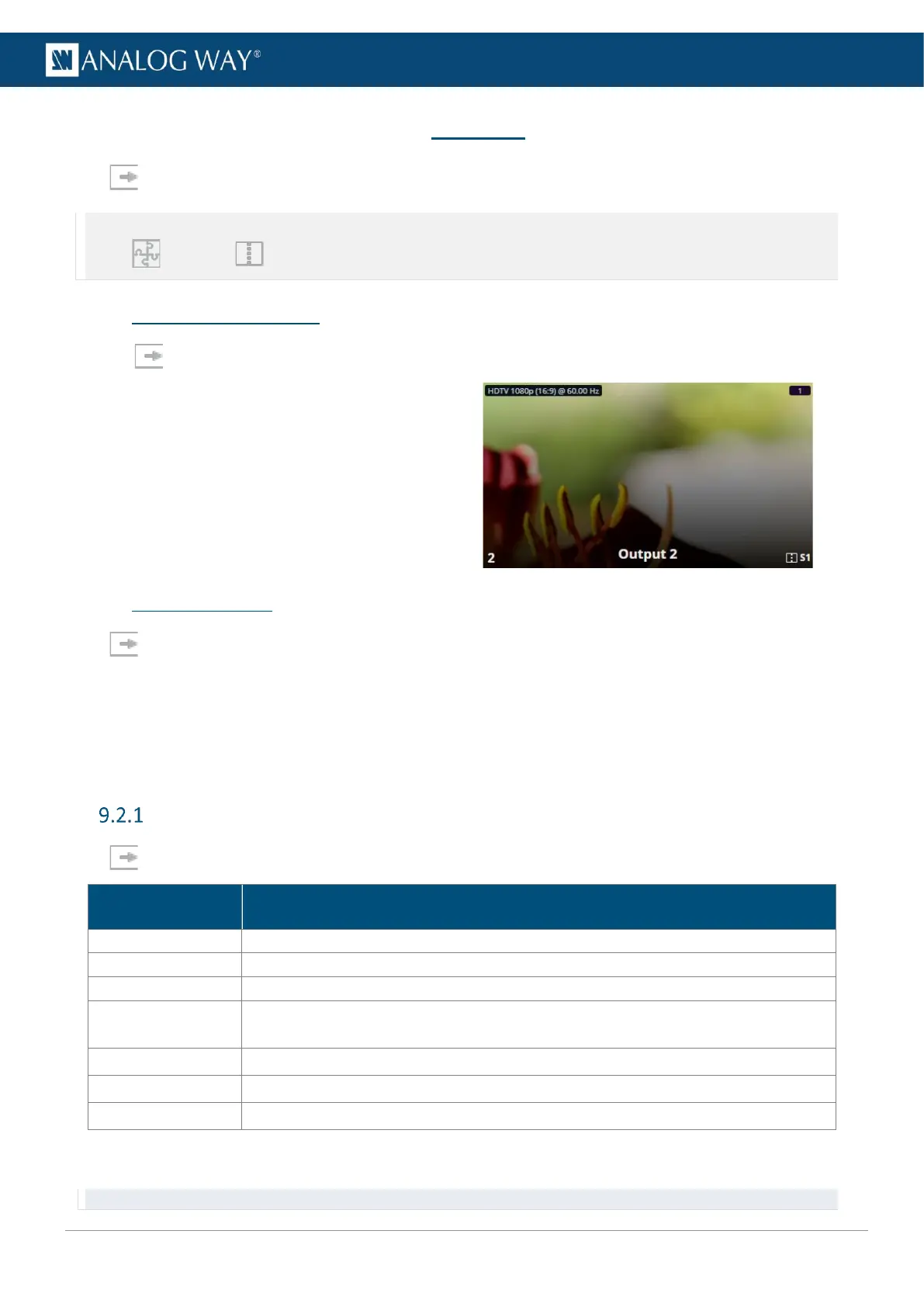

9.1 Outputs main screen
Go to Outputs, the outputs main screen displays all outputs in a Grid view.
The following information are displayed per output:
- Resolution
- Format and rate (on hover)
- Output capacity
- Output number
- Output label
- Screen number using that output
9.2 Output settings
In Outputs, click an output to open its settings. The selected output is highlighted in the interactive
rear panel.
- Click Outputs to return to the outputs Grid.
- On the interactive rear panel, hover on an output connector to display information about this output.
- On the interactive rear panel, click an output to open its settings.
- Click Blink LED to identify the selected output connector on the physical rear panel of the unit.
Output signal
In Outputs, select an output. In Signal, the following settings are displayed:
Description / Setting selection
Set to follow internal rate or select a custom rate in the list
Set the format for the output display
Auto or RGB (Full or Limited), YCbCr (4:4:4, 4:2:2 or 4:2:0) and ITU-R BT. (709 or
2020)
8 bits, 10 bits or 12 bits
Enable to change signal into DVI signal if using a DVI connector on the display
Disable*; Auto; HDCP 1.x; HDCP 2.x Type 0 or HDCP 2.x Type 1
*Disabling HDCP reduces possible problems when the content is not fully HDCP compliant. When output HDCP is disabled, HDCP-
protected inputs are not displayed.
Recommendation: Always use high quality cables to prevent connection and bandwidth errors when using HDCP.
