Section 2 How to Connect
2-2

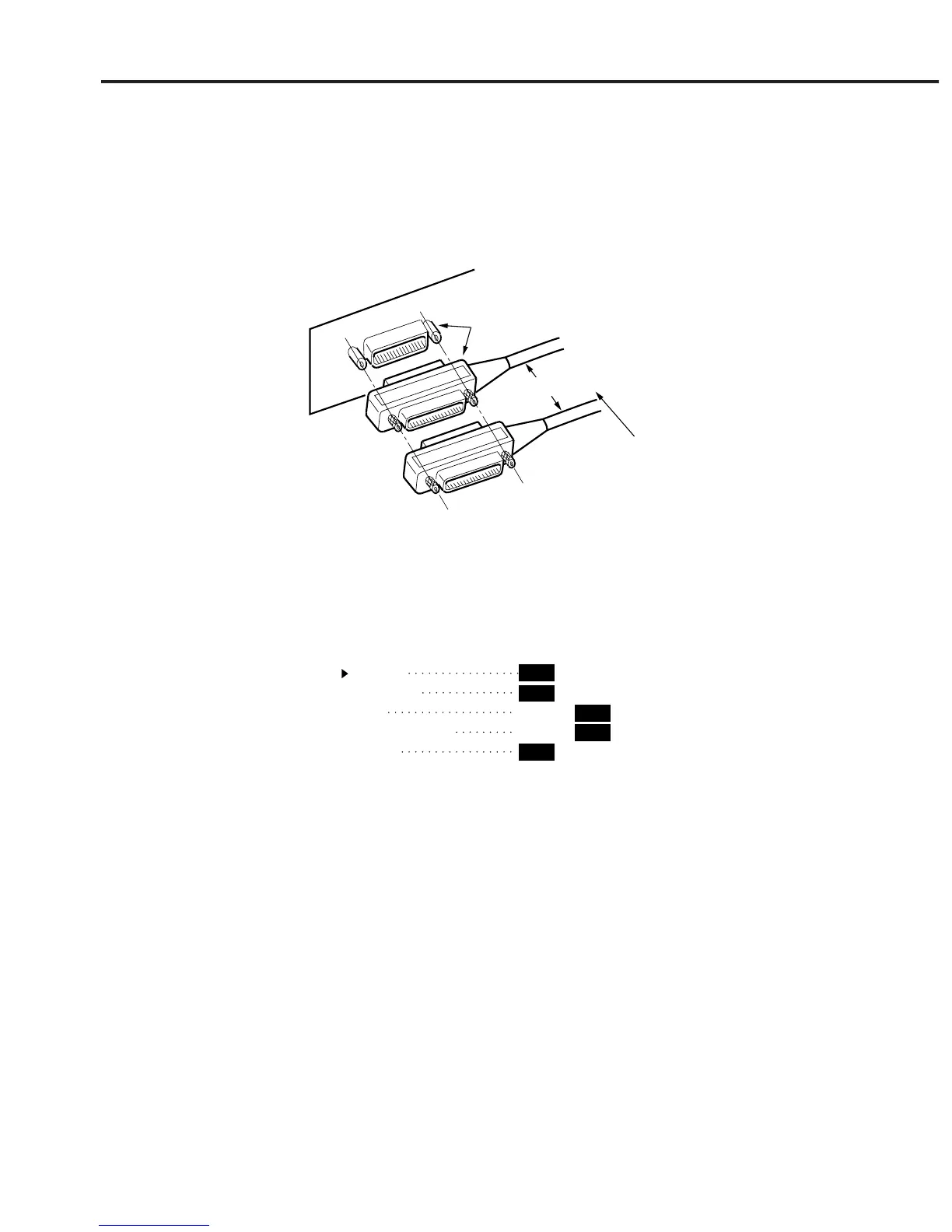

2.1 Connecting Devices Using GPIB Cables
The MS9710C has a GPIB cable connection connector on the back panel. Be sure
to connect GPIB cables before turning on the power.
A maximum of 15 devices, including a controller, can be connected. Connection
conditions are given shown below.
GPIB
GPIB connector
GPIB cable
Total cable length ≤ 20 m
Device-to-device cable length ≤ 4 m
Number of connectable devices < 15
2.1.1 Setting interface conditions for the connection port
When controlling the MS9710C automatically/remotely from a computer, set in-
terface conditions for the connection Press the RS-232C Prmtr function key on
the “Others” card to select “GPIB” for “Interface.”
=== RS232C Parameter =====================================
Interface GPIB RS232C
Speed(bps) 9600 4800 2400 1200 600
Parity None Even Odd
Character Length 7Bit 8Bit
Stop Bit 1Bit 2Bit
2.1.2 Confirming and Setting the Address
Be sure to set the MS9710C’s GPIB address after turning on the power. The
factory-set address “08” is battery-backed up. If you use this address, the address
need not be set again. If you want to change the address, place the MS9710C in
the local mode, press the GPIB Address function key on the “Others” card, then
enter a new address with keyboard keys or an encoder. Immediately after the
power is turned on, the devices on the GPIB automatically enters the local mode.
