Spectrum Analyzer Performance Verification 3-9 Amplitude Accuracy
MS20xxC MM PN: 10580-00307 Rev. D 3-25
9. On the MS203xC, press the Shift key and then the Mode (9) key. Use the rotary knob to highlight
Spectrum Analyzer, and then press the Enter key to switch to Spectrum Analyzer mode.
10. Press the Shift key, the Preset (1) key, and then the Preset soft key to reset the instrument to the default
starting conditions.
11. Press the Shift key and the Sweep (3) key, press the Sweep Mode soft key, and then press the
Performance soft key to set the instrument to Performance Sweep mode.
12. Press the Amplitude key and then the Reference Level soft key.
13. Enter 10 and then press the dBm soft key to set Reference Level to 10 dBm.

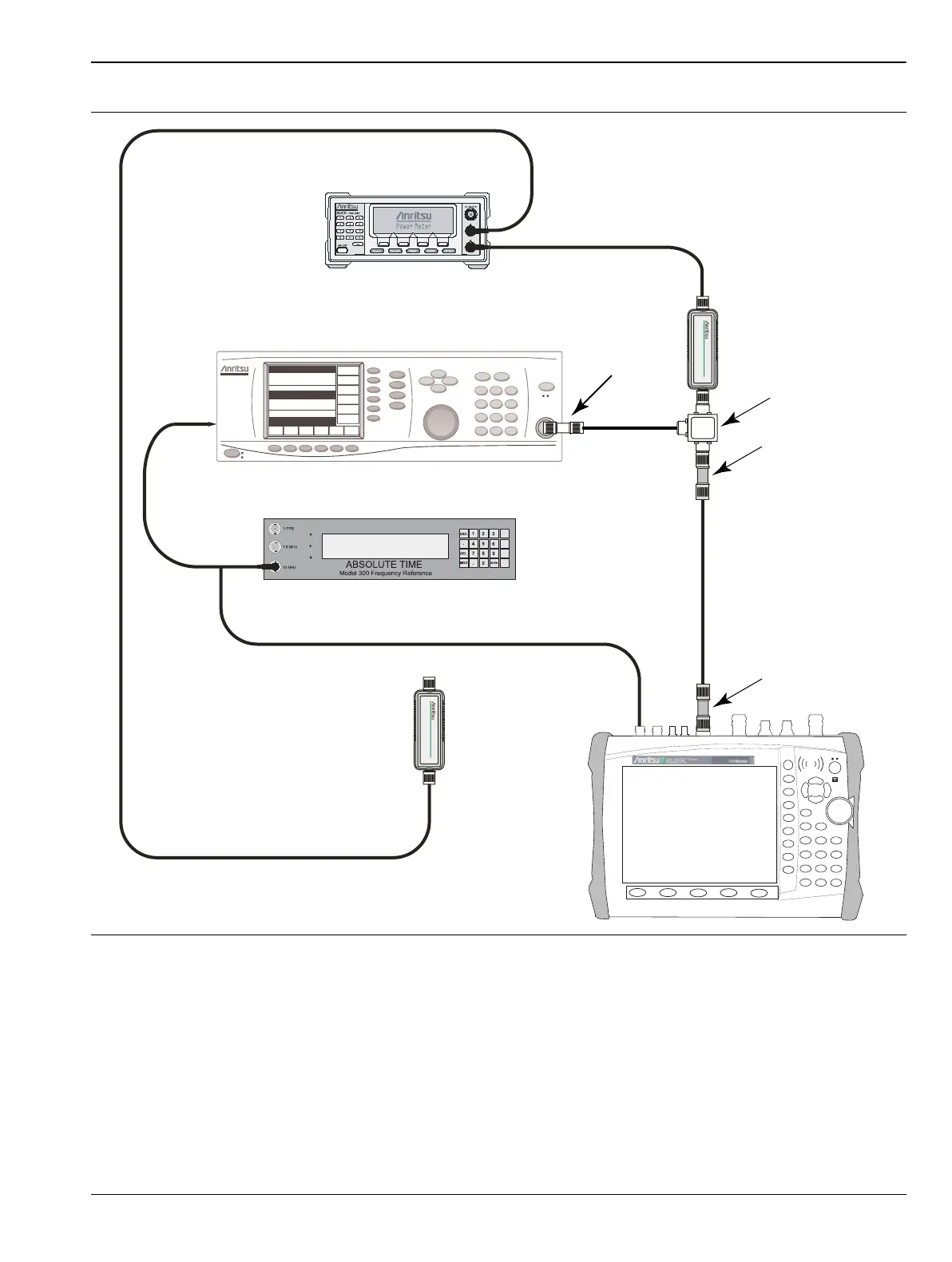

Figure 3-4. Amplitude Accuracy Verification Setup - Test Measurements
Attenuator
Adapter
Adaptor
10 MHz Reference
MG369XA Source
ML2438A Power Meter
Sensor B
Power Splitter
Sensor A
To Next Page
