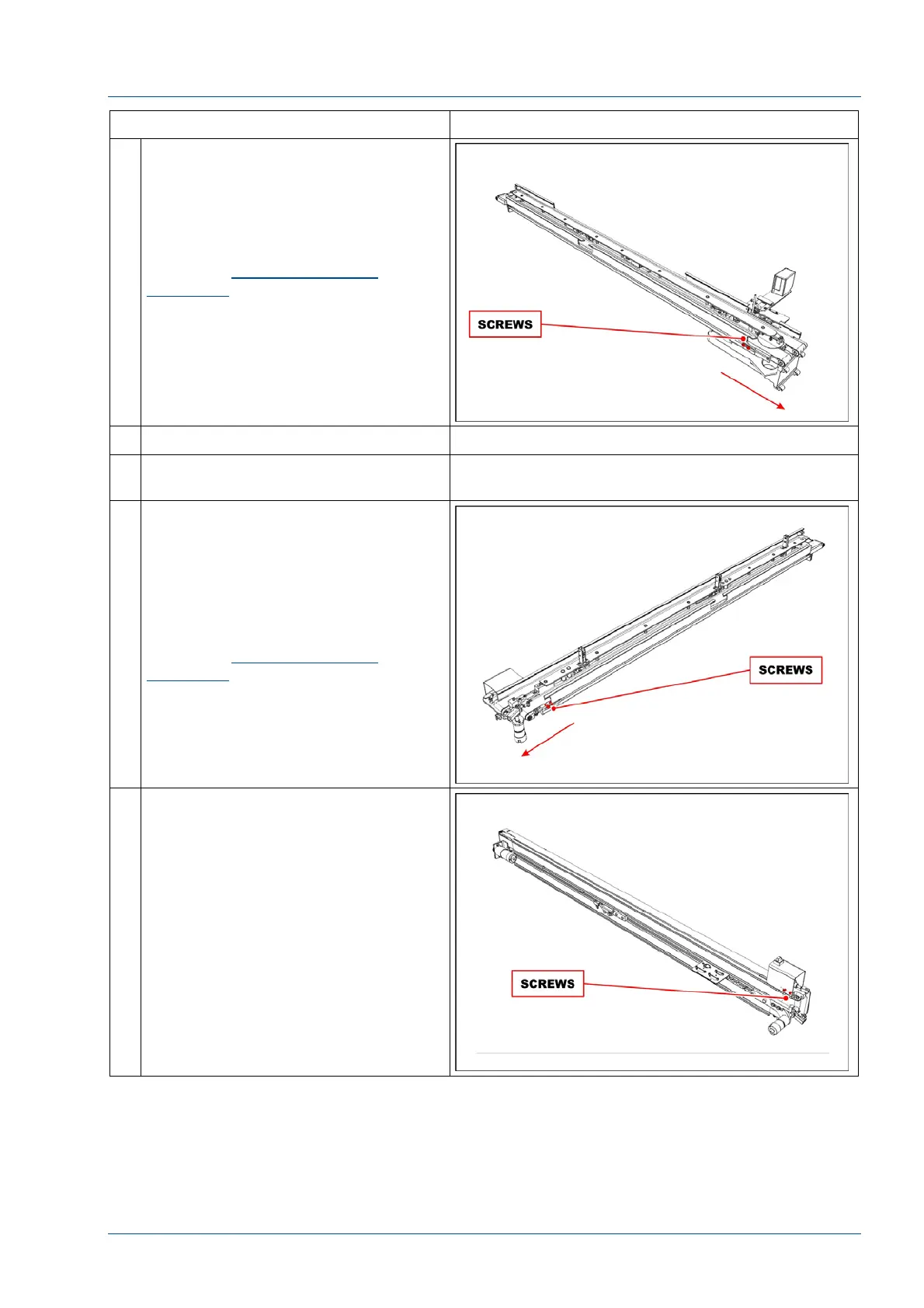

STEPS REFERENCES
23 Loosen the screws shown in the
figure to remove from the belt of
Lane 2.
Install the new belt and use the
screws shown in the figure to apply
tension to the belt of the Lane 2.
Follow the
Verification of belt
tensioning
procedure to verify the
belt tension.
24 Assemble the connector panel.
25 Start to work on the Lane 3-4 section
on the working table
26 Belt 3 Replacement – PFD0301
Loosen the screws shown in the
figure to remove tension from Lane 3
belt.
Install the new belt and use the
screws to apply tension to the belt of
Lane 3.
Follow the
Verification of belt
tensioning
procedure to verify the
belt tension.
27 Remove switch cover by removing
the screws shown in the figure.
