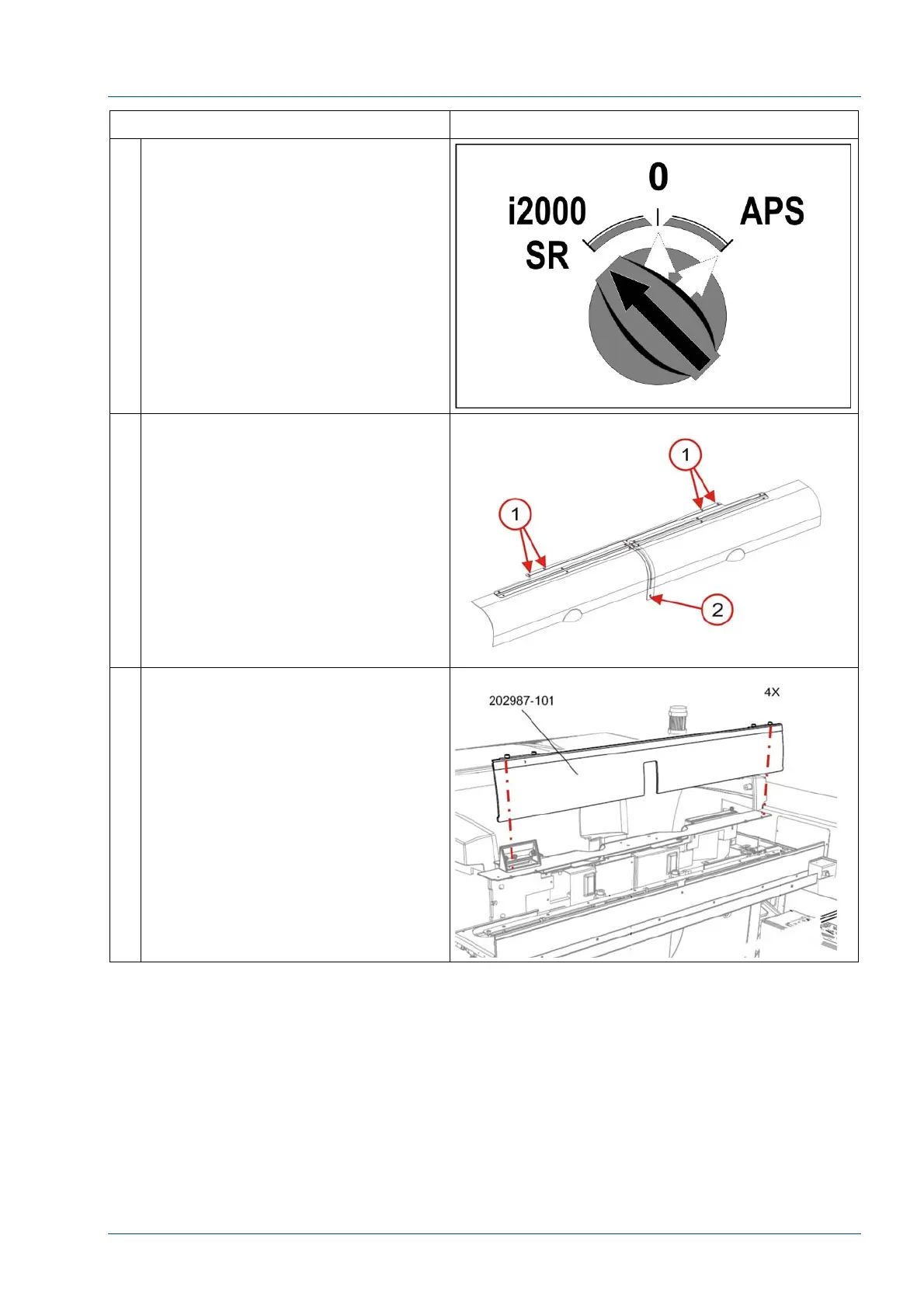

STEPS REFERENCES
2 Switch on the i2000SR IM in
standalone mode. (Power switch in
“i2000 SR” position).
Wait until the green lamp on the light
pole comes on.
3 To access antennae located along
belts 1 and 2, the front and center
covers must be removed.
Remove the screw in the Center Rail
[2].
Remove the Hinge Mount (P/N
203621) and two front covers by
removing the four (4) countersink
screws [1].
4 Remove the center cover by
loosening the four (4) ¼ turn screws.
