Service Manual i2000SR interface module
625798100.APS.5.doc Page 45 of 212

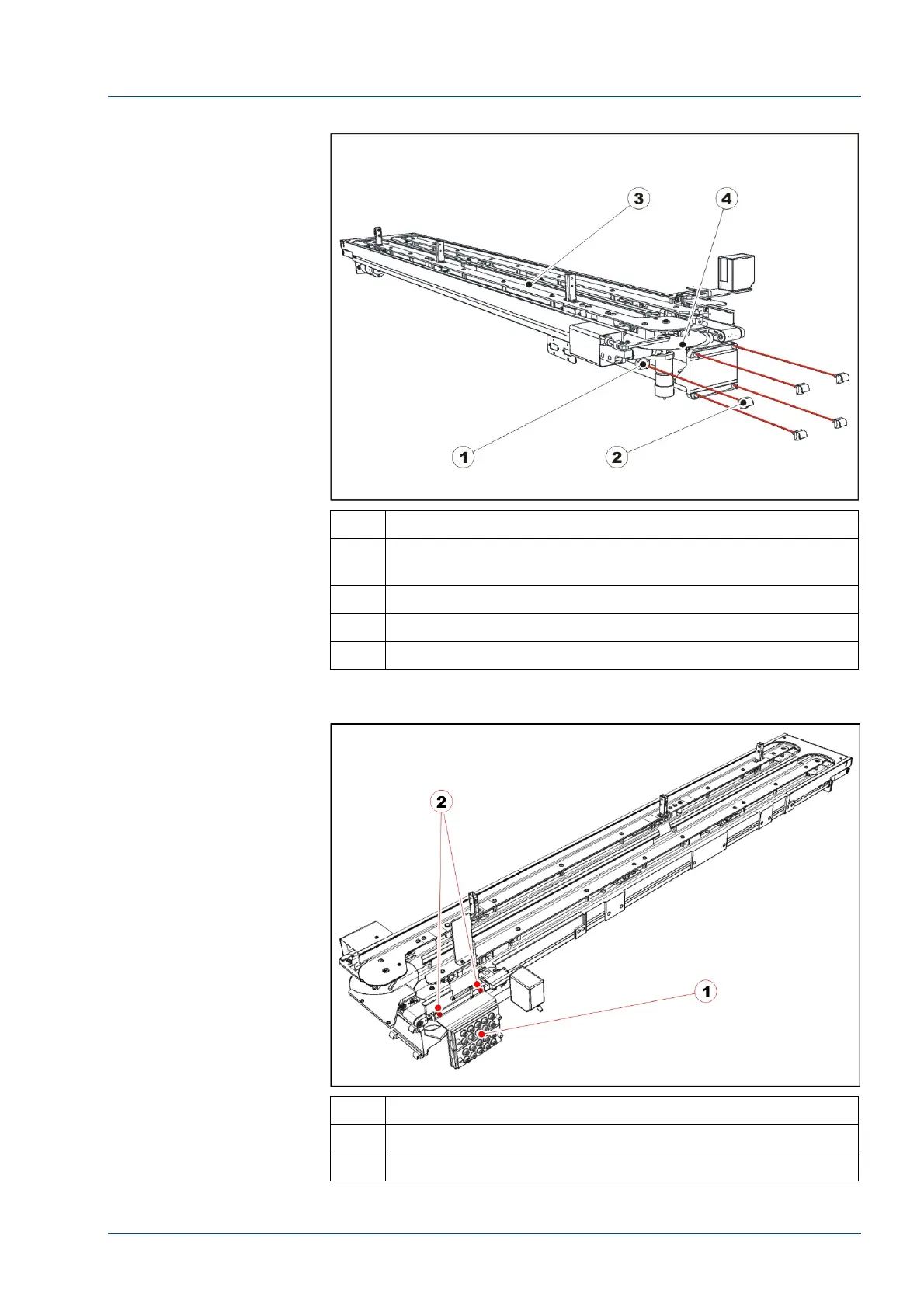

Figure 19 – i2000SR IM mounting bolts
No. Description
1 Metal Screws. For Seismic protection, these metal screws
are replaced with plastic screws
2 Square Spring Nuts
3 i2000SR IM
4 Large Autotex disk
Figure 20 - i2000SR IM pneumatic multi connectors
No. Description
1 Pneumatic multi connectors
2 Pneumatic multi connectors fixing screws
