3-49
3
ATV1027

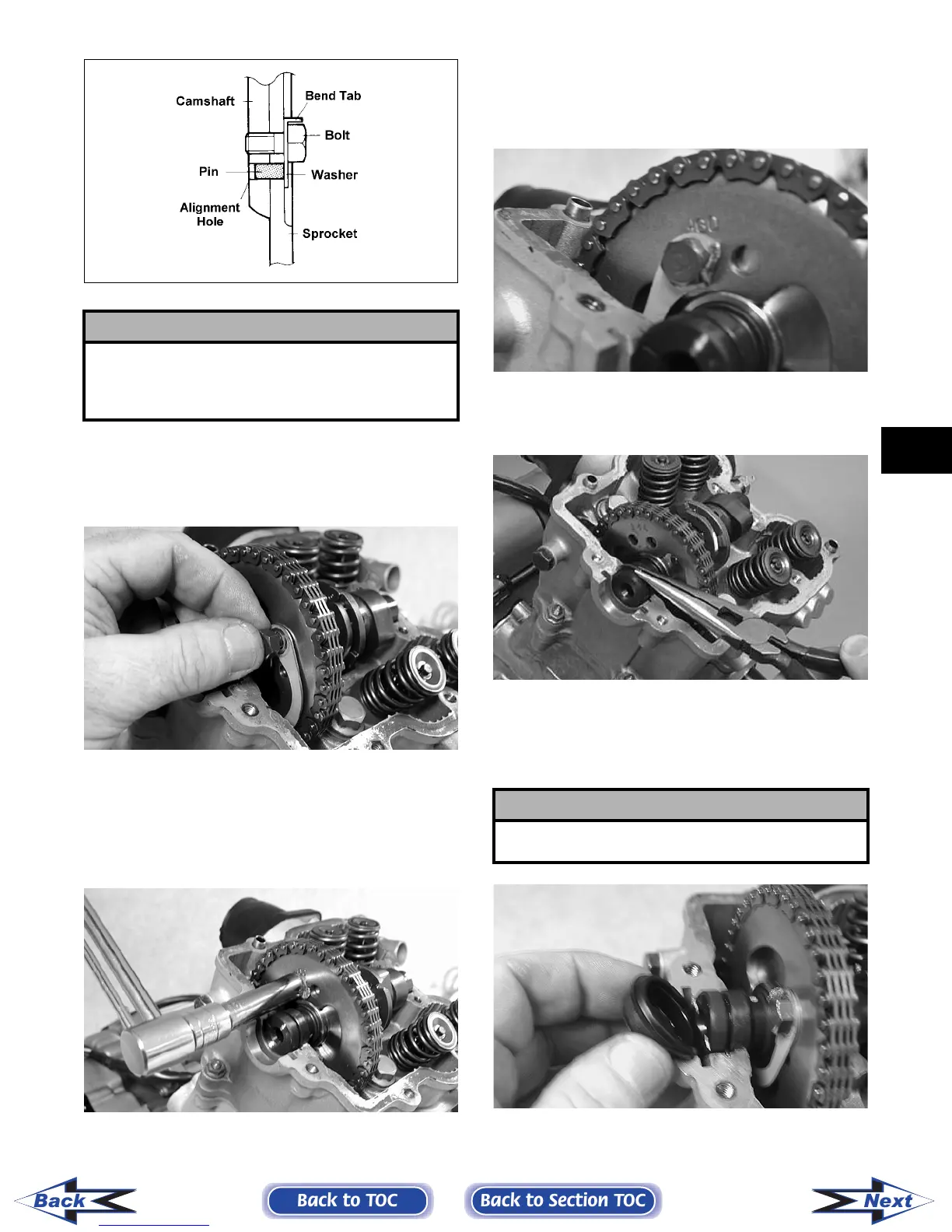

17. Install the first cap screw (threads coated with
red Loctite #271) securing the sprocket and
tab-washer to the camshaft. Tighten only until
snug.
CD464
18. Rotate the crankshaft until the second cap screw
securing the sprocket to the camshaft can be
installed; then install the cap screw (threads
coated with red Loctite #271) and tighten to spec-
ifications. Bend the tab to secure the cap screw.
CD465
19. Rotate the crankshaft until the first cap screw
(from step 17) can be addressed; then tighten to
specifications. Bend the tab to secure the cap
screw.
CD466
20. Place the C-ring into position in its groove in the
cylinder head.
CC012D
21. Install the cylinder head plug in the cylinder
head with the open end facing downward and
toward the inside.
CD468
! CAUTION
Care must be taken that the tab-washer is installed
correctly to cover the alignment hole on the
sprocket. If the alignment pin falls out, severe
engine damage will result.
! CAUTION
The open end of the plug must be positioned down-
ward.
