ARRI ALEXA Mini User Manual

42 MVF-1 controls

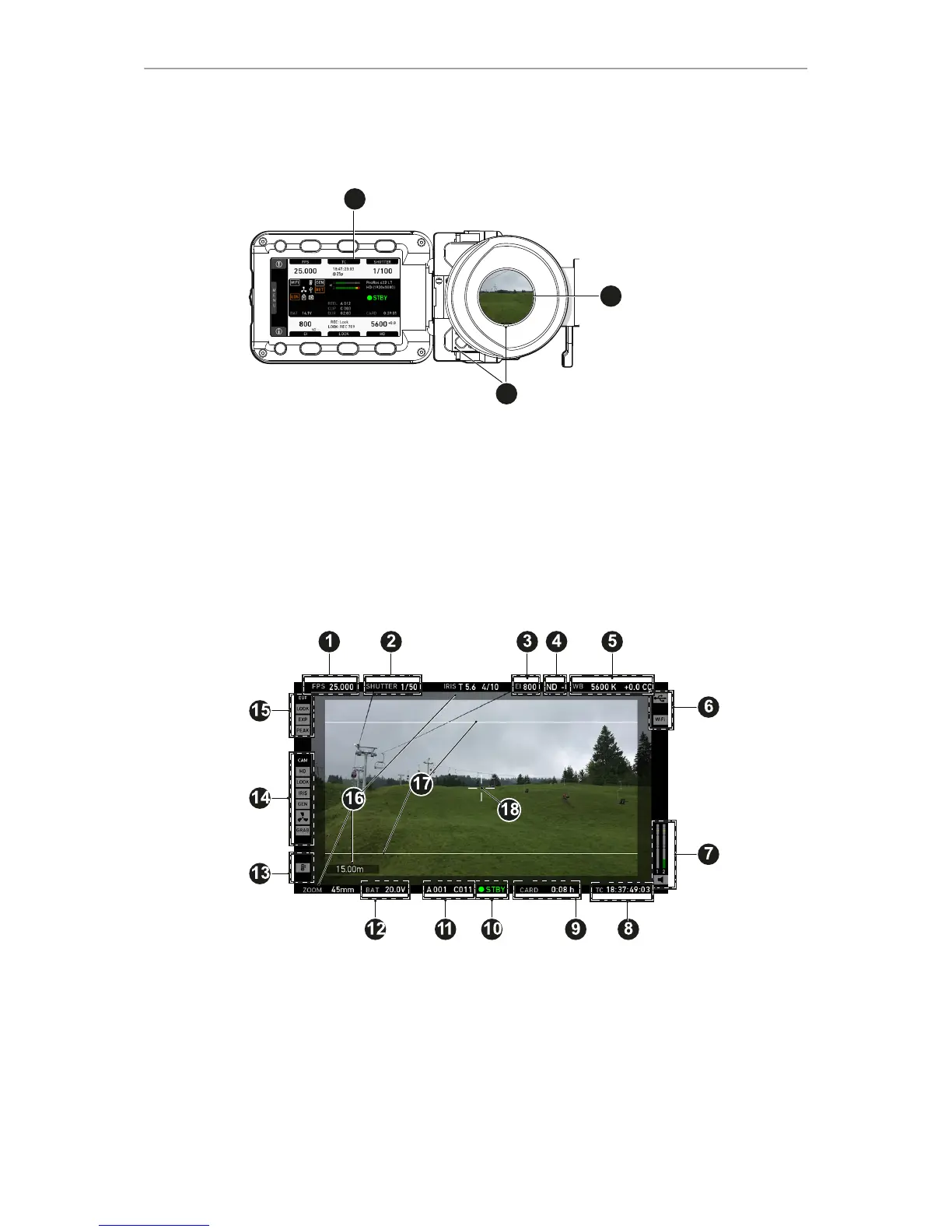

10.1 EVF image/monitor
1
2
3
When you look through the eyepiece, the proximity sensor (3) activates the EVF
display (2).
You can add status data from the home screen (1) to the MVF-1 image (2).
If activated, overlays around the EVF image show essential camera, audio, and
recording statuses.
You can modify/deactivate these status bars via the EVF overlays and EVF status
components menu. For more details, see the User manual.
Note: In Overlay mode (see below), all status bars appear on the active MVF-1
image.
1 Sensor FPS 10 Camera status
2 SHUTTER value 11 Reel and clip info
3 EI Exposure index 12 BAT level/status
4 Internal ND filter 13 Alert and temperature status
5 WB White balance 14 Camera settings icon (Rec format, Rec
gamma, Iris, Fan status, Framegrab, Camera
lock)
6 Icons for USB status, lens motor calibration
request, WiFi status
15 EVF image status (EVF gamma, EVF
exposure tool, EVF peaking)
7 Audio status 16 LDS info
8 TC Timecode (if enabled) 17 Framelines
9 CARD capacity/status 18 Center mark (here: cross)

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
