ARRI ALEXA Mini User Manual

108 MENU > Recording

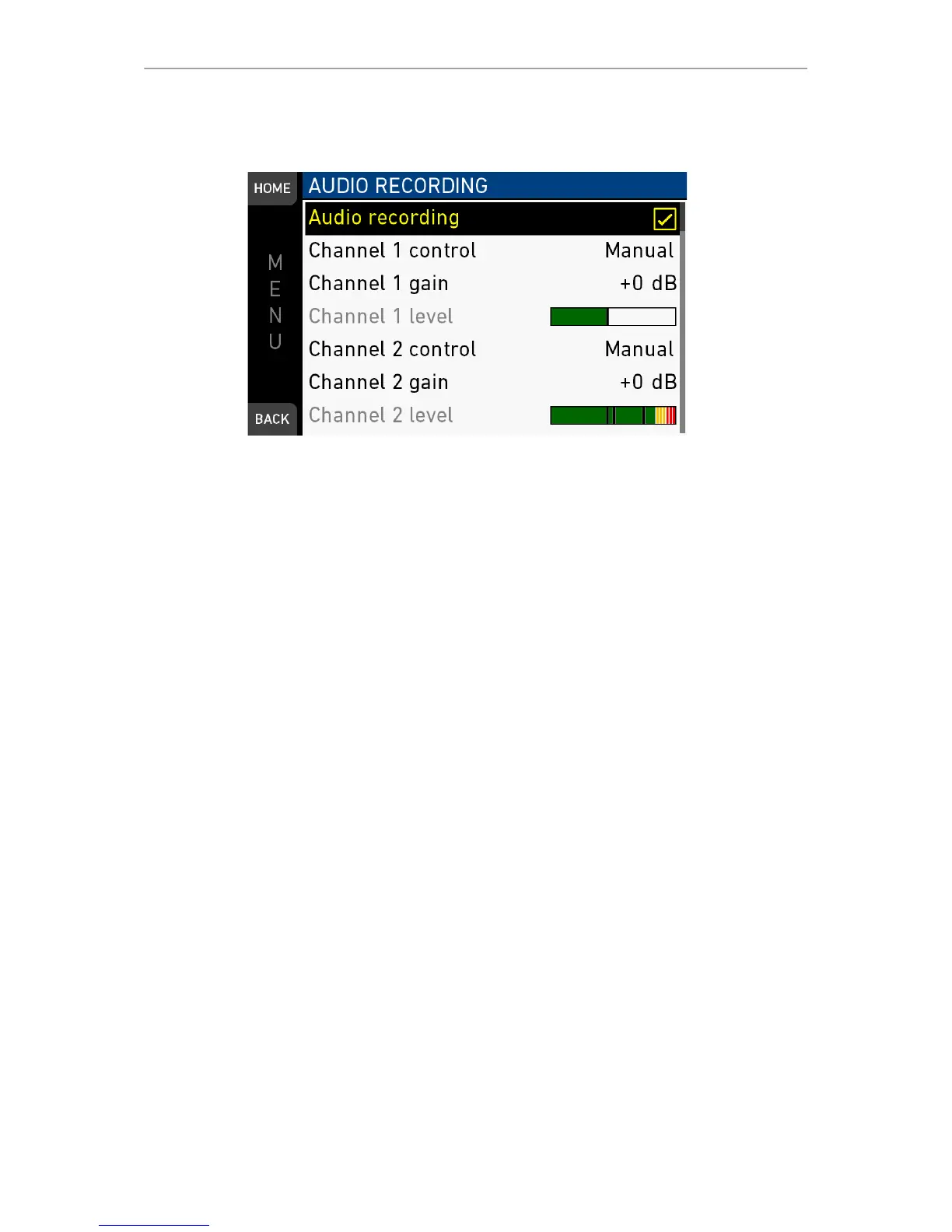

15.7 Audio recording
1. Audio recording: Sets audio recording On or Off.
2. Channel 1/2 control: Sets control mode of channel to Manual, Manual+Limiter or
Auto.
3. Channel 1/2 gain: Sets gain of channel in Manual and Manual+Limiter control
mode between 0 and +30 dB.
4. Channel 1/2 level: Shows current level of channel signal in dBFS.
5. Test tone Sets 1kHz sine test tone on all channels and outputs to Off, -9 dBFS, -18
dBFS or -20 dBFS.

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
