118 MENU > Monitoring
Peaking mode: Toggles between color peaking (to overlay in-focus areas with a color),
and aperture peaking (to enhance object edges only).
Peaking level: Sets a peaking strength from 1 (= minimum) to 20 (= maximum).
Peaking offset shift: Adjusts the threshold for color peaking to set in, relative to the
peaking level.
Note: A negative offset shift (in particular with high ASA ratings) can increase the
peaking results.

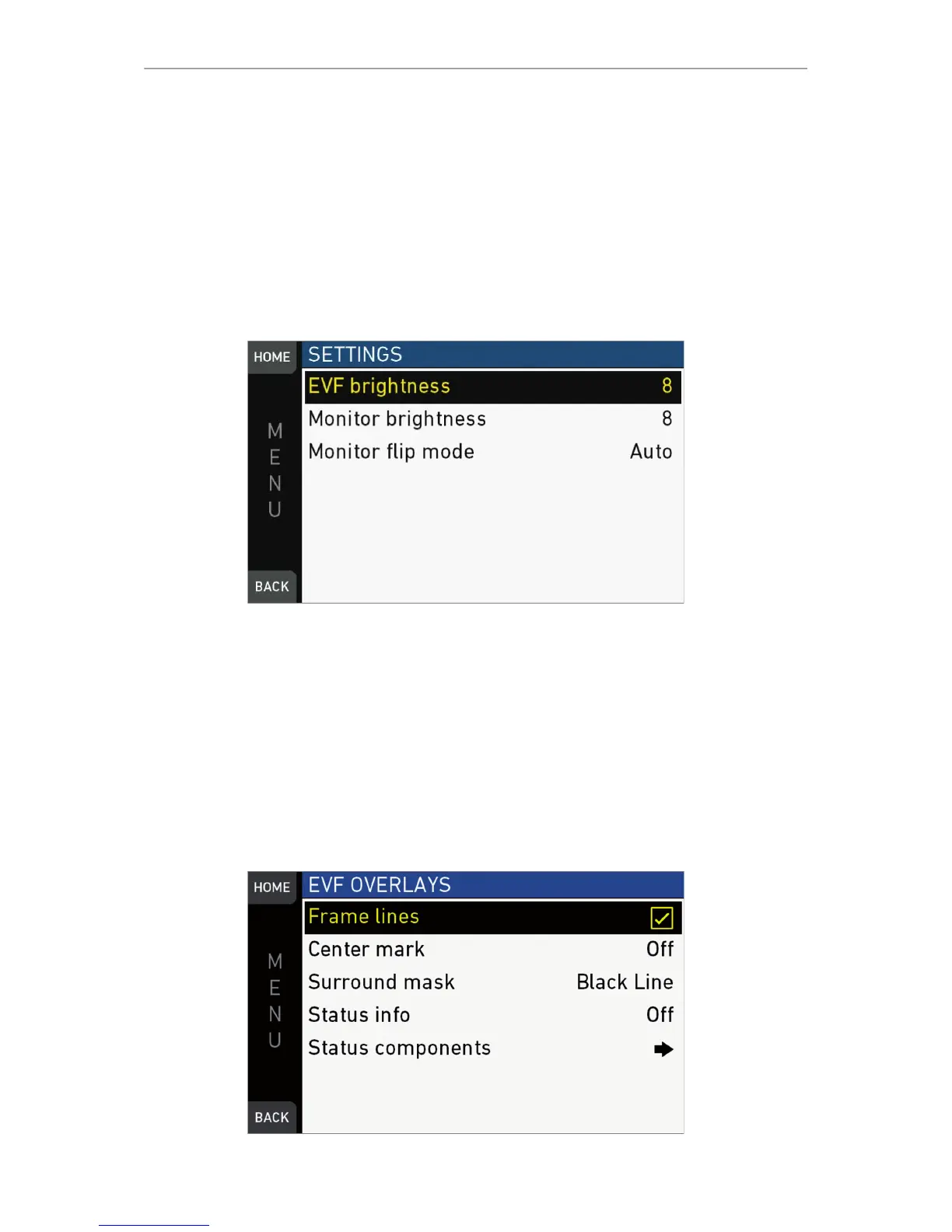

17.1.5 Settings
MENU > Monitoring > EVF/Monitor > Settings
Determines the illumination/orientation of viewfinder and monitor.
EVF brightness: For eyepiece OLED illumination from 1 (= minimum) to 10 (=
maximum).
Monitor brightness: For monitor TFT backlight from 1 (= minimum) to 10 (= maximum).
Monitor flip mode: For either Normal, Flipped, or Auto monitor orientation. Auto flips
the monitor display automatically via position sensor.
17.1.6 EVF overlays / Monitor overlays / SDI overlays
MENU > Monitoring > EVF/Monitor > Monitor overlays
MENU > Monitoring > EVF/Monitor > EVF overlays
MENU > Monitoring > SDI > SDI processing > Overlays
