Appendix 157
25.2 Dimensional drawings
Dimensional drawings are attached at the end of this document. They can also be
downloaded from the ARRI website:
https://www.arri.com/alexamini

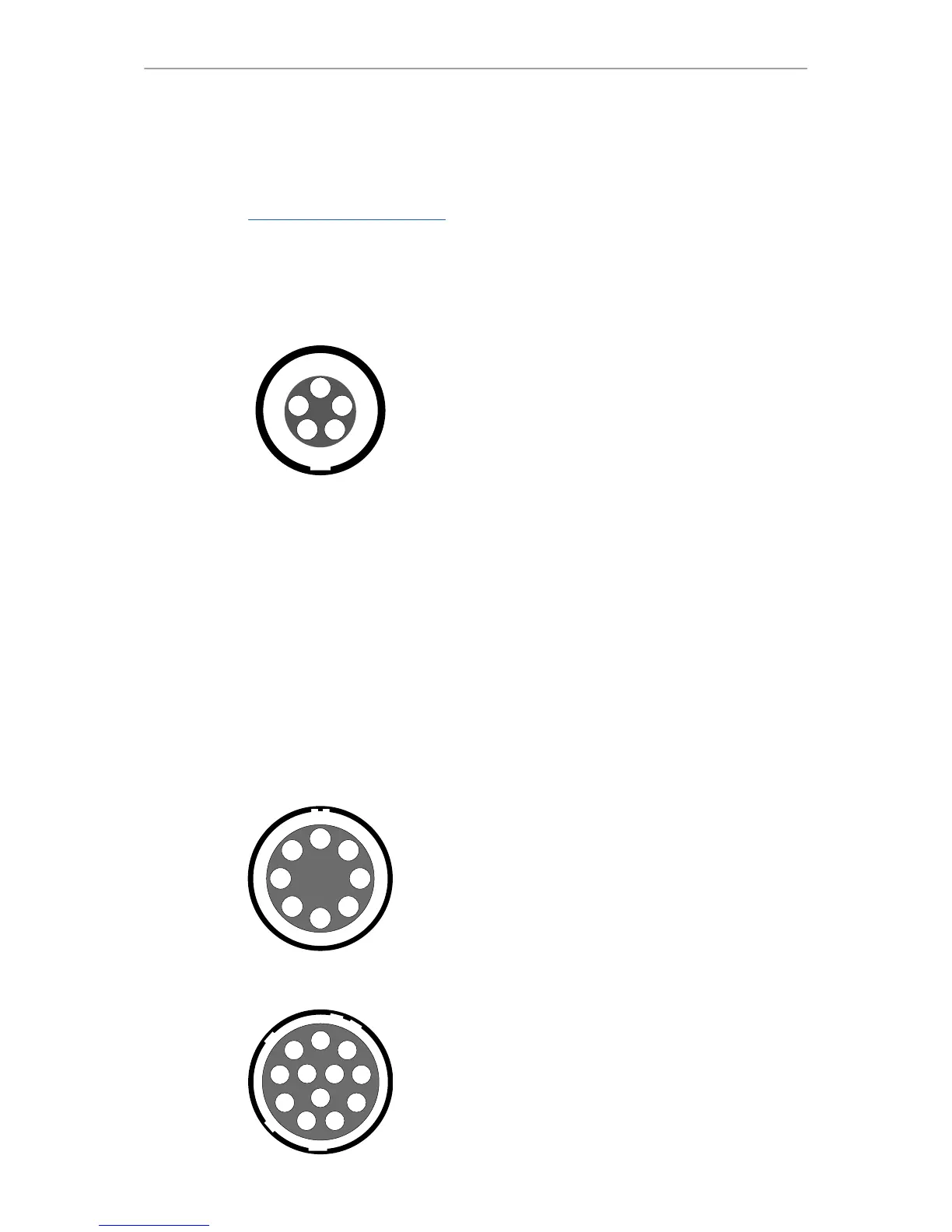

25.3 Pin-outs
Note: All pin-outs for camera interfaces appear as seen by the user.
2
4
3
1
5
Audio
Connector ID: LEMO EEG.00.305
1 Gnd
2 Line 1 (+)
3 Line 1 (-)
4 Line 2 (+)
5 Line 2 (-)
Audio cable K2.0006171
ARRI offers a cable with a matching connector to create
audio adapters. The following table shows the wire
assignments of this cable.
Function Wire
Gnd Shield
Line 1 (+) White with blue ring
Line 1 (-) Blue with white ring
Line 2 (+) White
Line 2 (-) Blue
1
2
3
4
5
6
7
8
BAT
Connector ID: LEMO EEJ.2B.308
1 Batcom
2 Powergnd
3 Powergnd
4 Powergnd
5 Batcom Gnd
6 Batplus
7 Batplus
8 Batplus
5
6
7
8
12
11
4
3
2
10
9
1
ENG (on PL lens mount steel)
Connector ID: Hirose HR10-10R-12S(73)
1 -/-
2 -/-
3 Gnd
4 -/-
5 -/-
6 12 V
7 -/-

Table of Contents

Other manuals for ARRI ALEXA Mini

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ARRI ALEXA Mini and is the answer not in the manual?

ARRI ALEXA Mini Specifications

General IconGeneral
Sensor TypeALEV III CMOS
Dynamic Range14+ stops
Recording FormatsARRIRAW, ProRes
Power Input10.5-34 V DC
Base SensitivityEI 800
Lens MountPL mount
Weight2.3 kg
ISO Range160 to 3200
Frame Rates0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions185 mm x 125 mm x 140 mm
Power ConsumptionApprox. 50 W
OutputsHD-SDI
Sensor SizeSuper 35 format
