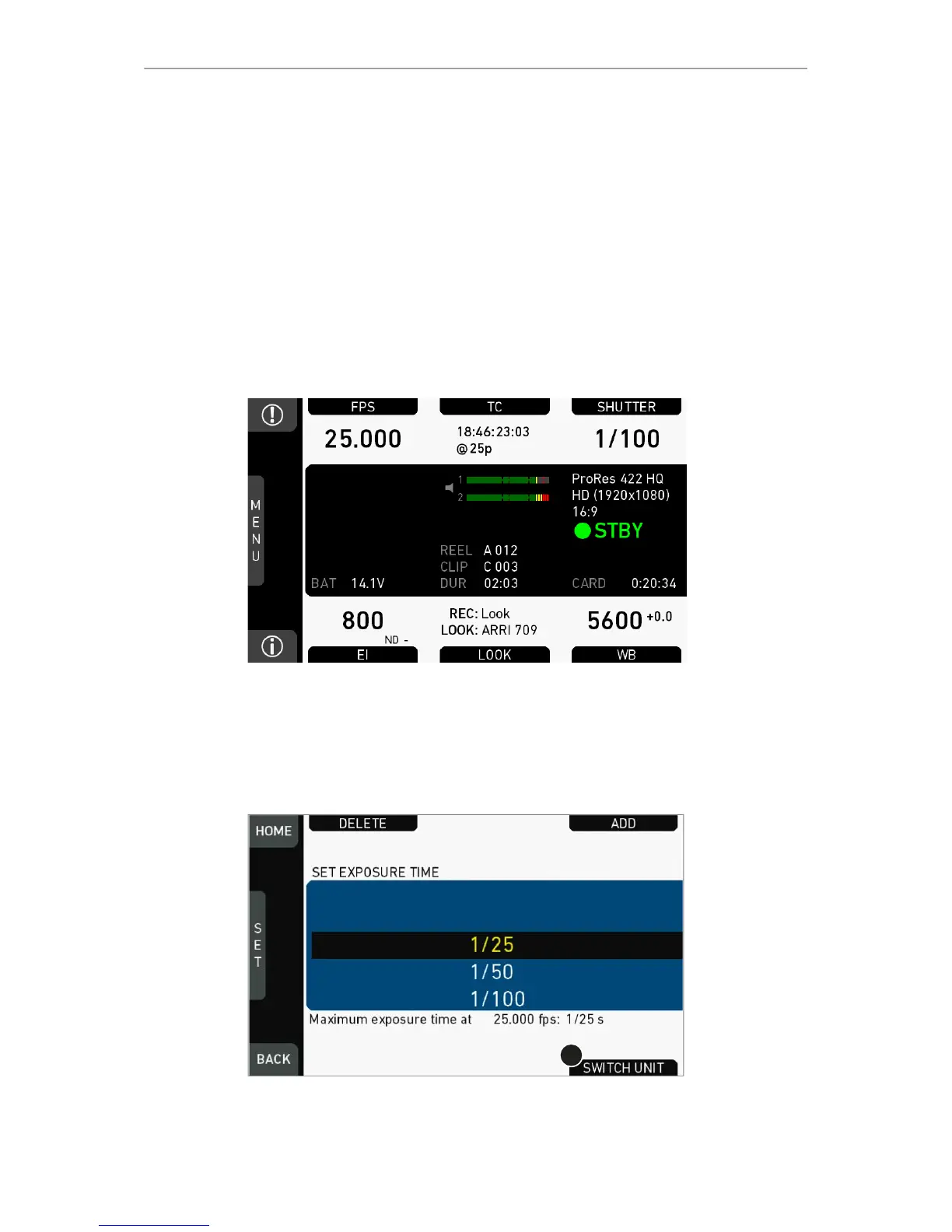

Home screen 73
13.6 SHUTTER settings
You can select your preferred shutter unit: Shutter angle converts exposure time into
the angle of a virtual rotating mirror shutter as in film cameras.
Note: A fixed angle creates varying exposure times with varying frame rates. You can
set angles from 5.0 to 356.0 degrees.
Exposure time shows the effective sensor exposure time. With varying frame rates, it
remains identical and can be set from 1/25 to 1/8000 seconds.
Note: Maximum exposure time with a given frame rate is 1/fps, with a limit of 1/25s.
For constant exposure time over the full range of used frame rates, set it to 1/(highest
used frame rate).
13.6.1 Selecting a SHUTTER unit
1. Press SHUTTER (1) to set the shutter unit:
A list opens (skip forward to "SHUTTER list").
2. Press the jogwheel (1) to open the SHUTTER list:
SHUTTER list
1
1. Press SWITCH UNIT (1).

Table of Contents

Other manuals for ARRI ALEXA Mini

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ARRI ALEXA Mini and is the answer not in the manual?

ARRI ALEXA Mini Specifications

General IconGeneral
Sensor TypeALEV III CMOS
Dynamic Range14+ stops
Recording FormatsARRIRAW, ProRes
Power Input10.5-34 V DC
Base SensitivityEI 800
Lens MountPL mount
Weight2.3 kg
ISO Range160 to 3200
Frame Rates0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions185 mm x 125 mm x 140 mm
Power ConsumptionApprox. 50 W
OutputsHD-SDI
Sensor SizeSuper 35 format
