122 MENU > Monitoring
SDI processing: Configures the SDI processing elements.
•
Surround view: Sets SDI surround view on or off.
•
Exposure tool: Allows you to select the exposure tool. For more information,
see "Exposure tool", page 116.
•
Peaking: Peaking highlights in-focus image sectors for better focus judgement.
For more information, see "Peaking", page 117.
•
Overlays: Configures graphical overlays of processed SDI out. Almost identical
to EVF overlay configuration. For more information, see "EVF overlays /
Monitor overlays / SDI overlays", page 118.
17.3 Frame lines
NOTICE
The camera contains a set of default frame lines with standard aspect ratios. You
can also create import external frame lines in XML format.
Try the frame line composer on the ARRI website.

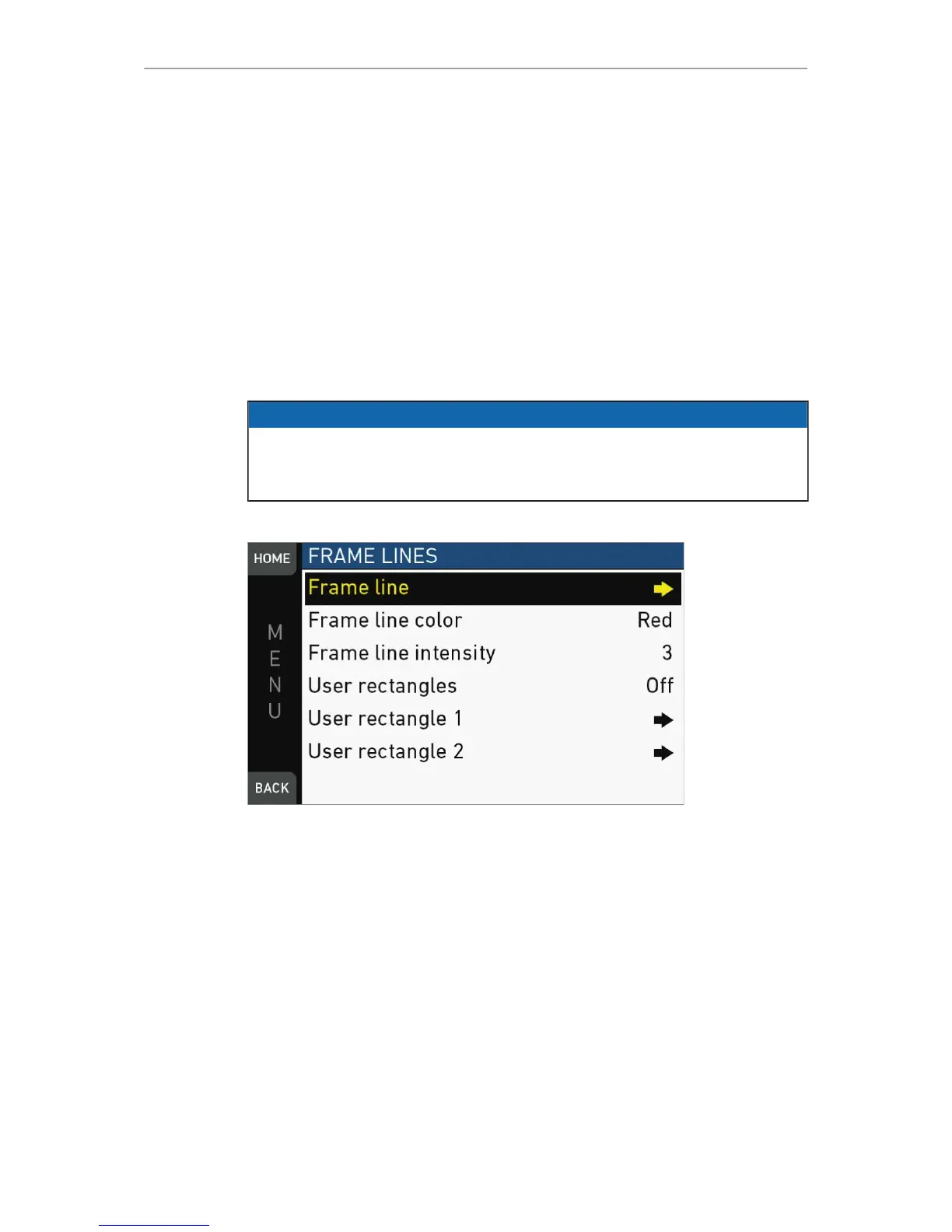

MENU > Monitoring > Frame lines
Frame line: Sets the aspect ratio of a frame line.
Frame line color: Sets the color of frame, center mark, user rectangle, surround mask
(if mask is set to Colored line).
Frame line intensity: Sets the brightness of frame line components.
User rectangles: Allows you to add two user-defined frame line rectangles.
User rectangle 1 & 2: Configures user rectangle sizes and positions.

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
