ARRI ALEXA Mini User Manual

Camera preparation 143
22.2 Mounting to a bridge plate
To mount the camera to a bridge plate, you need the following accessories and tools:
Step Accessory Mount to Tool
1 MAP-2 camera (bottom) 3.0 mm Allen key
2 BAP-4 MAP-2
3 BP-8 BAP-4
Flat screwdriver (no
coin!)

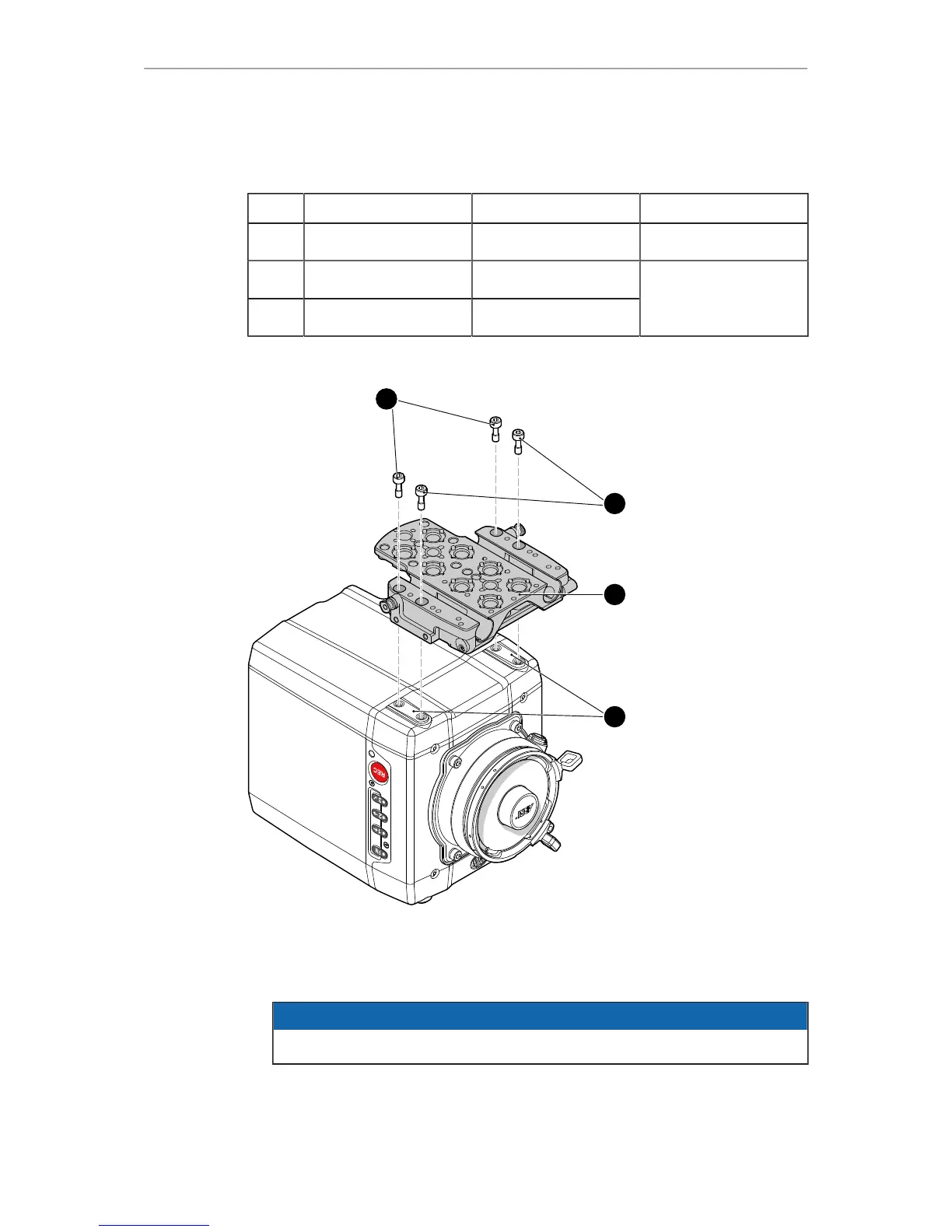

Step 1: Mounting the MAP-2 to the camera
2
1
1
3
1. Place the camera bottom-up.
2. Place the MAP-2 (2) exactly above the mounting points (3) of the camera.
3. With the Allen key, attach the screws (1) to the camera and tighten.
NOTICE
Always ensure a proper lock.

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
