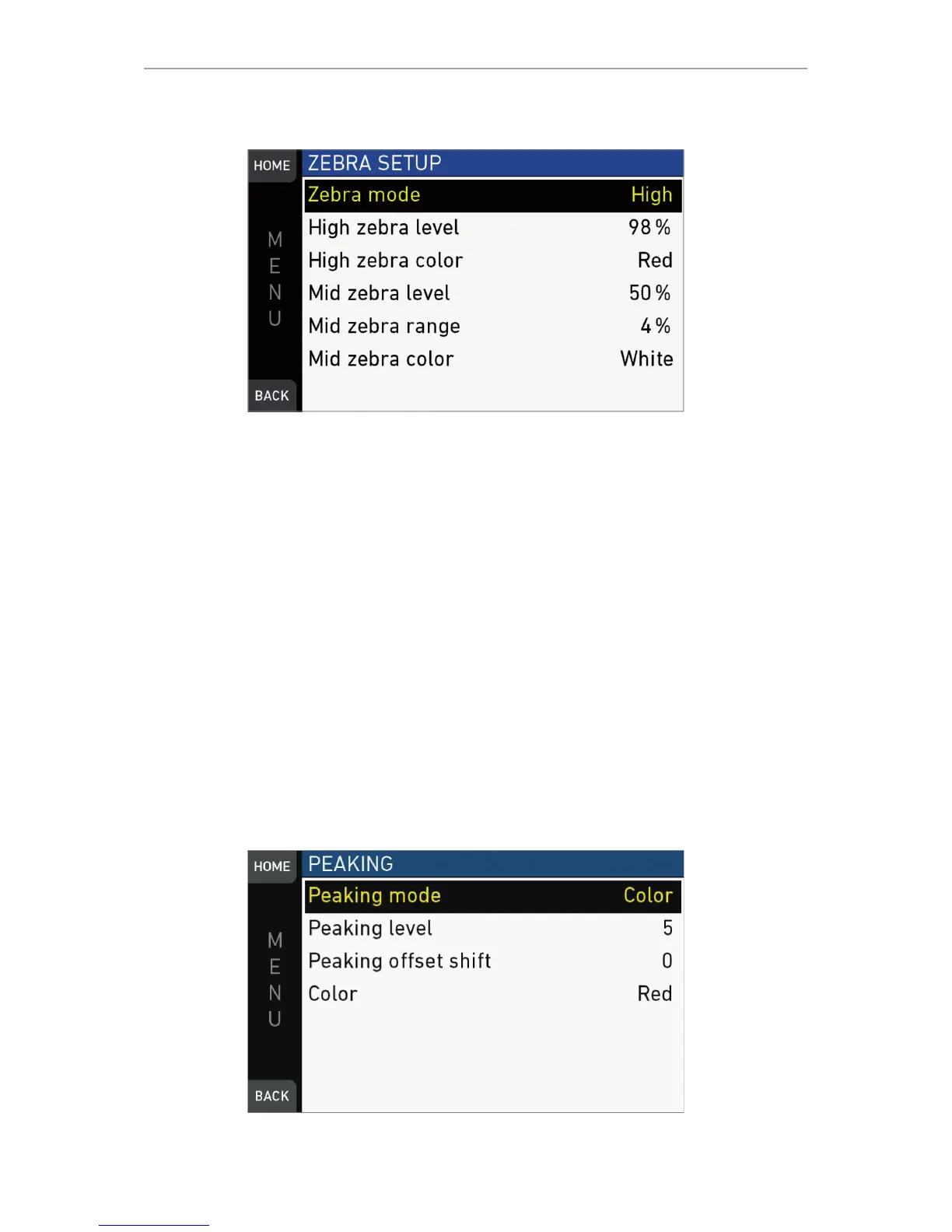

MENU > Monitoring 117
MENU > Monitoring > Exposure tools > Zebra setup
Zebra mode: Sets the zebra mode to High, Mid, or both.
High zebra level: Sets the exposure level (in %) above which high zebra is active.
High zebra color: Sets the pattern color.
Mid zebra range: Sets the active range (in %) around a mid zebra level.
Mid zebra color: Sets the pattern color.
Selecting false color converts the image to black-and-white, and replaces luminances
by the following colors:
Luminance range
White clipping
Just below white clipping
One stop over medium gray (Caucasian skin)
18 % medium gray
Just above black clipping
Black clipping
Signal level
100 to 99 %
99 to 97 %
56 to 52 %
42 to 38 %
4.0 to 2.5 %
2.5 to 0.0 %
Color
Red
Yellow
Pink
Green
Blue
Purple
17.1.4 Peaking
MENU > Monitoring > EVF/Monitor > Peaking
Peaking highlights in-focus image sectors for better focus judgement. Activation by
user button or by pressing PK on the viewfinder.
