ARRI ALEXA Mini - I;O Panel Connector Identification

Connectors 25
7.2 I/O panel
NOTICE
If the power supply is interrupted with the camera switched on, the camera will
automatically repower and boot-up on reconnection.
1
3
2
4
5
6
7

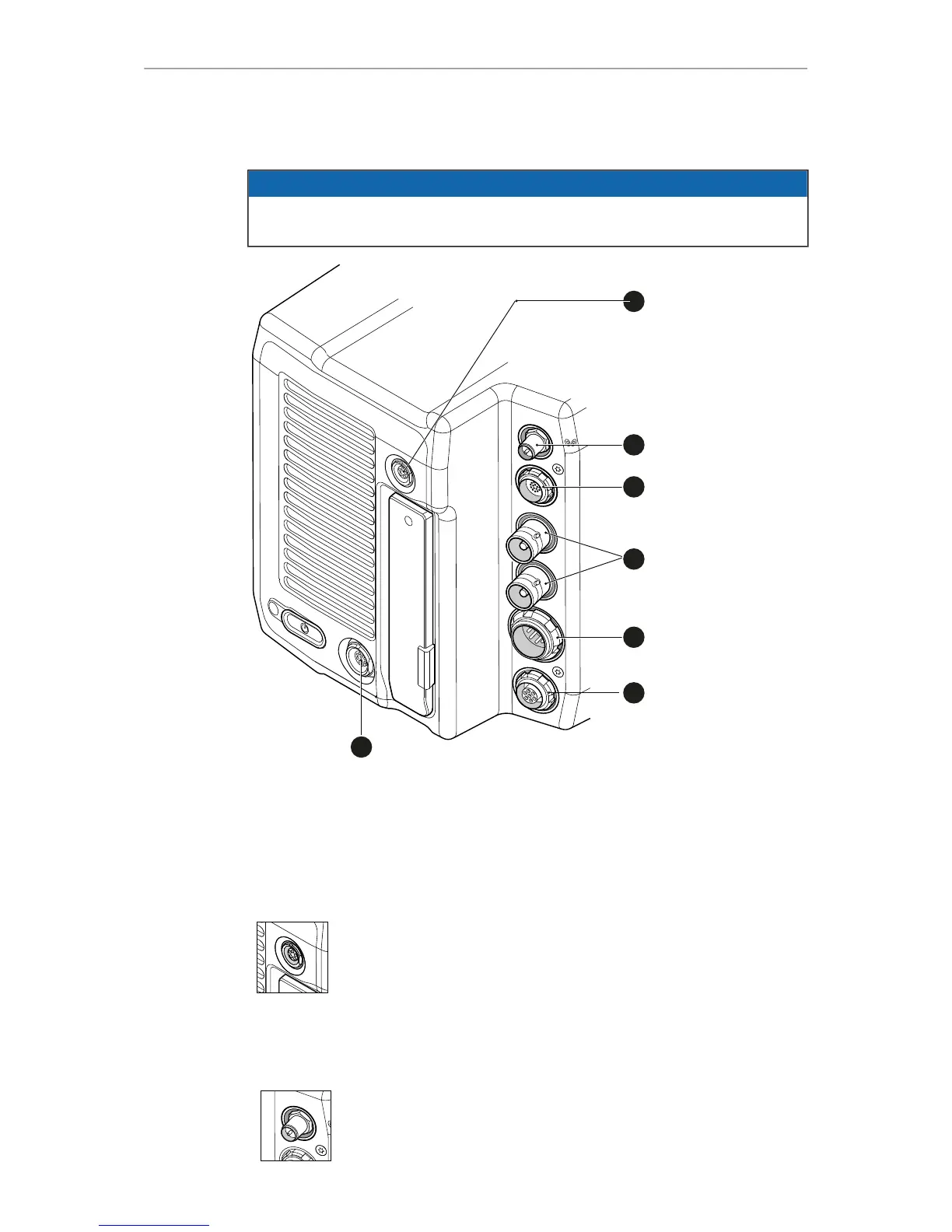

1 Timecode connector 5 BAT main power in
2 White radio antenna 6 EXT connector
3 MVF-1 7 Ethernet connector
4 HD-SDI image out 1 & 2
TC (5-pin LEMO)
The TC connector is a 5-pin LEMO socket. It accepts and distrib-
utes LTC (Longitudinal Time Code) signals.
Note: The camera has a TC buffer to keep a synced external TC
for up to three minutes while camera power is disconnected.
White radio antenna
Mounting point for white radio antenna for lens control.
