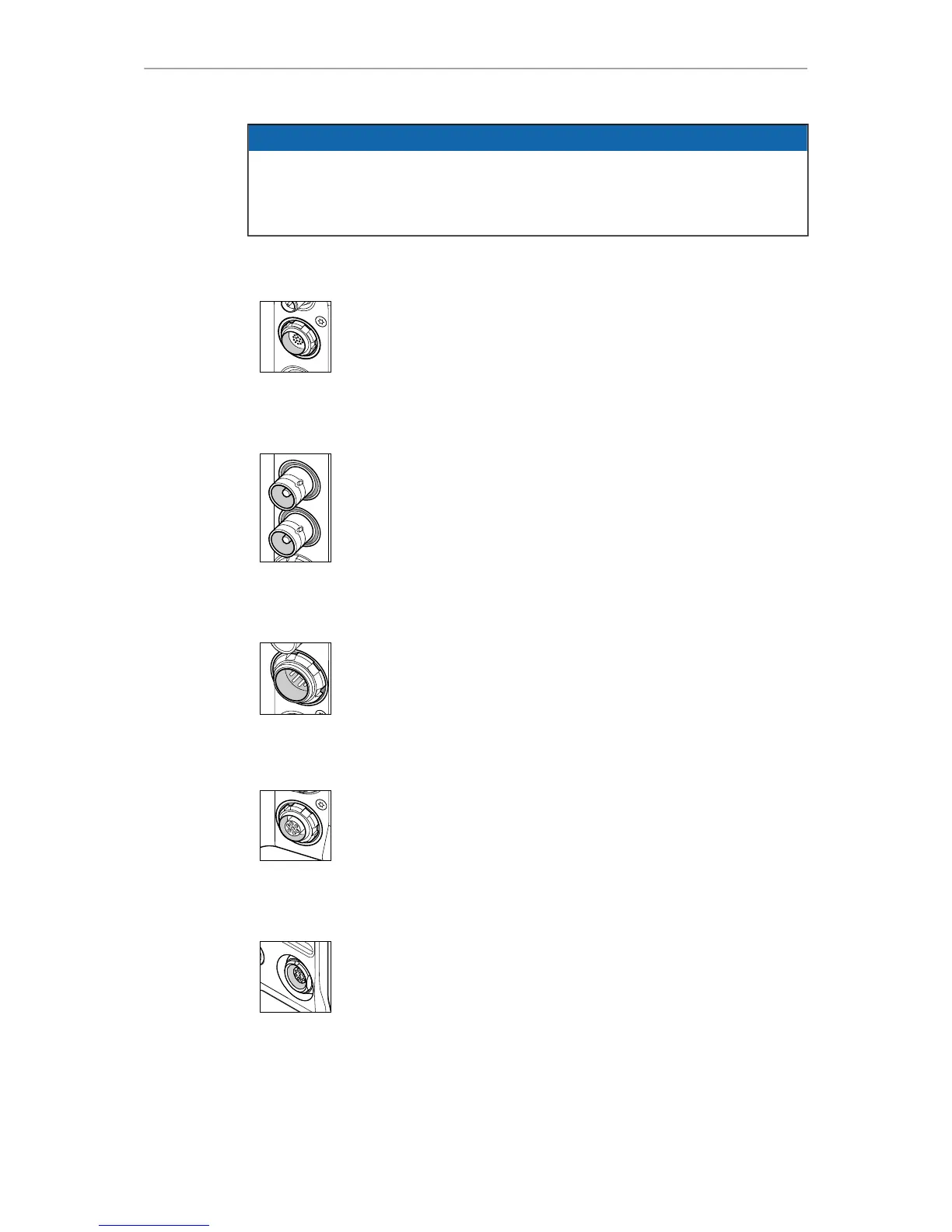

26 Connectors
NOTICE
Do not leave the antenna connector open during operation or transport. The radio
module inside could be damaged by electrostatic discharge on the open connector.
ARRI recommends using the originally supplied antenna only (order number:
K2.0001996).
EVF (16-Pin ODU)
Hot swappable interface for MVF-1.
SDI OUT 1 & 2 (BNC)
Both BNC outputs deliver image outputs in 1920 x 1080 422
1.5G, 422 3G, 444 3G and 422 6G* single link formats. Through
a hardware modification, SDI 2 can be reconfigured into an
SYNC connector for analog genlock signals (Black burst, Tri-lev-
el sync). Please contact an ARRI camera service center for more
information.
*Only on SDI 2 in UHD recording format
BAT (8-pin LEMO)
Via cables KC50-S (2 m, straight) and KC50-SP-S (coiled), this
main power supply input accepts 10.5 to 34 V DC.
EXT (7-pin LEMO)
A connector for external accessories, carrying two CAN bus-
es and accessory power output at camera voltage level (1.0 A
max.). With an external adapter, R/S functionality is supported.
ETH (10-pin LEMO)
Standard Ethernet connectors don't deliver the durability and re-
liability required by ARRI, so ALEXA Mini uses a 10-pin LEMO
connector. A special cable, available from ARRI (model KC-153-
S), is required to connect the Ethernet connector to a standard
RJ-45 Ethernet connector.
