ARRI ALEXA Mini User Manual

MENU > System 135

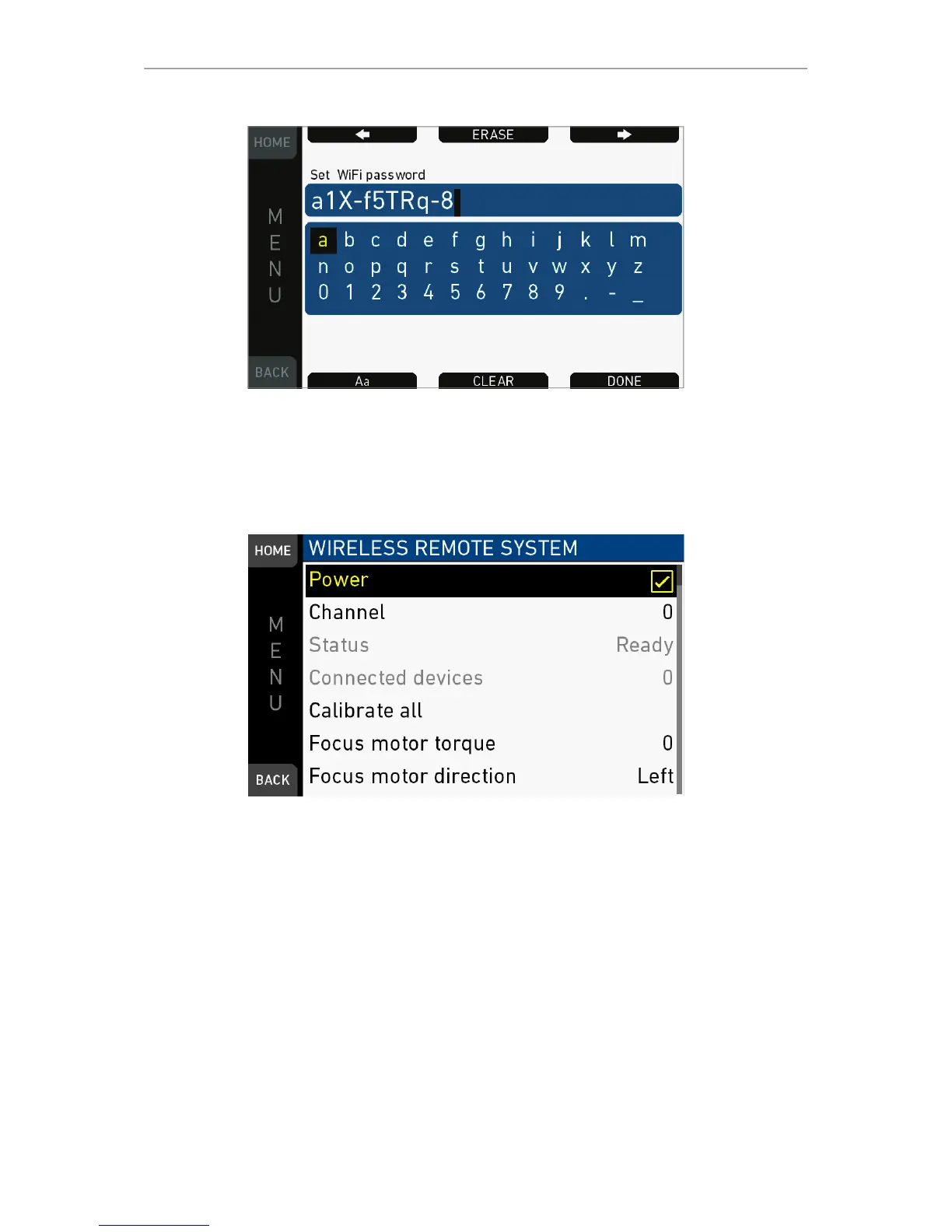

18.7 Wireless remote system
The wireless remote system menu screen controls the WRS white radio settings.
The WRS system connects the camera to electronic accessories like the WCU-4 for
wireless camera and lens remote control.
Power: Switches white radio module power on or off.
Channel: Sets the channel of the WRS module.
Status: Shows the status of the WRS module.
Connected devices: Shows the number of WRS devices connected to the camera.
Calibrate all: Triggers a calibration of all connected lens motors. Note: Do not trigger a
calibration unless all connected motors are attached to the lens.
Focus/Iris/Zoom motor torque: Sets the torque strength of the focus/iris/zoom axis
motor.
Focus/Iris/Zoom motor direction: Sets the motor direction of the focus/iris/zoom axis
motor. The direction may have to be changed depending on the mounting position of
the motor (left/right side or top/bottom).

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
