ARRI ALEXA Mini User Manual

Home screen 79
1
2
3

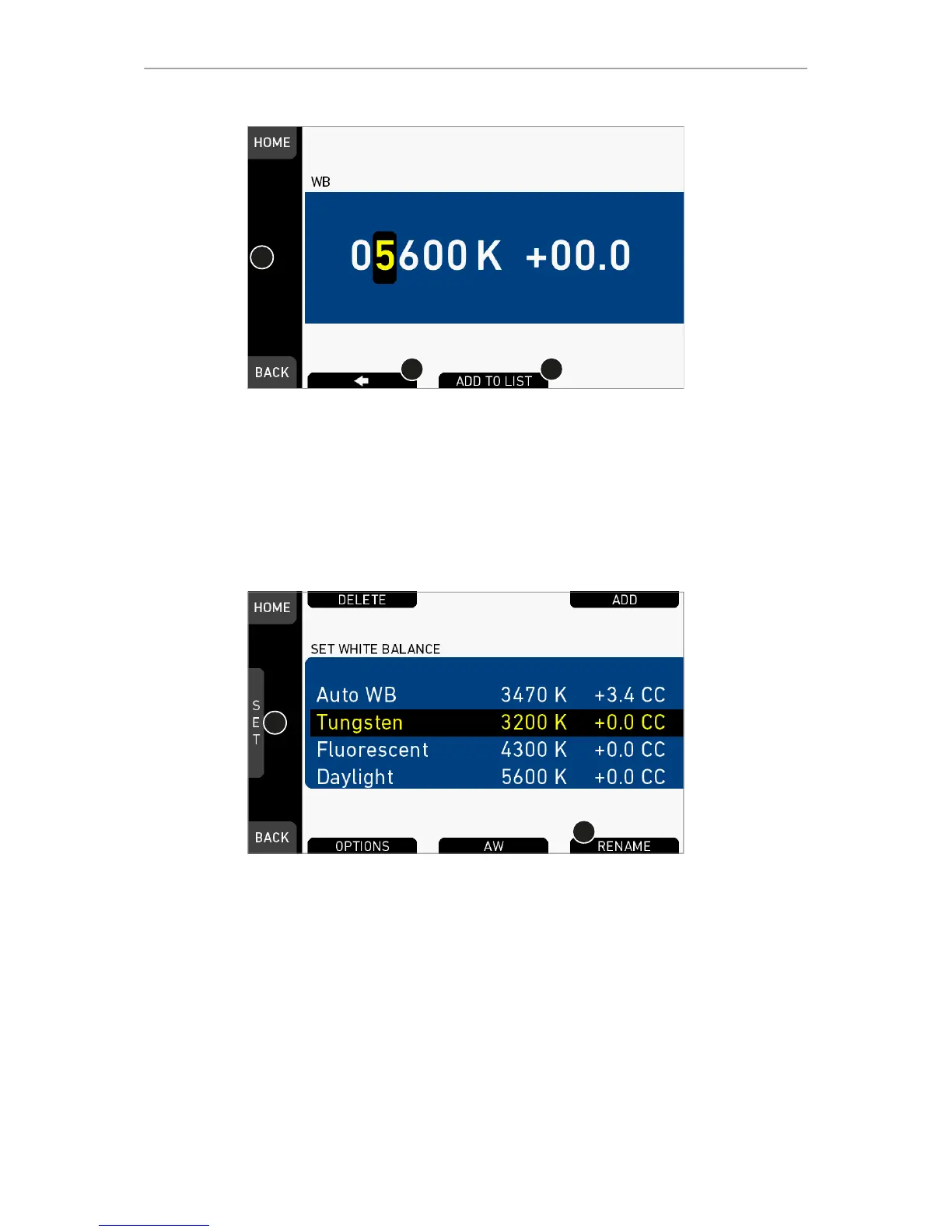

3. Upon pressing ADD, an editor opens.
4. Create the WB and CC values with the jogwheel (1).
°
Scroll up or down to increase/decrease.
°
Press the jogwheel to select the next digit.
5. Press ADD TO LIST (2) to save the changes. Cancel with BACK.
13.7.2 Renaming a WB value
1
2
1. Open the WB list.
2. Via jogwheel (1), scroll to the required file.
3. Confirm by pressing the jogwheel.
4. Press RENAME (2).

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
