NOTICE
To avoid damage while assembling and retrofitting, always place the camera on a
padded, firm, flat and level surface.
Work on an unpowered camera only.
23.1 MVF-1 and EVF cable
Connecting the EVF cable to the camera
2
1
Note: Use original ALEXA Mini-EVF cables only.

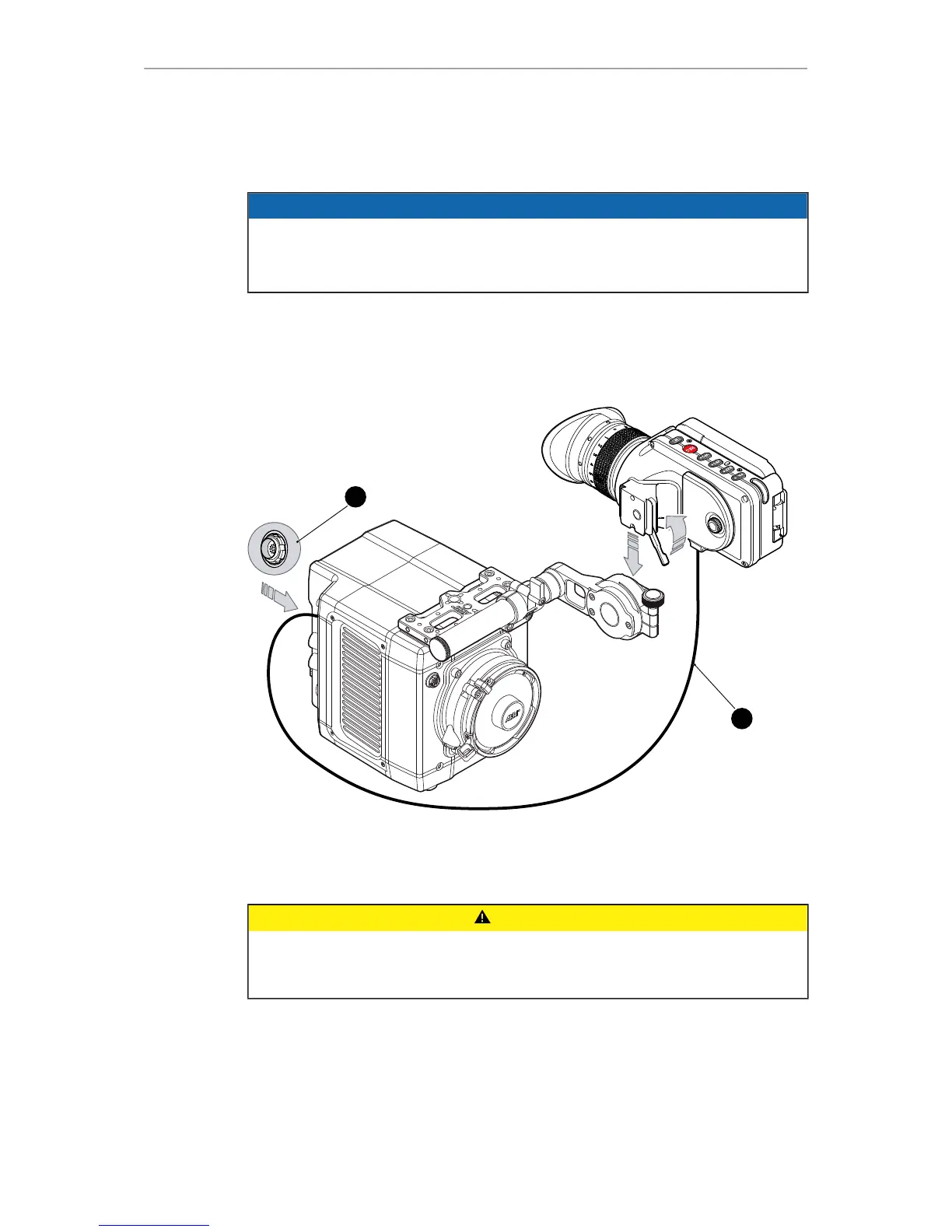

► Connect the EVF cable (1) to the camera (16-pin ODU connector (2) on the I/O
panel).
CAUTION!
Never try to connect the cable to any other connector on the camera than the
EVF connector. This may cause permanent damage to both cable and camera
connectors.
