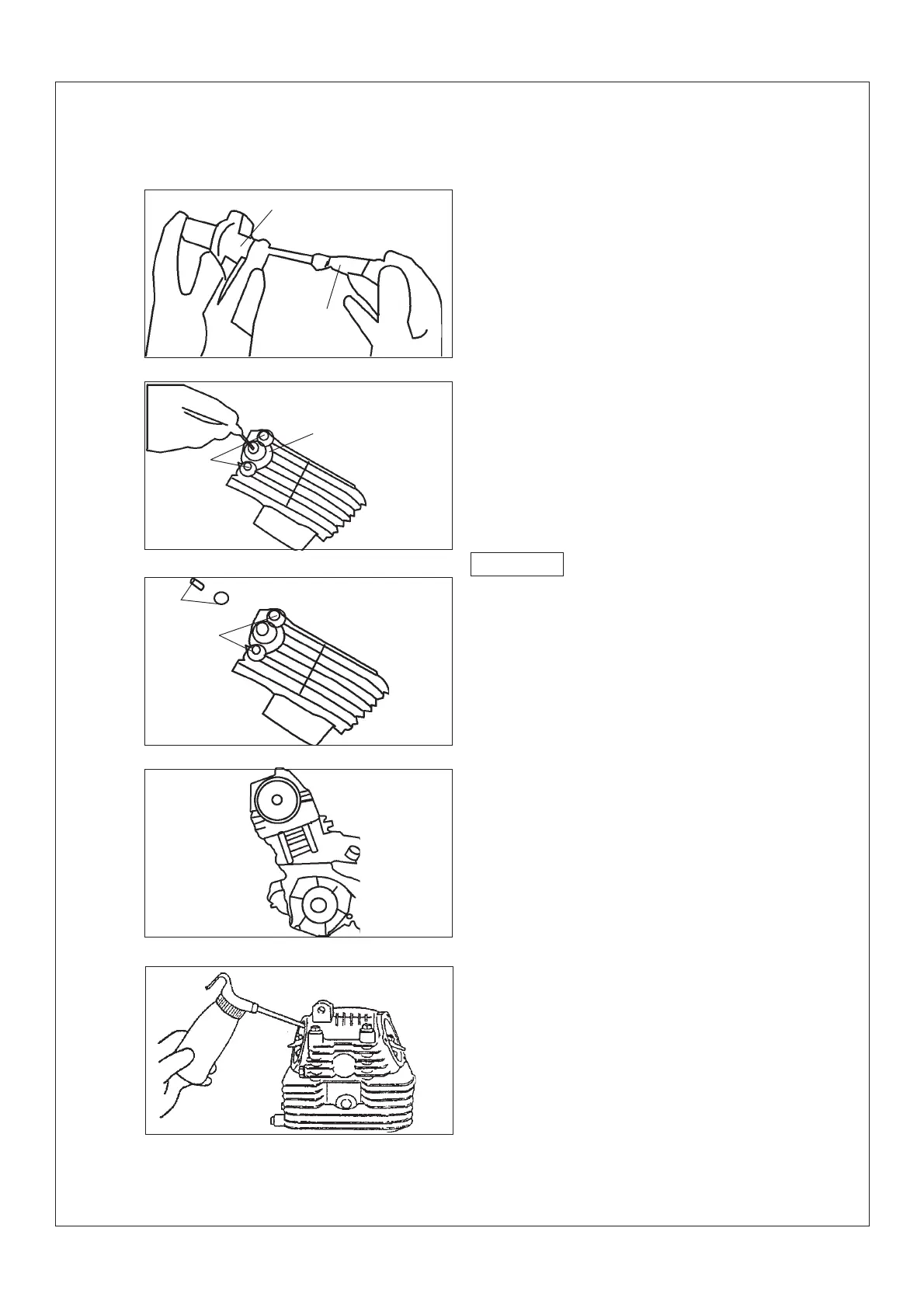

¡¤Insert the small screwdriver ¢Ûinto the
groove of tension rod, and turn the screwdriver
by clockwise, at same time to press tension
rod until the screwdriver can’t be turned.
¡¤Hold the screwdriver at this position, and
mount the tensioner assy
¢Ú (with washer) on
the cylinder, then turn the locking bolt
¢Üof
tensioner sub-assembly.
¡¤Take off the screw drive from the tensioner,
and then tighten the locking bolt of tensioner
assy.
¡¤Mount tension bolt ¢Ùwith washer.
Always use new washer.
18. Adjust:
¡¤The valve clearance
There is a valve clearance between two rocker
when the mark ¢Ûof timing
sprocket is align
with the mark ¢Üof cylinder cover.
¡¤Inlet valve clearance(cool):
0.05-0.09mm
¡¤Outlet clearance(cool):
0.11-0.15mm
19. Apply 4-stroke engine oil
(On the up side of cam shaft)
¡¤Oil quantity is 0.05L
Caution
¢Ü
¢Û
¢Ú
¢Ü
¢Ù
10Nm
- 204 -
