Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 10 Removing and installing engine
6
34

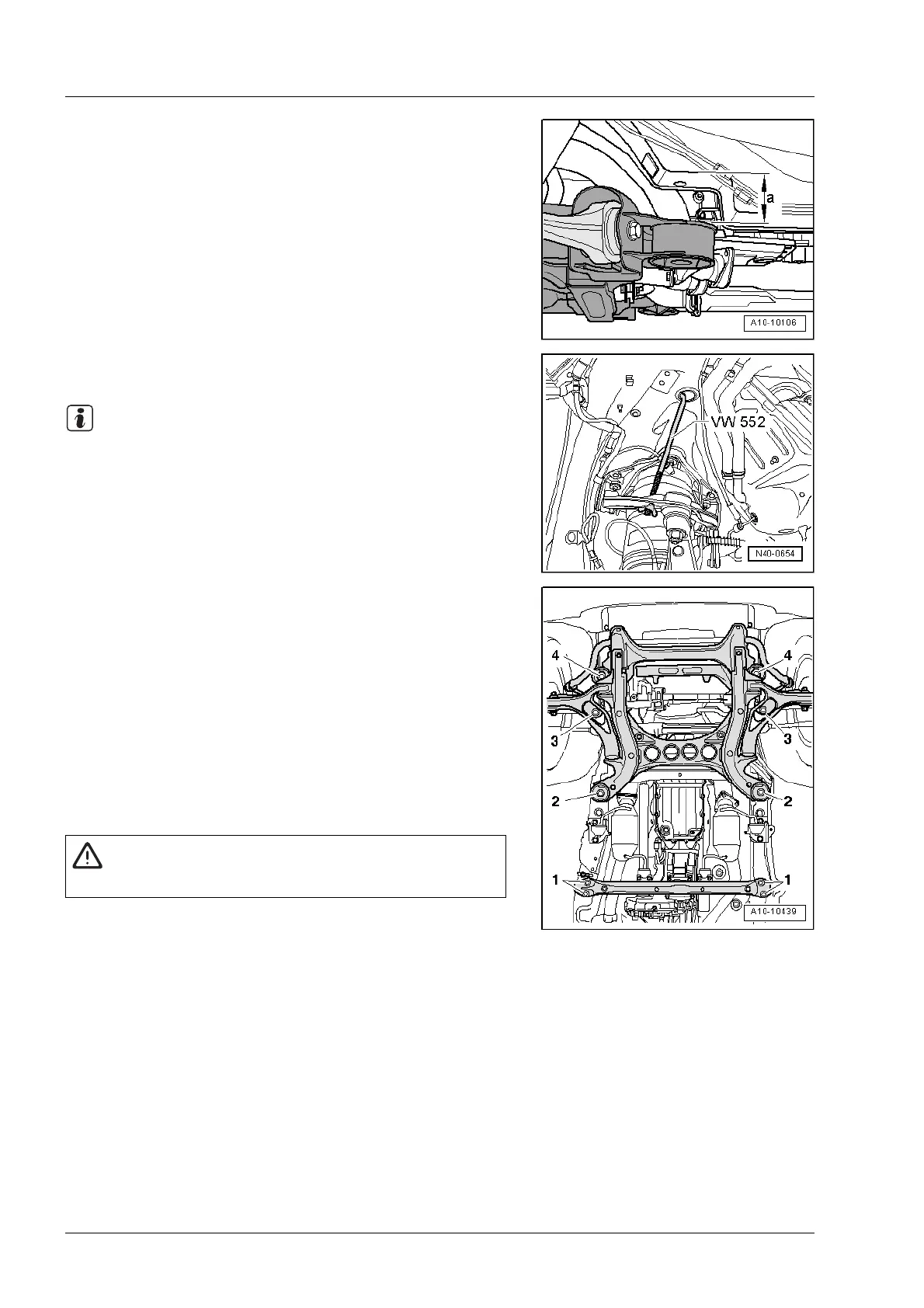

Carefully guide engine/gearbox assembly together with
subframe into the body from below as far as distance -a-
using scissor-type assembly platform -VAS 6131-.
Distance -a- = 200 mm.
Install selector lever cable and check adjustment if neces-
sary Rep. Gr. 37.
Raise engine/gearbox assembly together with subframe
further using scissor-type assembly platform -VAS 6131-.
Secure suspension struts (left and right) using spring ten-
sioner -VW 552-.
Securing the suspension struts ensures the drive shafts are
not under load when lowering scissor-type assembly platform.
Adjust the subframe, engine cross member and gearbox
carrier according to the markings made on the longitudinal
members during removal.
Tighten bolts for subframe, engine cross member and gear-
box carrier only to the specified torque (do not turn fur-
ther); tighten bolts to final setting only after performing
wheel alignment check.
1- 50 Nm
2 - 120 Nm
3 - 120 Nm
4 - 120 Nm
Remaining installation steps are carried out in reverse se-
quence; note the following:
Fit universal joint to steering box Rep. Gr. 48.
Install temperature sender before particulate filter -G506-
page 219.
Align exhaust system so it is free of stress page 217.
Secure rear propshaft to transfer box Rep. Gr. 39.
Install anti-roll bar Rep. Gr. 40.
Install brake lines Rep. Gr. 46.
Install suspension struts (coil spring) Rep. Gr. 40.
Install suspension struts (air suspension) Rep. Gr. 40
and connect air hose.
WARNING!
The vehicle must not be driven at this stage.
Note
